3-15 IM WX103-01E
1
2
3
4
5
Index
V
ewer
The alarm/marker list display’s cursors are linked with those of the waveform display and
numeric display layout screens. Alarms or marks selected with the cursor in the alarm/
mark list display can be copied to the clipboard using the Edit > Copy command.
The alarm/mark list can be converted to ASCII, Excel, or Lotus format (see section 3.7).
Alarm display limitation: One file can display a maximum of 10000 alarms.

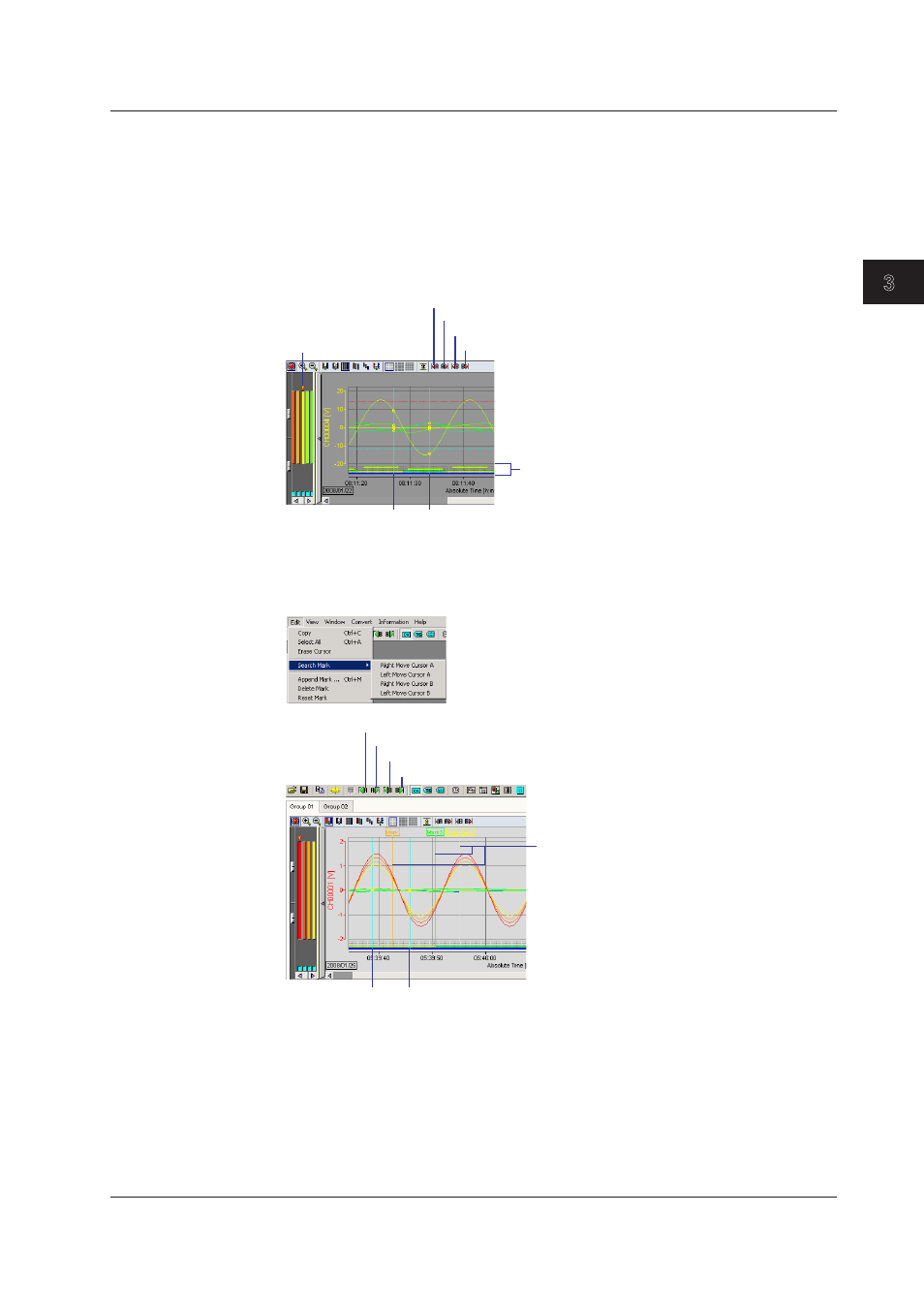

Left-to-Rght Alarm Search (Waveform Dsplay Screen Only)
Move cursor B to the next alarm change point on the left
Move cursor B to the next alarm change point on the right
Move cursor A to the next alarm change point on the right
Move cursor A to the next alarm change point on the left
Cursor A Cursor B
Alarm indication
Select the active channel
Left-to-Rght Mark Search (Waveform Dsplay Screen Only)
In the waveform display screen, move cursor A and B to the right or left side of the mark.
From the Edit menu, choose Mark Search. Or click the corresponding toolbar button.
Move cursor B to the left mark
Move cursor B to the right mark
Move cursor A to the right mark
Move cursor A to the left mark
Cursor A Cursor B
Mark
The marks added in the Monitor
screen are orange, marks added in
the computation (event function
Mark) are yellow, and those added
in the Viewer software are green.
3.2 Settng the Dsplay
