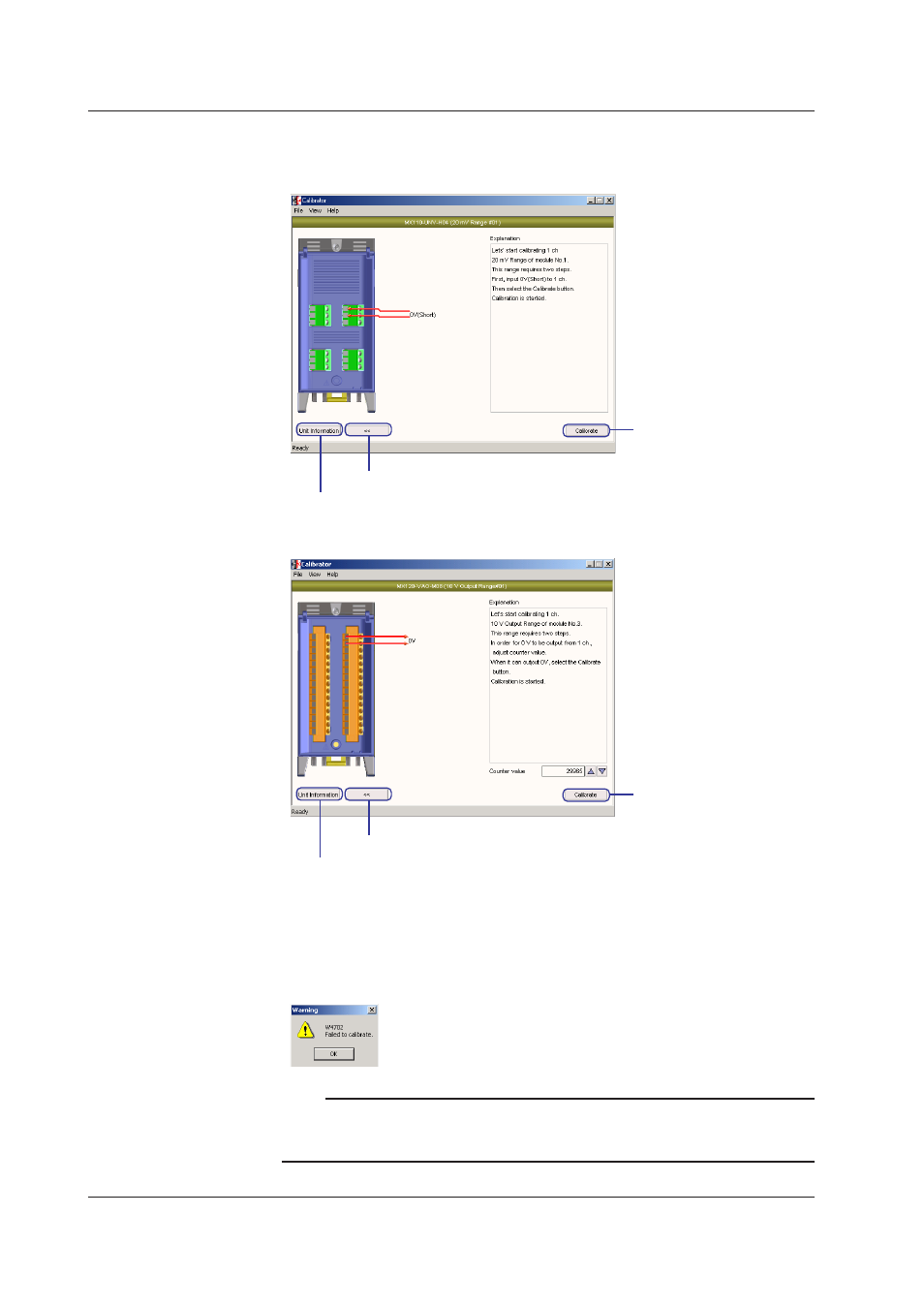

3. After making the connections according to the explanation given on the calibration
execution screen 1, click the Calbrate button.
The figure below is an example of the 4-CH, High-Speed Universal Input Module.
Start calibration
To return to the Unit Information screen
To return to the previous screen
The figure below is an example of the 8-CH, Medium-Speed Analog Output Module.
Start calibration
To return to the Unit Information screen
To return to the previous screen
When you click the Calibrate button, a message “Please wait and do not perform any
other operation.” appears.
When the calibration completes successfully, the calibration execution screen 2
appears.
If the calibration fails, a message “Failed to calibrate.” appears.
Note
For a description of the accuracy of the connected input module, the calibration accuracy,
and the environmental conditions for calibration, see the MX100 Data Acquisition Unit User’s
Manual.
