2-72 IM WX103-01E

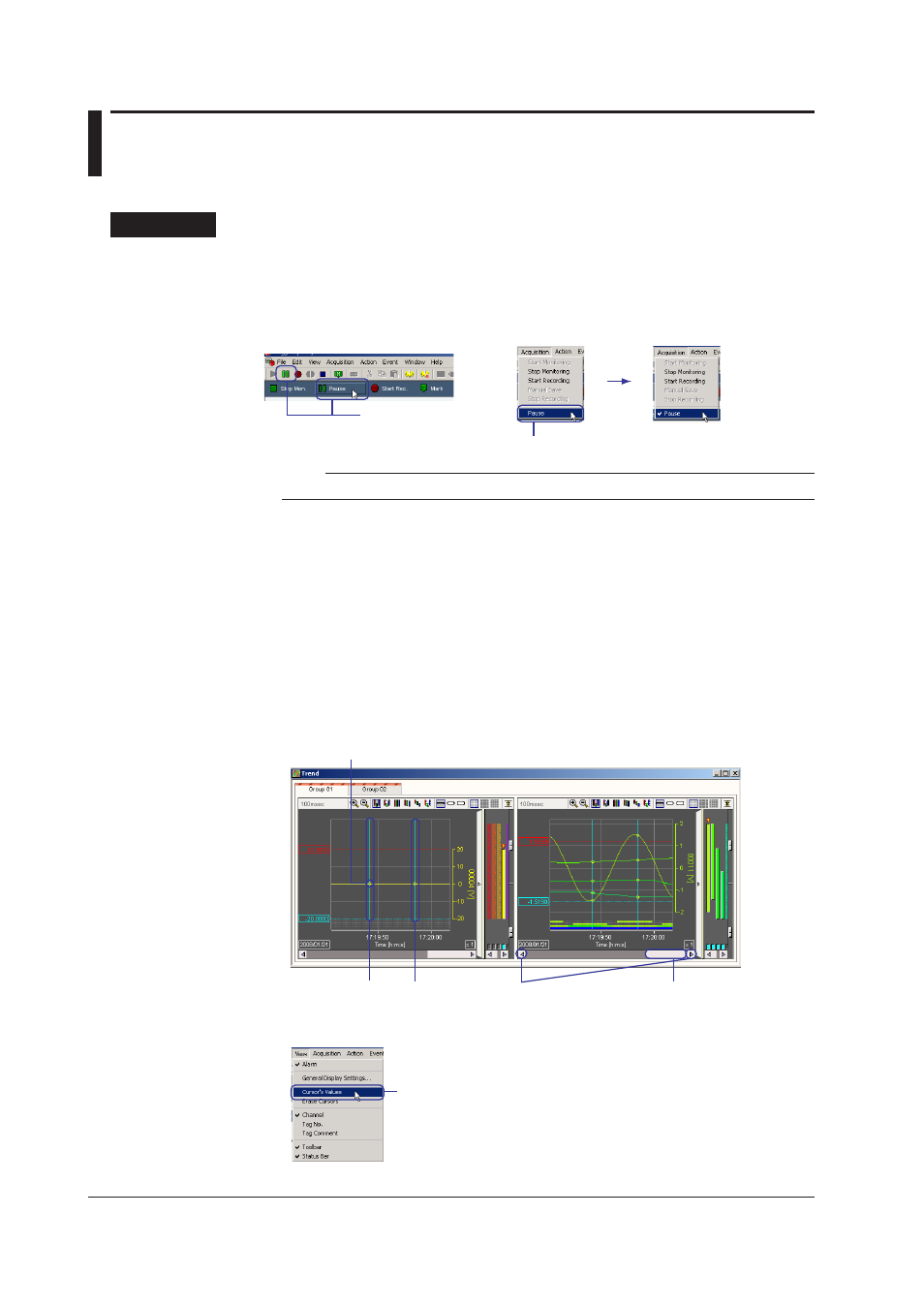

2.11 Pausng/Resumng the Updatng of the Montor
Dsplay and Readng Measured Values Usng
Cursors
Procedure
Pausng and Resumng the Updatng of the Montor Dsplay
To pause the updating of the monitor display, click the Pause button or choose Pause
from the Acquston menu. When paused, the word “Pause” on the button toggles
between red and orange.
Choose this.
or
Click either one.
Note
Recording continues even when the updating of the monitor display is paused.
To resume the monitor display, click the Pause button or choose Pause from the
Acquston menu.
Readng Measured/Computed Values Usng Cursors
1. Click the position where you wish to read the measured/computed data in the
waveform display area of the Monitor screen. If you wish to read another point
simultaneously, drag the cursor. Cursor A appears at the position where you first
clicked; Cursor B appears at the position where you released the mouse button. A
yellow circle is displayed where the waveform and the cursor cross.
You can move the waveform that is displayed in the waveform display area using the
scroll buttons or scroll bar.
Cursor A Scroll button Scroll bar
Measurement point
Cursor B
2. From the Vew menu, choose Cursor’s Values.
Choose this.
