Logger

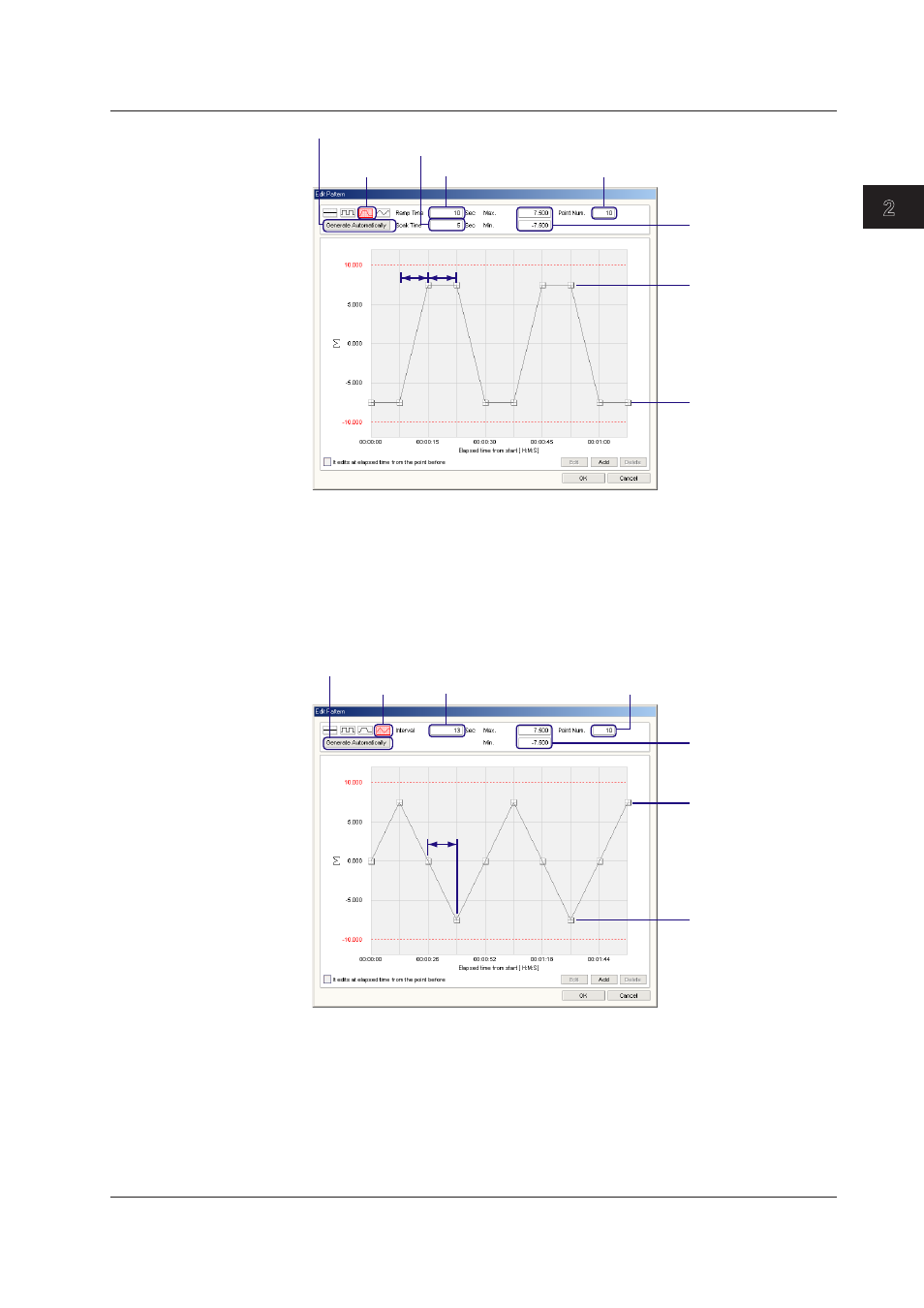

Enter the ramp time
Enter the soak time
Enter the minimum and
maximum setting value
for the pattern output
Enter the number of points Click here
Execute the “Generate Automatically” function
Minimum setting
Maximum setting
soak time ramp time
Pyramdal Waveform Output
1. Click the Pyramdal Waveform Output button.
2. Enter the time interval for the points in the Interval box.
3. Enter the maximum setting value for pattern output in the Max box. Or, enter the
minimum setting value for pattern output in the Mn box.
4. Enter the number of points in the Pont Num. box.
5. Click the Generate Automatcally button to create the pattern.
Input the interval between points
Enter the minimum and
maximum setting value
for the pattern output
Enter the number of points Click here
Execute the “Generate Automatically” function
Minimum setting
Maximum setting
Interval
2.8 Analog/PWM Output Settngs
