Explanaton
Prnted Items
To print waveforms, open the waveform display window; to print numeric values, open
the numeric display window. If multiple waveform display windows or numeric display
windows are open, click the window you wish to print.
To print cursor values or statistical computation over an area, open those windows also.
You can also print a list of alarms and marks.
Prnt Range
If you wish to print a specified range of the waveform, specify the range using cursors.
For the method of specifying the range using cursors, see the procedure in section 3.4,
“Statistical Computation over an Area of Measured/Computed Data.”
Prnted Colors of Waveforms
You can select black/white print or color print.
Prnt Groups
• On Display Only
Only the groups whose waveforms are displayed are printed.
• All Groups
All groups that can be displayed on the waveform display window are printed.
• Selected Groups

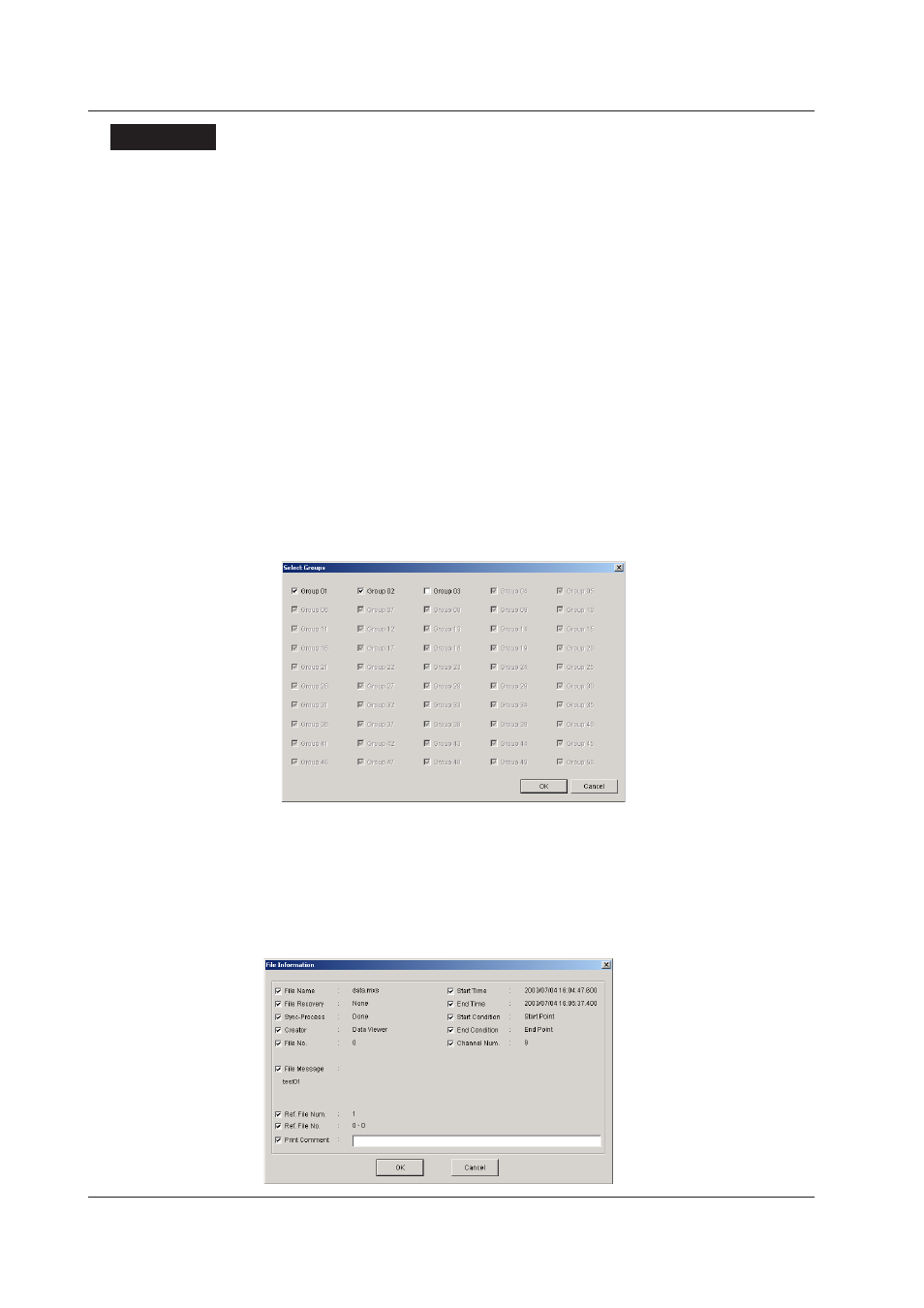

Groups selected in the dialog box that opens (see the figure below) when the Select
button is clicked are printed.
Prntng a Comment
You can enter a comment using up to 127 characters. The comment is printed in the Print
Comment column.
Prntng Fle Informaton
When you print data, the file information is also printed. You can check the file information
in the dialog box that opens by choosing About Data from the Information menu. You can
also select the items to be printed using the check boxes.
3.8 Prntng Data
