1.1
Functonal Overvew of MXLOGGER
Functonal Overvew

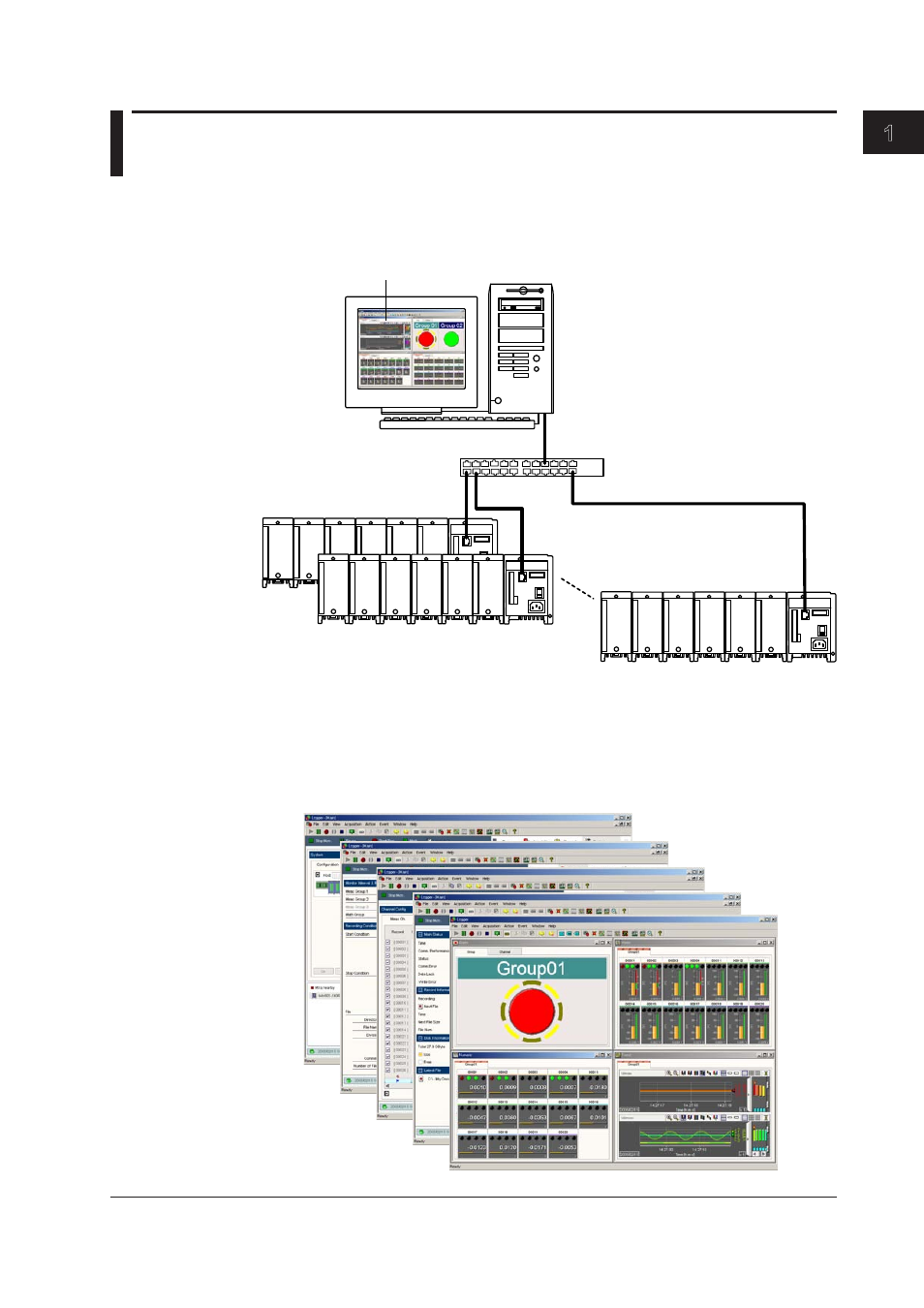

The MXLOGGER can be used to connect up to twenty MX100 Data Acquisition Units
(hereinafter, “MX100s”) to a single PC and acquire data.
MX100
MX100
MX100
Connect up
to 20 units
Hub
MX100 Data
Acquisition Unit
MXLOGGER
PC
Data acquisition : 1200ch
MATH : 240ch
Total : 1440ch
The MXLOGGER consists of the following three software programs: Logger, Viewer, and
Calibrator.
• Logger
You can use the Logger to set data record conditions and measurement conditions,
set up computations, set alarms, set digital outputs, start/stop data monitoring, display
the monitor, record (save) data, and so on.
Chapter 1
Before Usng the Software
This manual is related to the following products:
