2-74 IM WX103-01E

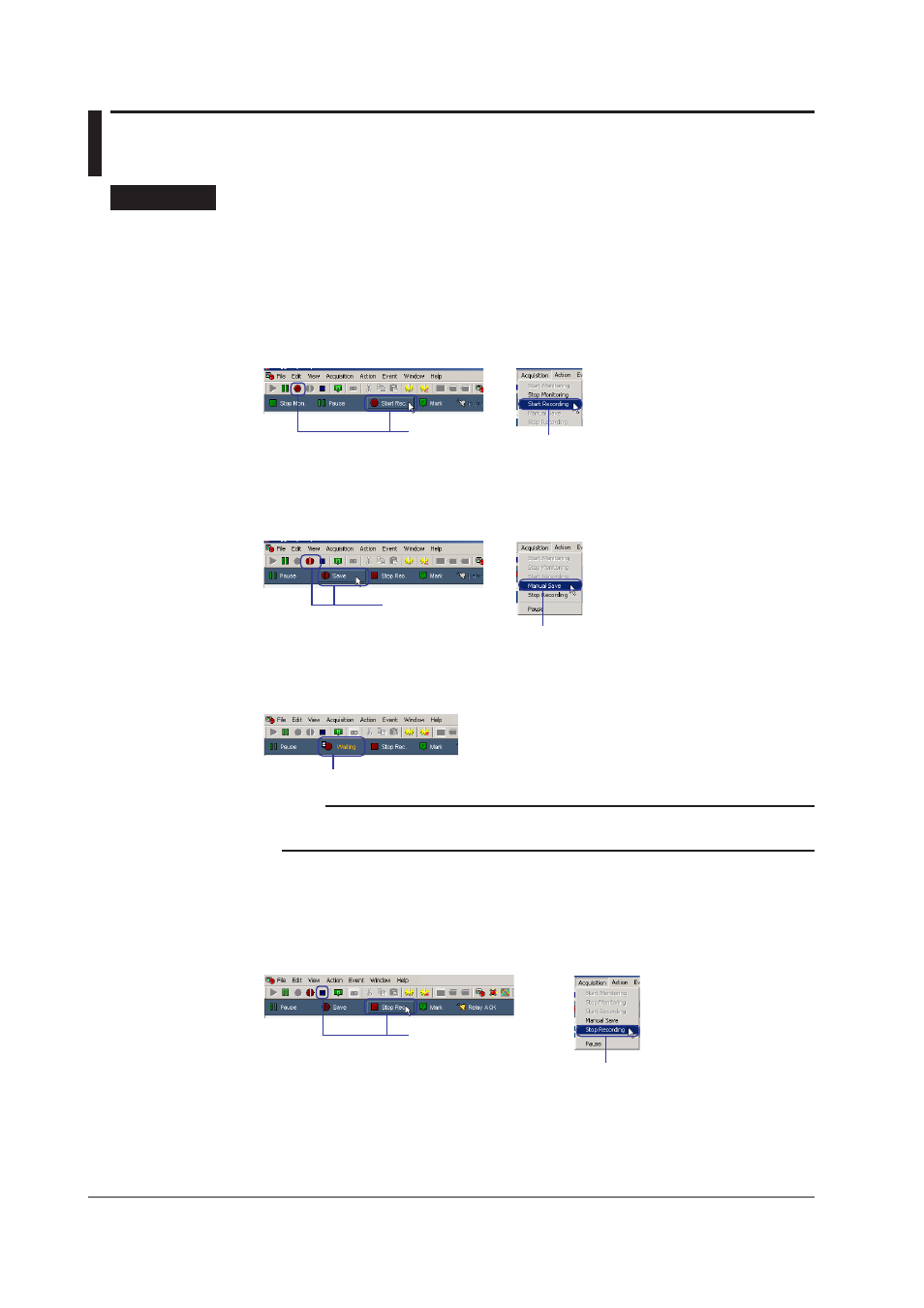

2.12 Startng and Stoppng Data Recordng
Procedure
Data monitoring must be in progress to start the recording operation. For instructions on
starting the data monitoring, see section 2.10, “Starting/Stopping Data Monitoring and
Displaying the Monitor.”
Startng the Recordng
Click the Start Recordng button, or choose Start Recordng from the Acquston
menu.
or
Choose this.
Click either one.
When recording starts, the display changes as shown in the figure below. To divide the
file during recording, click the Save button or choose Manual Save from the Acquston
menu.
or
Choose this.
Click either one.
While the Record Start Condition specified on the Acquisition Condition screen is not
met, the word “Waiting” appears on the Record Start button (see figure below).
Displays Waiting while the record start condition is not met
Note
Clicking the Start Rec. or Stop Rec. buttons repetitively at short intervals or clicking the Manual
Save button many times may hinder the measurement operation and file division process.
Stoppng the Recordng
To stop recording when Stop Condition specified on the Acquisition screen is set to
Continuous or before the Stop Condition is met, click the Stop Rec. button or choose
Stop Recordng from the Acquston menu.
or
Choose this.
Click either one.
