Overvew of Operatons
This section briefly explains the operations to be carried out after “Start the Logger”
described in the “Flow of Operations during Installation” on the previous page.
Note
For details on other operations, see the referred sections in this manual or other manuals
indicated in “Flow of Operations during Installation.”
Before carrying out the procedure below, connect the PC and the MX100s locally via a
hub and turn ON the power to the MX100s that are to monitor the data as indicated on
page 1-1.

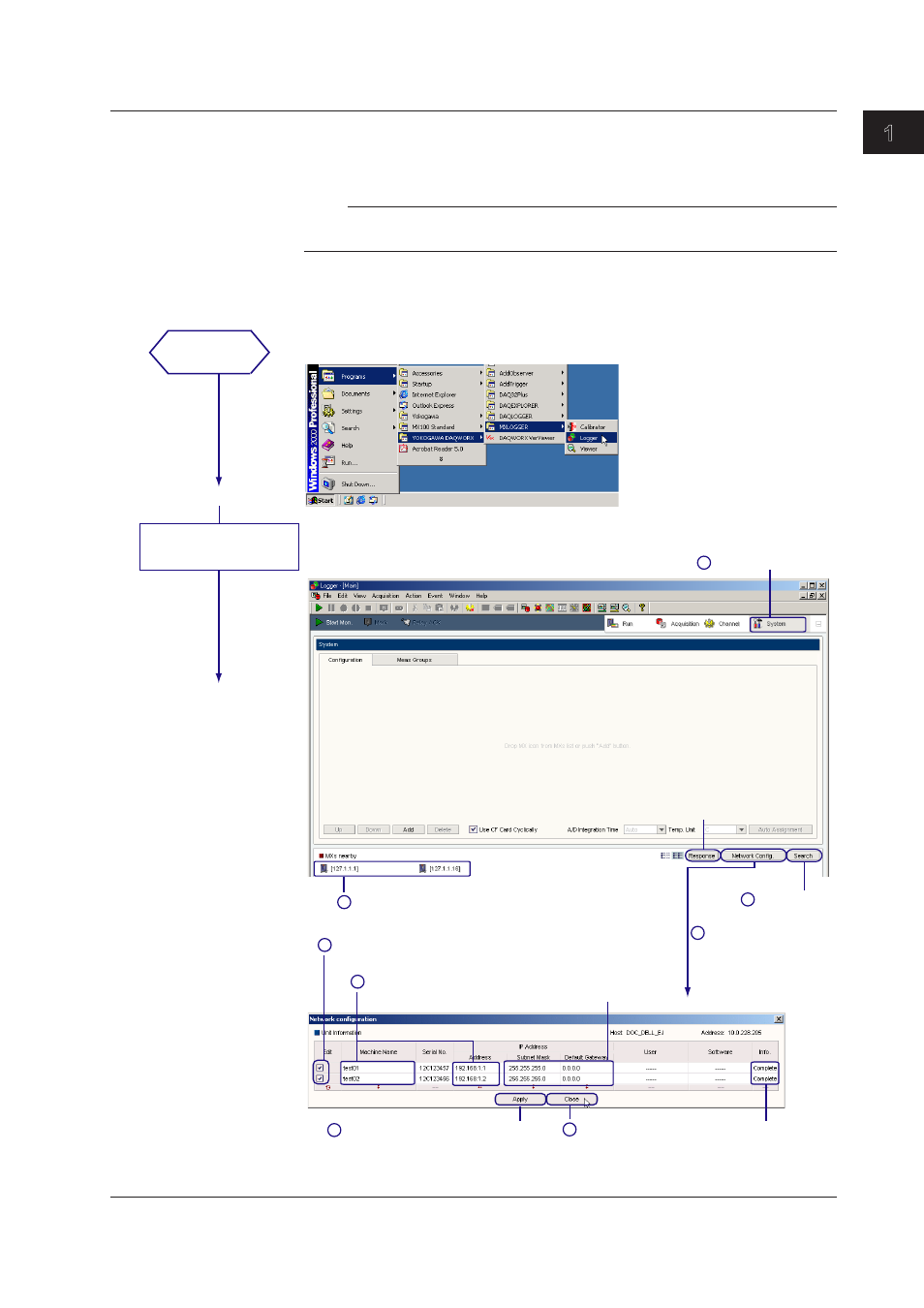

Choose Programs > YOKOGAWA DAQWORX > MXLOGGER > Logger.
The Logger starts and the main window opens. Start the Logger
For details, see
section 1.5.
5 Select the check boxes for the MX100s whose
network settings you wish to change.
Enter the machine name and
IP address.
Default settings can be
used for local connection.
6
7 Click Apply button. Click OK in
the dialog box that opens.
8 When the network configuration
is successful, Complete appears.
Click Close.
System screen of the Main window
Search the MX100/
configure the network
For details, see
section 2.1.
1 Click here.
2 Click Search.
To identify MX100s
Click Network Config.
The Network Config.
dialog box opens.
4
3 Displays the MX100s that are connected in the
same segment.
