Yokogawa DAQWORX - Manual (Page 57)

2-27 IM WX103-01E
1
2
3
4
5
Index
Logger

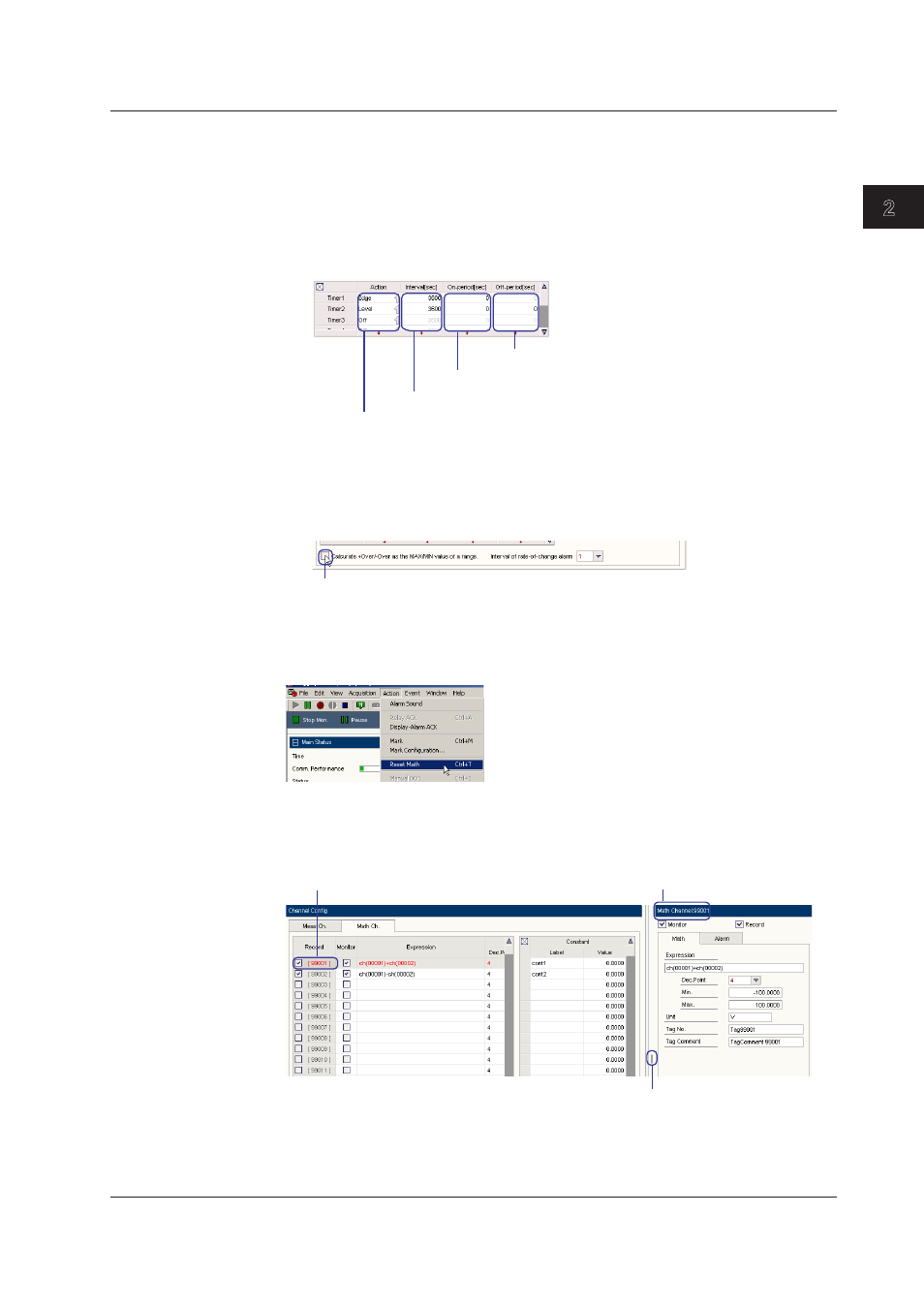

Settng Tmers (Only When Usng Tmers n the Computatons)
7. Click Acton of a timer and select Edge or Level.
When not using the timer, select Off (default).
8. Click the Interval box, and enter the interval.
9. If Action was set to Edge, click the On-period box and enter the time interval over
which the timer is to be turned ON. If Action was set to Level, click the On-period or
Off-period box and enter the time over which the timer is turned ON or OFF.
If Action is set to Level, enter the time when the timer is to turn OFF.
If Action is set to Edge or Level, enter the time when the timer is to turn ON.
Set the timer interval
To use a timer in the computation, select Edge or Level
When not using the timer, select Off (default).
When Calculatng ±Overrange Values of Measurement Channels as the Maxmum
or Mnmum Value of the Measurement Range
10. Select the Calculate +Over/–Over as the MAX/MIN value of a range check box.
Check here to calculate +Over and –Over as maximum and minimum values
of the measurement range (see the explanation in this section, “Setting Computations”).
Resettng Computaton
From the Acton menu, choose Reset Math.
When Settng Computatons for Each Channel Indvdually
Click a desired channel number and enter the settings in the area on the right to set the
computation.
Math channel to be configured
Click here to show or hide the Math Channel area
Click the channel number to be configured
2.5 Settng Computatons (Settng the Computaton Channels)
