2-40 IM WX103-01E

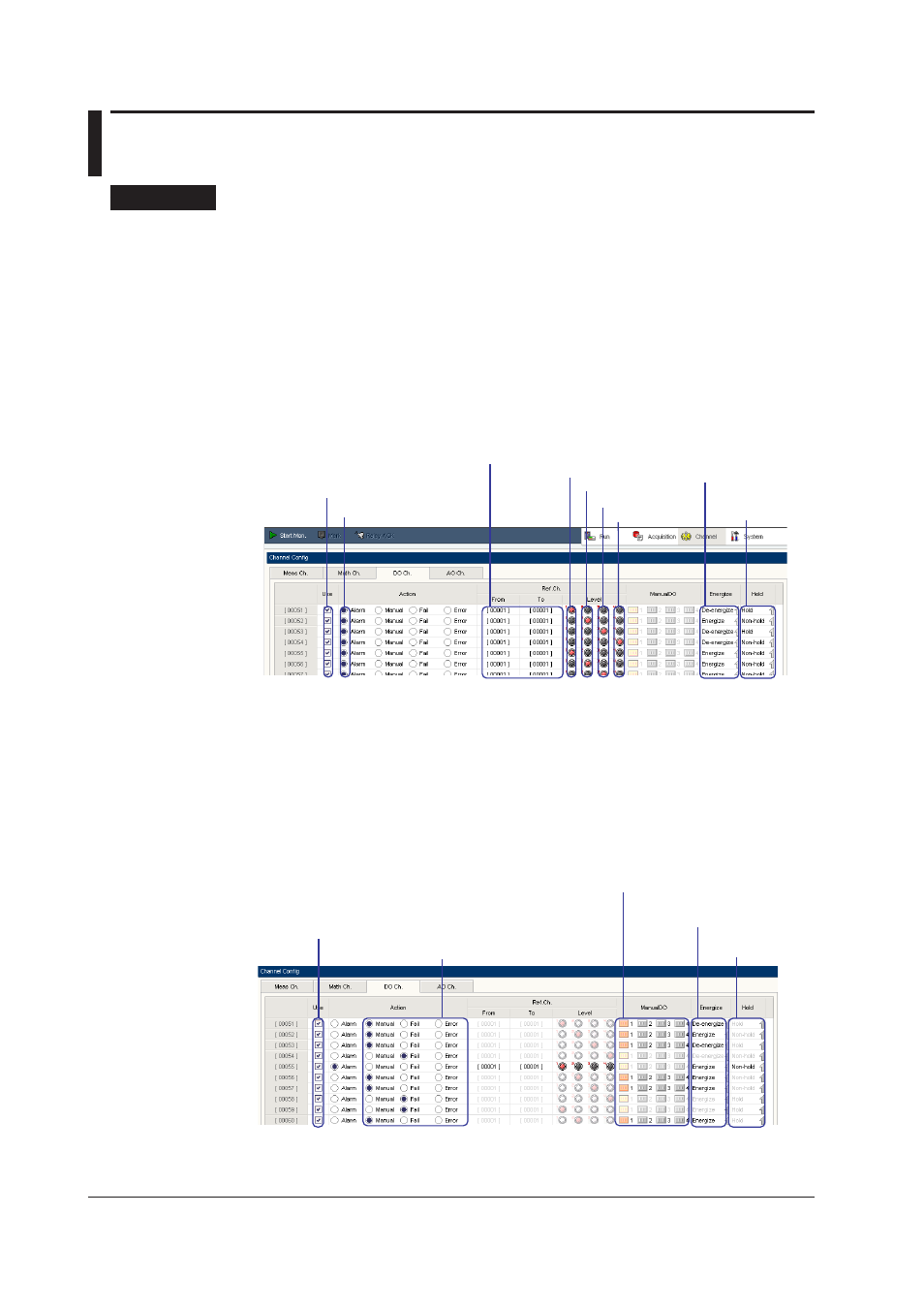

2.7 Dgtal Output
Procedure
1. Click Channel. The Channel setup screen appears.
2. Click the DO Ch tab.
3. Select the Use check boxes for the DO channels you wish to output.
Settng the Dgtal Output of Alarms
4. Click the Alarm button under Acton.
5. Click From or To under Ref. Ch. and then enter the range of reference measurement
channel numbers or math channel numbers of the alarm output.
6. Click the Level 1 button or the Level 2 button or both under Ref. Ch..
7. Click the Energze box to select the output relay action, energize or de-energize.
8. Click the Hold box to select the output relay behavior, hold or non-hold.
Alarm reference channel range
Select output or not output
(Select the check box to select output)
Alarm 1 reference
Select the alarm
Alarm 2 reference
Alarm 3 reference
Alarm 4 reference
Select hold/non-hold
of output relay
Select energize/de-energize
of output relay
Settng the Dgtal Output Other Than Alarms
4. Click the option button under Acton to select the action used as the digital output
source.
5. If you set Action to Manual, click any of the Manual DO buttons 1 to 4.
6. If you set Action to Manual or Error, click the Energze box to select the output relay
action, energize or de-energize.
7. If you set Action to Error, click the Hold box to select the output relay behavior, hold
or non-hold.
Select the source action
Select output or not output
(Select the check box to select output)
Select hold/non-hold of
output relay
Select energize/de-energize of
output relay
If Action is set to Manual, click any button from 1 to 4.
