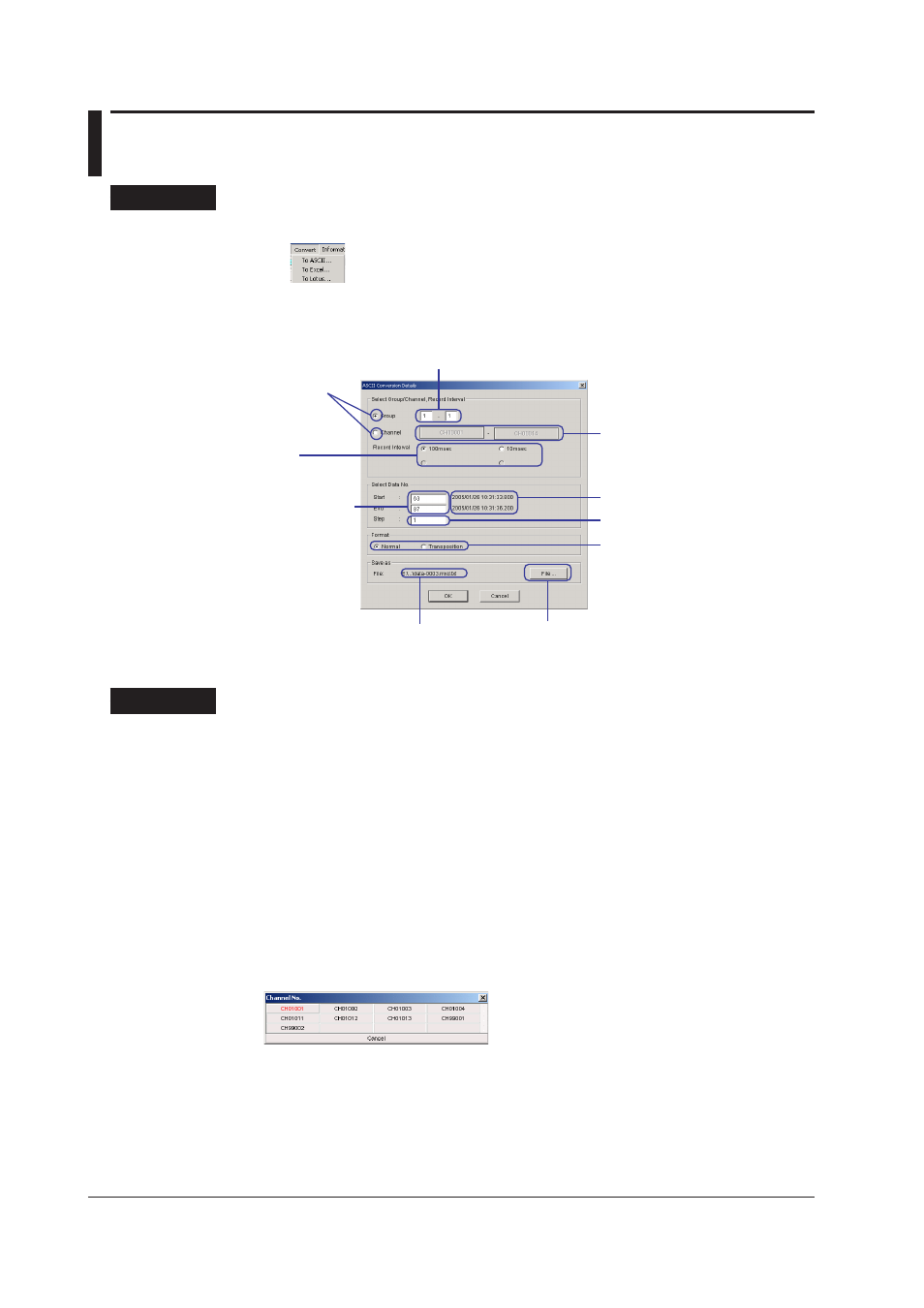

3.7 Convertng Data Formats
Procedure
1. From the Convert menu, choose To ASCII, To Excel, or To Lotus.
2. After entering required settings in the dialog box that opens, click OK.
The file is created at the specified destination.
Enter the range of group numbers to be converted
Select whether to set the range
to be converted using groups
or channels
Select the range of channels to be converted
Click to open the selection dialog box.
Select the record interval
Only the channels with the selected
record interval are converted
Enter the data range to be converted
Can be specified using cursors before
opening this dialog box
Displays the time of the specified data
When changing the save destination or file name
Click to open the save destination and file name setup
dialog box.
Step when saving data at certain intervals
Select normal/trans position for the format
used for data conversion
Displays the save destination and file name
Explanaton
Convertble Data Formats
• ASCII
Text data with each data point separated by a comma. The extension is .txt.
• Excel
Data that can be opened using Microsoft’s spreadsheet application Excel version 8.0
(Excel97) or later. The extension is .xls.
• Lotus
Data that can be read using IBM’s Lotus 1-2-3 spreadsheet program version 2.0 or
later. The extension is .wj2.
Converted Data
Specify the range using group numbers or channel numbers. You can select the channel
number by clicking in the dialog box as shown below.
If multiple recording intervals exist in the data to be converted, select the recording
interval. Only the data of the channels having the selected record interval is converted.
