3-8 IM WX103-01E
Explanaton

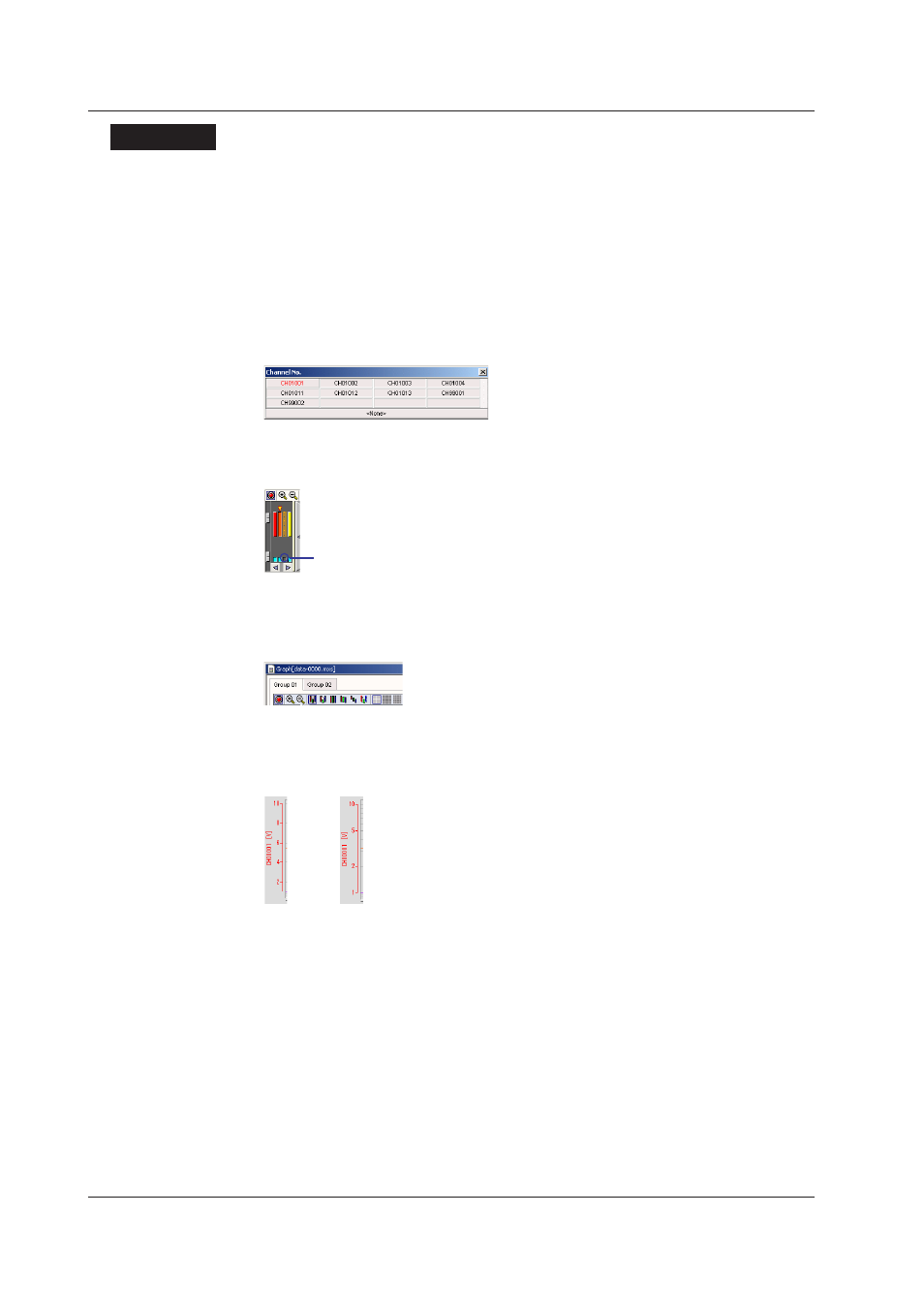

Dsplay Groups and Group Names
The values of each channel that are loaded are divided into groups that were used during
recording and displayed using waveforms or numeric values. The measured/computed
values can be divided into up to 50 groups. Up to 32 channels can be registered to a
single group. If you click the channel selection button on the General Display Settings
window, the Channel No. dialog box opens (see the figure below). The labels used to
identify the waveforms can be set to tag numbers or tag comments in addition to channel
number on the View menu. The selected label type (channel number, tag number, or tag
comment) is used in the Channel No. dialog box. Select , if you are not assigning
a channel.
To turn ON/OFF the trend waveform display on the waveform display window, click the
button below the active channel switch bar as shown in the figure below.
Hide the waveform
The name assigned to each group can be changed using up to 30 characters. The
names of the display groups that have channels registered are displayed on the
waveform display window or numeric display window.
Y-Axs Type
You can select linear or logarithmic Y-axis for displaying the waveforms.
Linear Logarithmic
3.2 Settng the Dsplay
