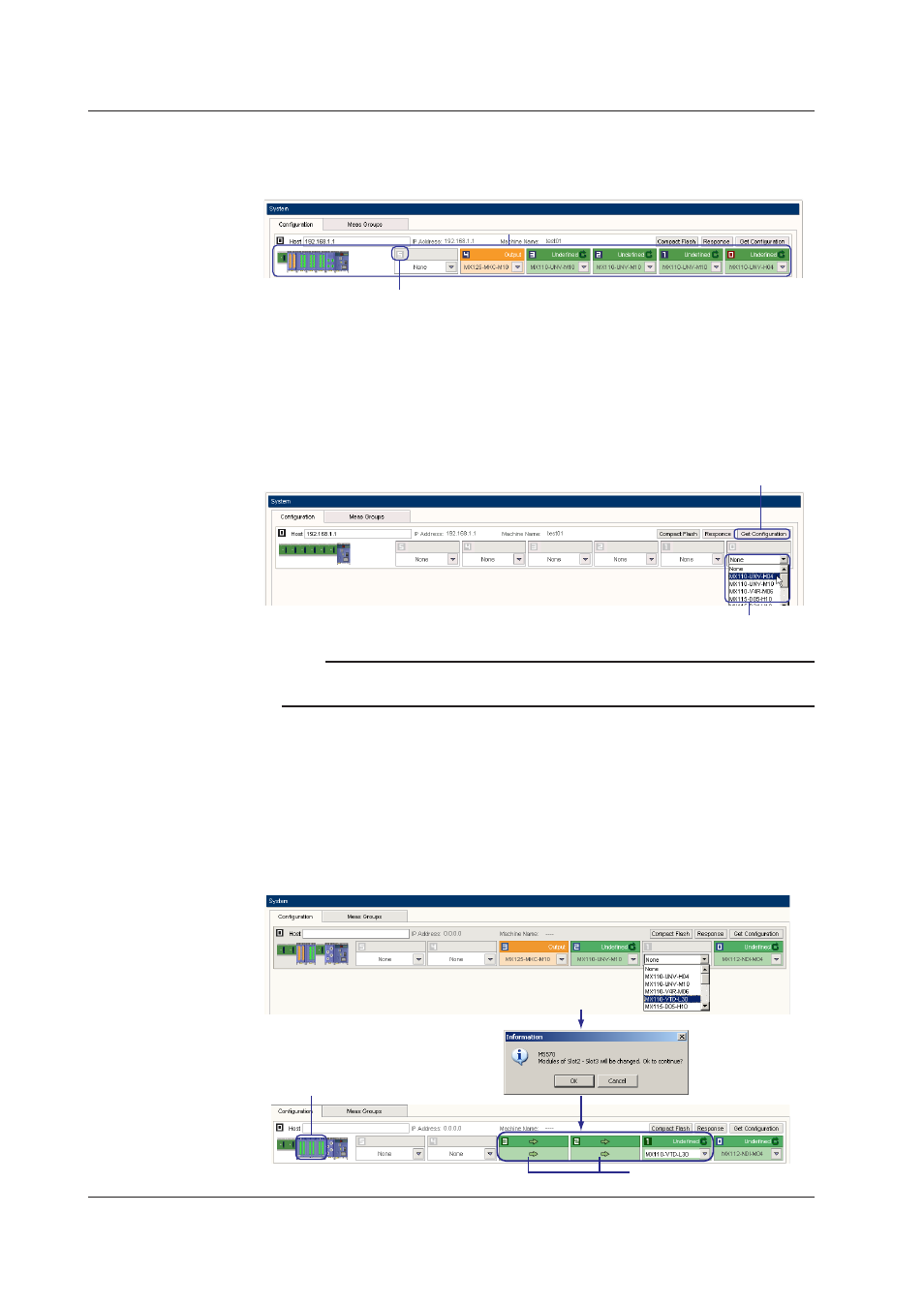

Retrevng/Settng Module Confguraton Informaton
If the MX100 is connected to the network and is not being used by another user, the
module information is automatically retrieved when you drag and drop the MX100 icon.
Module configuration
Slot number (see the MX100 Data Acquisition Unit User's Manual)
Red and blue indicate that a module with a minimum measurement interval of 10 ms and a module
with a minimum interval of 100 ms are installed, respectively.
If the MX100 is being used by another user and you drag the MX100 icon, the module
configuration is not retrieved. In this case, you select the modules by slots using the
module selection list box. If the other user releases the connection after you have
dragged and dropped the MX100 icon, you can click the Get Information button to
retrieve the module configuration.
If another user drops the connection with this MX100, you can click here to retrieve the module configuration.
If the target MX100 is being used by another user, select the module by slots from here.
Note
For instructions on configuring a system using MX100s that are not connected, see “Configuring
a System Using MX100s That Are Not Connected” in this section.
Structure Tab Slots When Selectng the VTD 30-CH Module
One unit of the VTD 30-CH module requires three slots worth of space when installing
on the base plate. When you select the VTD 30-CH module (MX110-VTD-L30) in the
structure tab, two slots to the left are occupied by the VTD 30-CH module. If another
module already exists on the left, a message, “Modules of Slot□ - Slot□ will be changed.
Ok to continue?” appears. Click OK to change to the VTD 30-CH module. You cannot
select the VTD 30-CH module if there are not two available slots to the left of the slot
where the module is installed.
Click OK to change
On slot 1 to the left where the module is selected, if you
select the VTD 30-CH module, a dialog box is displayed.
Slots 2 and 3 cannot be selected
Changes to the VTD 30-CH module
2.2 Confgurng the System
