2-70 IM WX103-01E

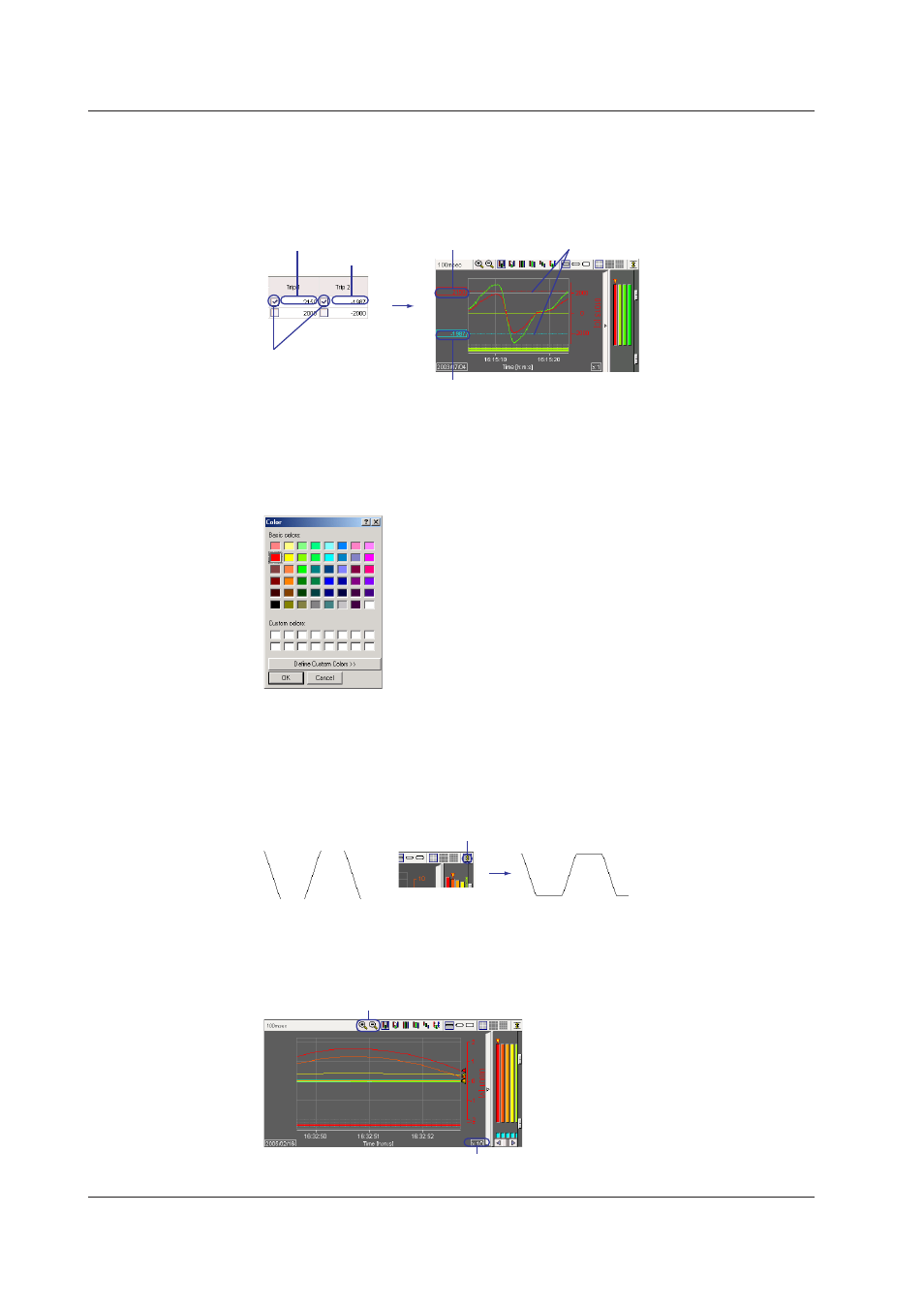

Trp Ponts
You can display a trip line to indicate a particular value of interest (trip point) in the
waveform display area. Two trip points (trip 1 is red, trip 2 is blue) can be set on each
waveform. The trip line of the waveform corresponding to the left-most Y-axis is shown in
the waveform display area.
Turn ON the trip line display
Trip 1 value
Trip 2 value Trip line Trip 1 value
Trip 2 value
Channel Colors
Clicking the channel color displayed in the Color column on the General Display Settings
window opens the Color dialog box. You can select the color of each channel using the
Color dialog box. To create custom colors, click the Define Custom Colors button in the
Color dialog box.
Clppng of Waveforms
By default (clip OFF), the waveform is not displayed when the measured/computed value
exceeds the minimum/maximum value of the scale (see the lower left figure). When clip
is turned ON, values that are smaller than the minimum value of the scale are displayed
as the minimum value and the values that are larger than the maximum value of the
scale are displayed as the maximum value.
Clip OFF Clip ON
Expandng or Reducng the Tme Axs on the Waveform Dsplay
On the waveform display, you can click the expand/reduce icon to expand or reduce
the time axis for each waveform display area. The maximum magnification is x20. The
minimum magnification varies depending on the size of the waveform display area.
Magnification
Time axis expand/reduce icon
2.10 Startng/Stoppng Data Montorng and Dsplayng the Montor
