Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
and Additional Settings.
6.7 Recording Options - Events
If you have selected Event Trigger mode under the General tab in the
Recording Options screen, you may now select specific Bluetooth events
using the Events tab on the Recording Option Screen. You can also use the
Actions tab to define specific event sequences that will trigger Merlin II to
record a Bluetooth session.
In addition, the Events and Actions screens allow you to specify which
packets you want to include or exclude from the recording.
• Click the Events tab on the Recording Options screen.

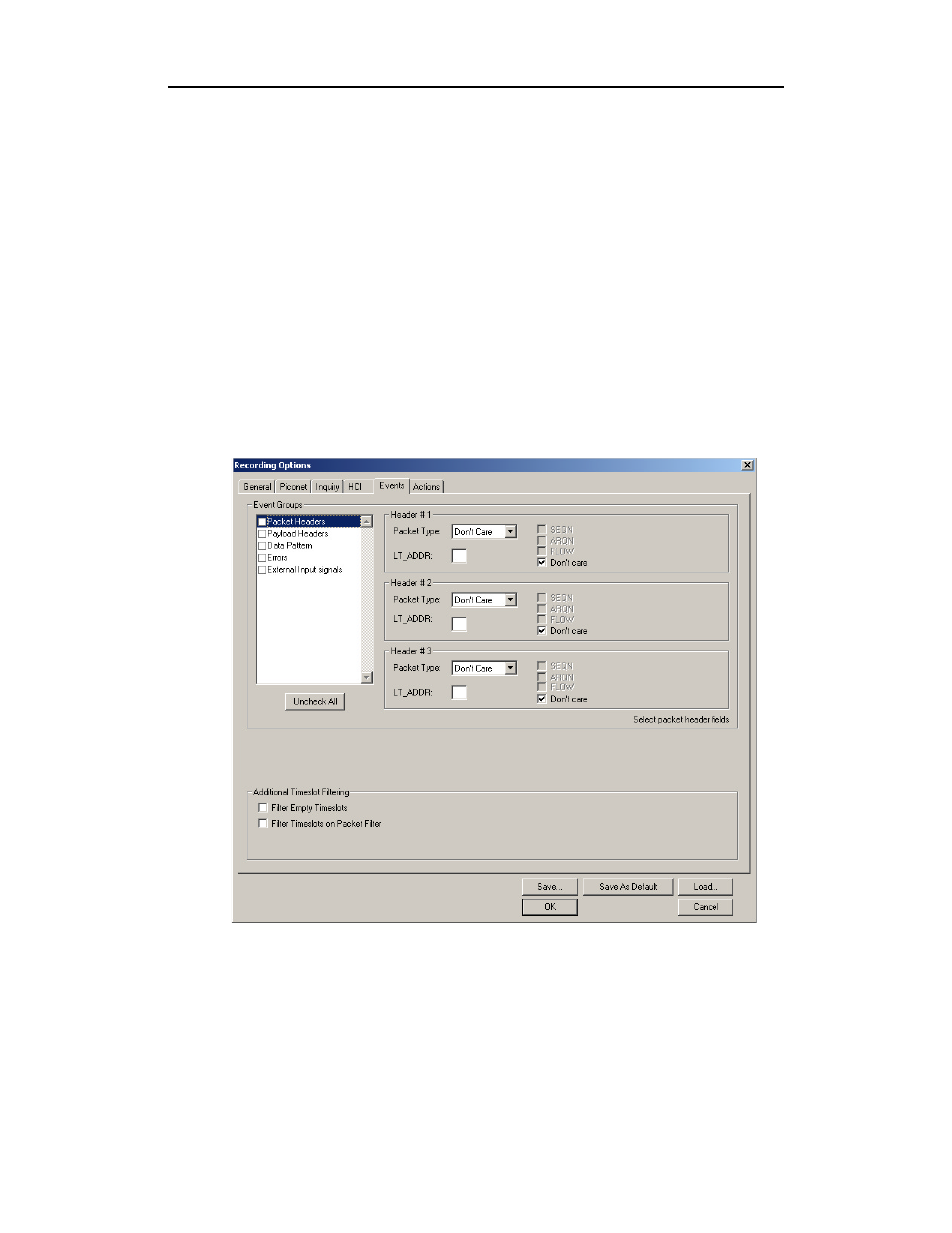

You see the Event Groups window:
The Event triggering and filtering options allow you to set event conditions
for errors and/or a variety of packet characteristics.
Clicking a check box causes further options to display in the right side of the
window.
