Hiding Packets, Messages, and Protocols

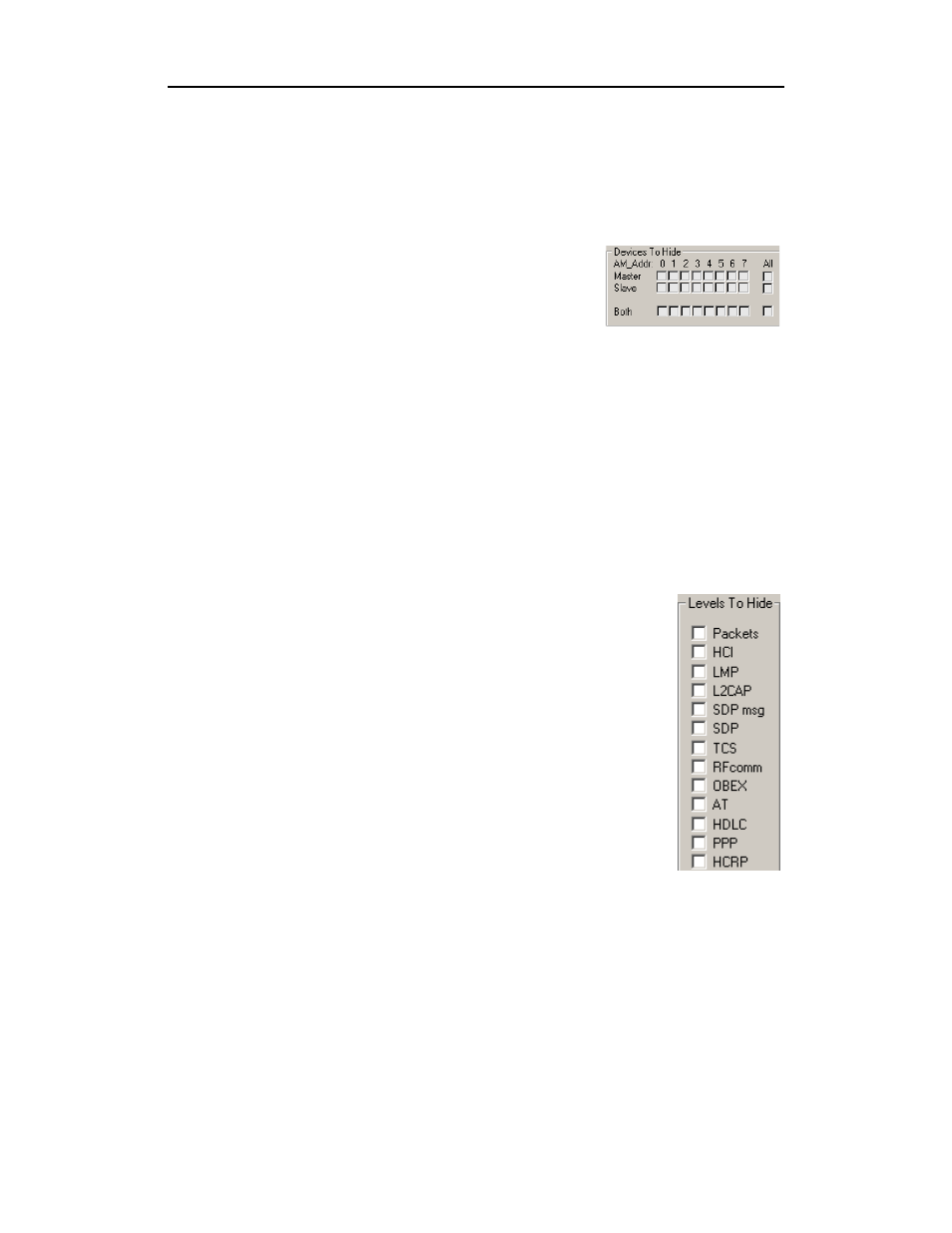

The "Hide Packets and Transactions" box contains two grids of checkboxes
for hiding whole packets, messages, protocols, and traffic from individual
devices. The grids are labeled "Devices to Hide" and "Levels to Hide".
Devices to Hide
The "Devices to Hide" grid lets you hide traffic
according to device address. The grid divides into
columns which represent different devices.
Columns labeled "0" through "7" and "All" represent the Active Member
Address of a device. By checking one of the boxes in a column, you hide
the traffic of the selected device (or traffic from all devices if you have
selected All.)
The row in which you place your checkmark determines whether you are
hiding traffic going to or from a device.
• Master - Hide traffic from a Master to selected Slaves
• Slave - Hide traffic from selected Slaves to the Master
• Both - Hide all traffic between the Master and selected Slave
Example: to hide all traffic from a Master to a Slave device
with an address of six, click the checkbox under column 6
on the row marked Master.
Please note that you can also use the drop-down menu on
the "Hide Devices" button to hide or expose devices.
Levels to Hide
The "Levels to Hide" grid divides into rows which represent
the different packet, message, and protocol levels. Clicking
a checkbox will cause Merlin II to hide all traffic of a
selected level.
