11.2 Device List

Device List describes devices discovered in a previous inquiry or devices
entered by the user.

You open Device List by selecting View > Device List.

The list is stored in a file that is updated from one session to the next.

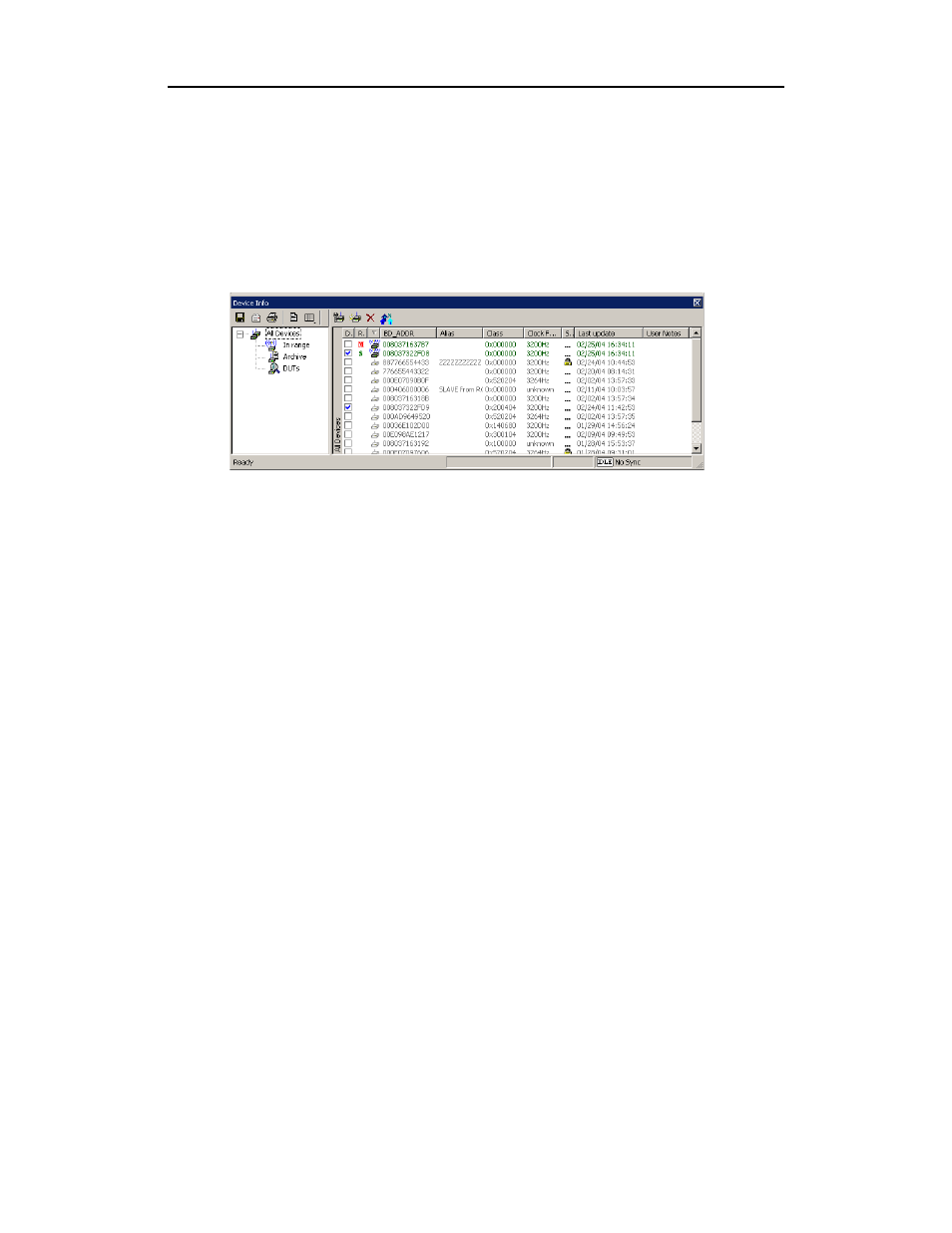

By default, Device List appears at the bottom of the Merlin II window.

Importing Device Lists

You can import information about devices that already exist in the Device
List or are not listed through the Import Device List command.

To import a Device List, run the command
File > Import > Device List, then select a Device List file from the dialog.

Device Lists can be imported from any PC running a CATC Bluetooth
analyzer. While in the Import Device List dialog box, you can browse to
any PC on your network. If the PC has a CATC Bluetooth analyzer
attached, the Device List can be loaded.

Device Lists are created automatically by Merlin II during its operation and
stored in the CATC\Shared directory (for example, C:\Program
Files\CATC\Shared).

Fields in the Device List

DUT -- Device(s) Under Test. Presents checkboxes for identifying
devices you want to appear in a separate Device List window. This
option is useful if the Device List has large numbers of entries and
you only wish to work with a sub-set of the list. To see how it
works, select a few DUT boxes, then click on the the DUT branch
on the left side of the window. A copy of the Device List window
will open showing only the selected devices.

RO -- Identifies the Master and Slave devices selected in the
Recording Options dialog box. Selected entries appear as M
(Master) or S (Slave).
