Merlin II Protocol Analyzer User’s Manual

CATC

SW Version 2.50

Step 3

Enter your comment.

Step 4

Click OK.

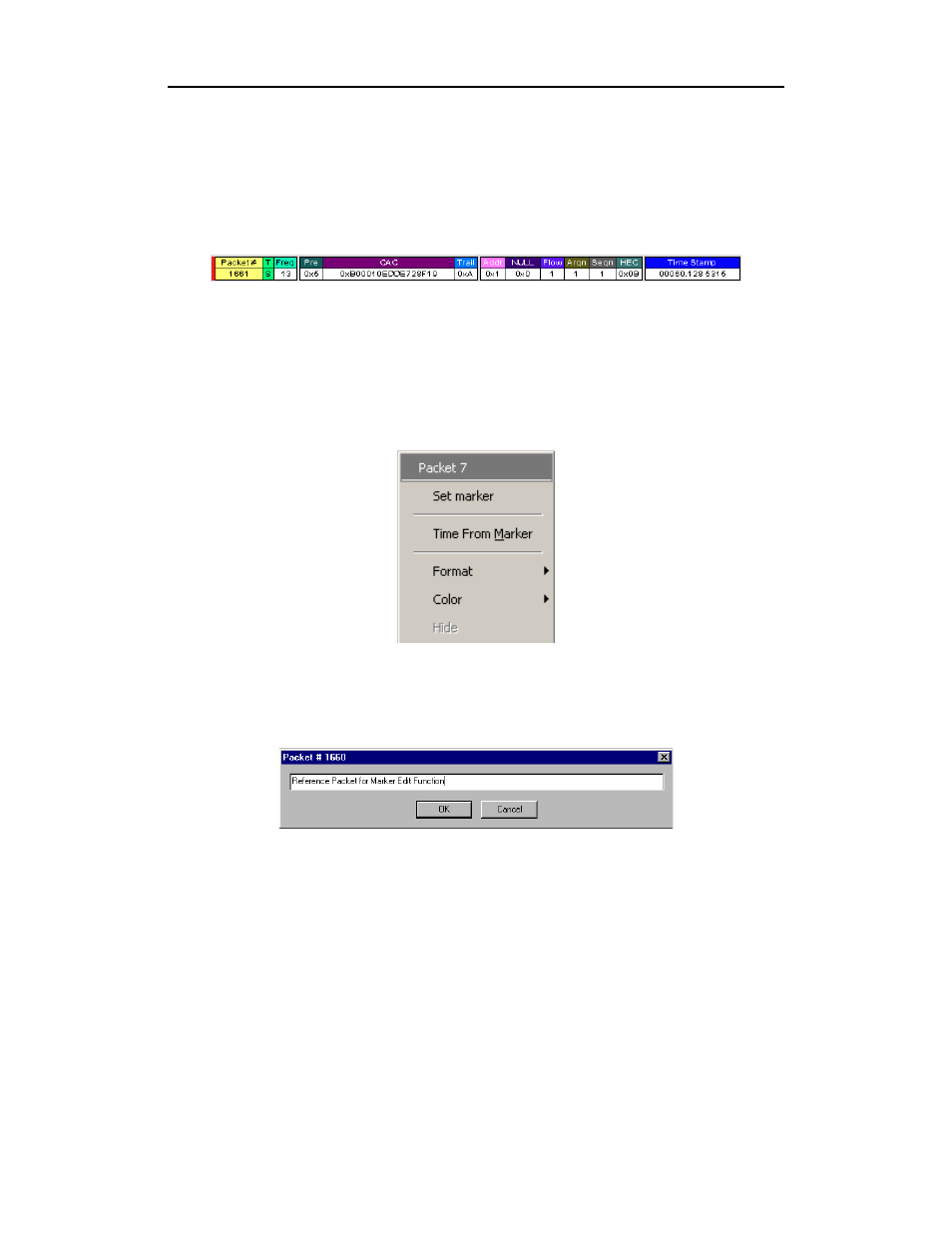

A marked packet is indicated by a vertical red bar along the left edge of the
packet # block:

8.6 Edit or Clear Marker

To clear or edit the comments associated with a packet marker,

Step 1

Left-click on Packet # for the chosen packet.

You see the Packet menu:

To edit the Marker Comment,

Step 2

Select Edit marker.

You see the Edit marker comment window:

Step 3

Edit the comment as desired.

Step 4

Click OK.

To clear a Marker,

Step 5

Click Clear marker.

The vertical red Marker bar disappears.
