112

Merlin II Protocol Analyzer User’s Manual

CATC

SW Version 2.50

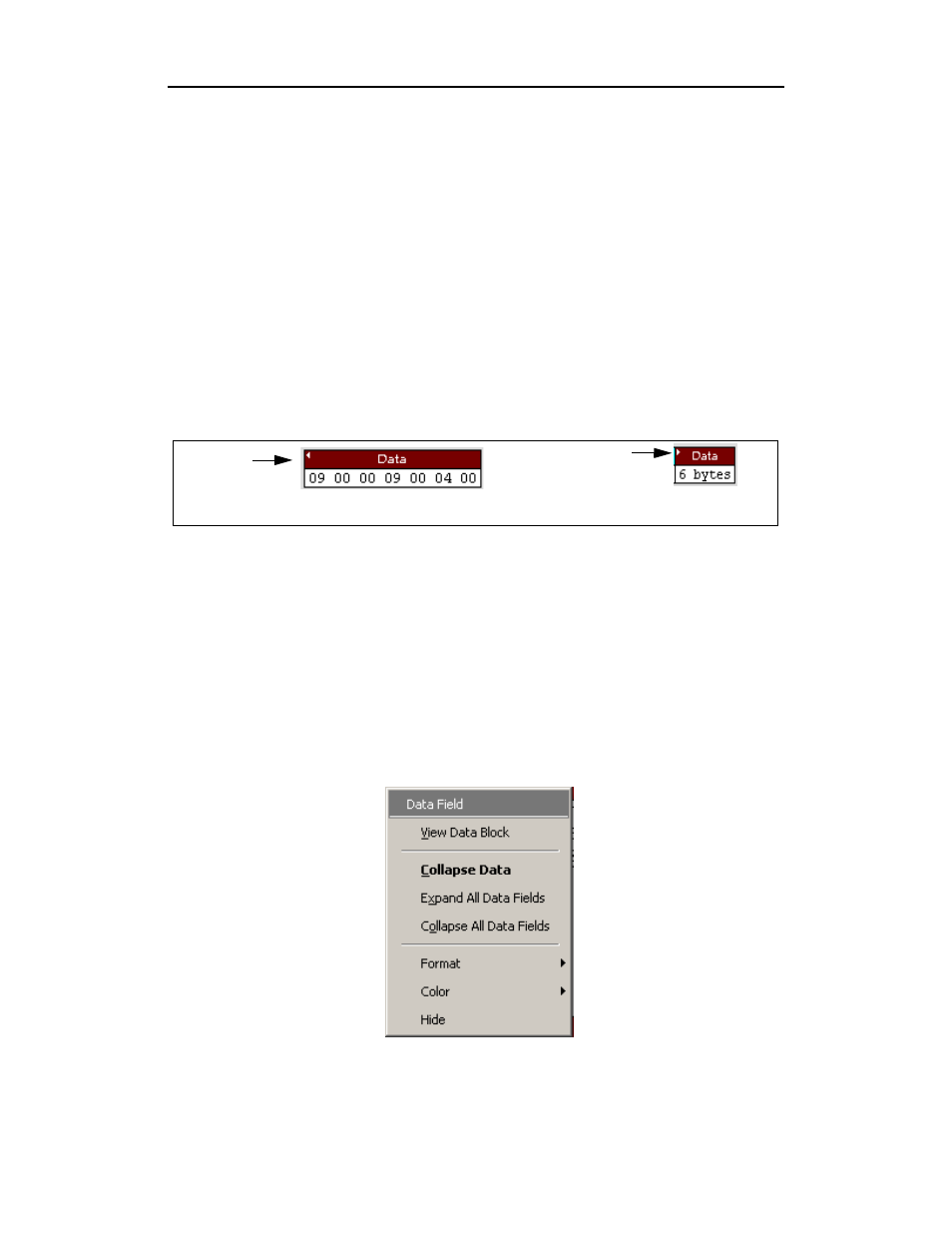

8.9 Expanded and Collapsed Data Formats

The data field can be expanded to display greater detail or collapsed to a
compact view. The Expand/Collapse Data feature operates as a toggle.
There are three ways to toggle between the two views.

Double-Clicking

You can expand or collapse a Data field by double-clicking anywhere in the
Data field of a packet.

Left-clicking a Field Arrow

Many fields have small arrows in the top left corner. If you left-click this
arrow, the field will toggle back and forth between collapsed and expanded
views.

If you click and hold down the left mouse button on one of these arrows, you
can collapse or expand the field for ALL packets, messages or protocols.

Using the Shortcut Menu

If you left-click on a Data field, a menu will open for expanding or
collapsing data fields.

Step 1

Left-click on Data in the Data packet you want to expand or
collapse.

If your Data Trace View is currently expanded, you see the Collapse
Data
menu:

data

the field

Left-facing
field arrow
will collapse

Expanded Data

Right-facing
arrow will
expand data

Collapsed
