18
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
Step 3 Click Yes.
The update process begins.

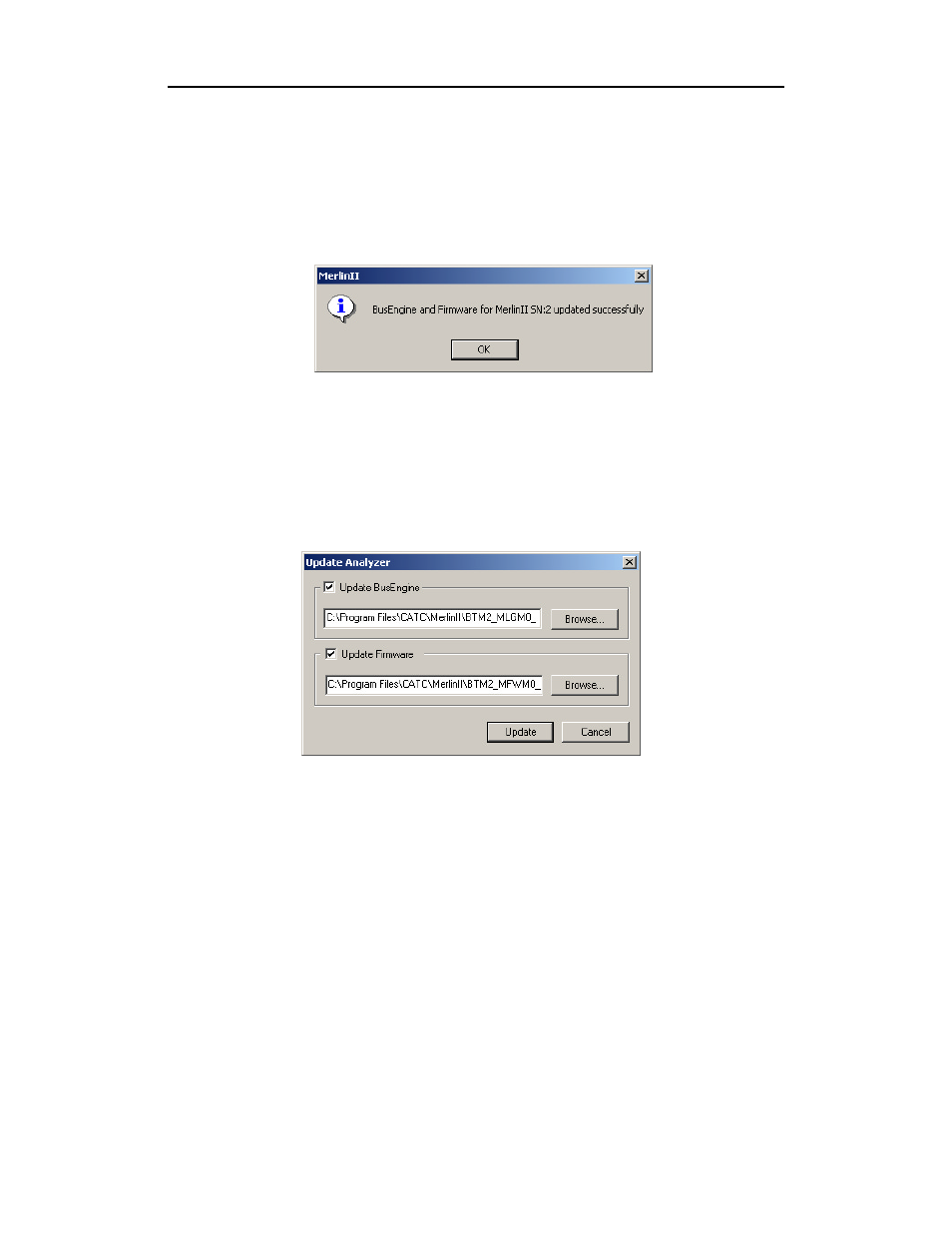

When the update has finished, a message such as the following
appears and tells you that the update is complete. The example
below follows a BusEngine update.
Step 4 Click OK.
Manual Updates
If you prefer, you can manually update the Firmware, and/or BusEngine
through the 'Analyzer Setup' dialog. To do this follow these steps:
Step 1 Select from the menu: Setup > Update BE/FW ....
The Update Analyzer dialog box opens.
Step 2 Select the one of the entity that you want to update from the list.
Step 3 If needed, browse to the application directory to locate the Update
files.
Step 4 Click the Update button.
At this time, the application would start the update process. A
progress bar in the dialog would show the progress of the update
process.
Please note that in some cases this process can take several minutes
to complete.
Step 5 When a the application notifies that the update process is done, you
may need to cycle the analyzer's power to cause the program to take
effect, or you may need to unplug and then reconnect the USB cable
