11
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
Step 3 Select Install Software from the installation CD and follow the
on-screen installation instructions.
The Merlin II application will install on the PC hard disk.
Step 4 To start the application, launch the CATC Merlin II program from
the Start Menu: Start>Programs>CATC>Merlin II.
The Merlin II program opens.

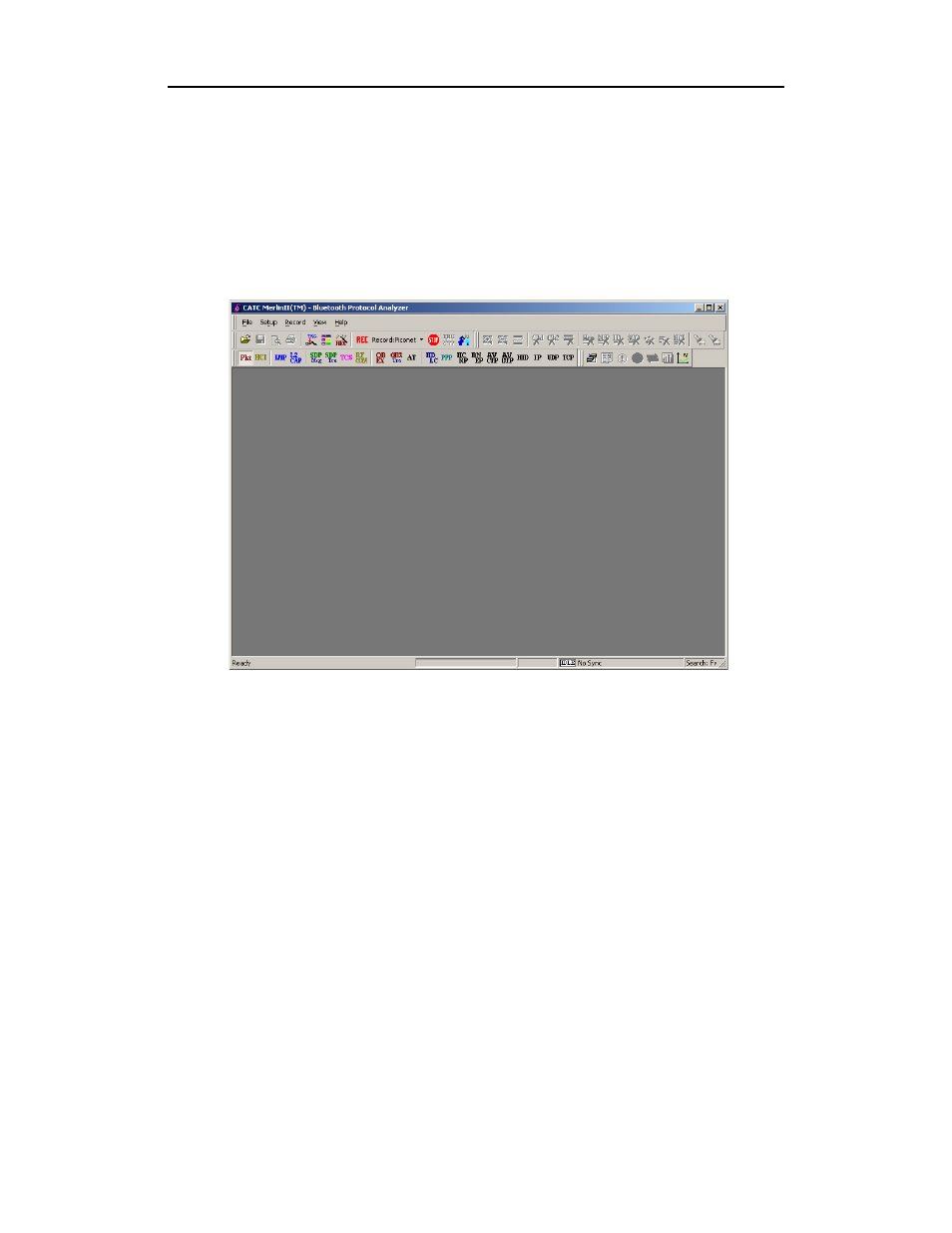

The window shows a menu bar and toolbar at the top, a grey trace viewing
area covering most of the window, and a status bar at the bottom.
Opening a sample trace will cause most of the buttons on the toolbar to
become active.
