The window presents six buttons for saving, printing, stopping, starting and
customizing the log.
Customize Log

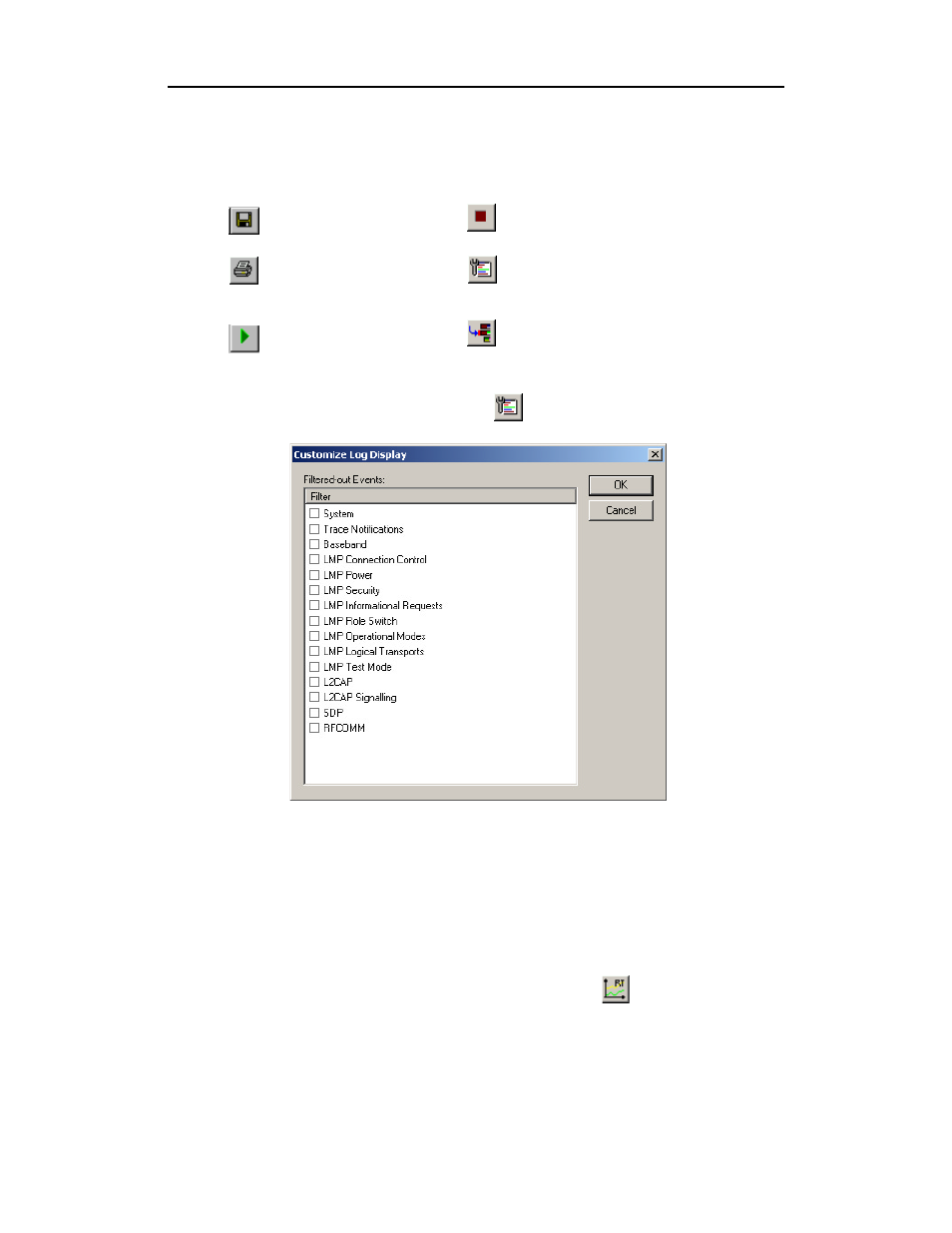

Clicking the Customize Log button opens a dialog box for selecting the
fields displayed in the log.
11.7 Real-Time Statistics
The Real-Time Statistics window displays a graph of real-time link activity.
Real Time Statistics displays a summary of the traffic currently being
recorded by the analyzer.
To display the Real-Time Statistics window, click in the Tool Bar.
Save As - Saves log to a file.
Stop log.
Print - Prints the open log
file.
Customize Log. Customizes the types of
information being displayed in the log.
Start log.
Insert Marker in trace during a recording.
