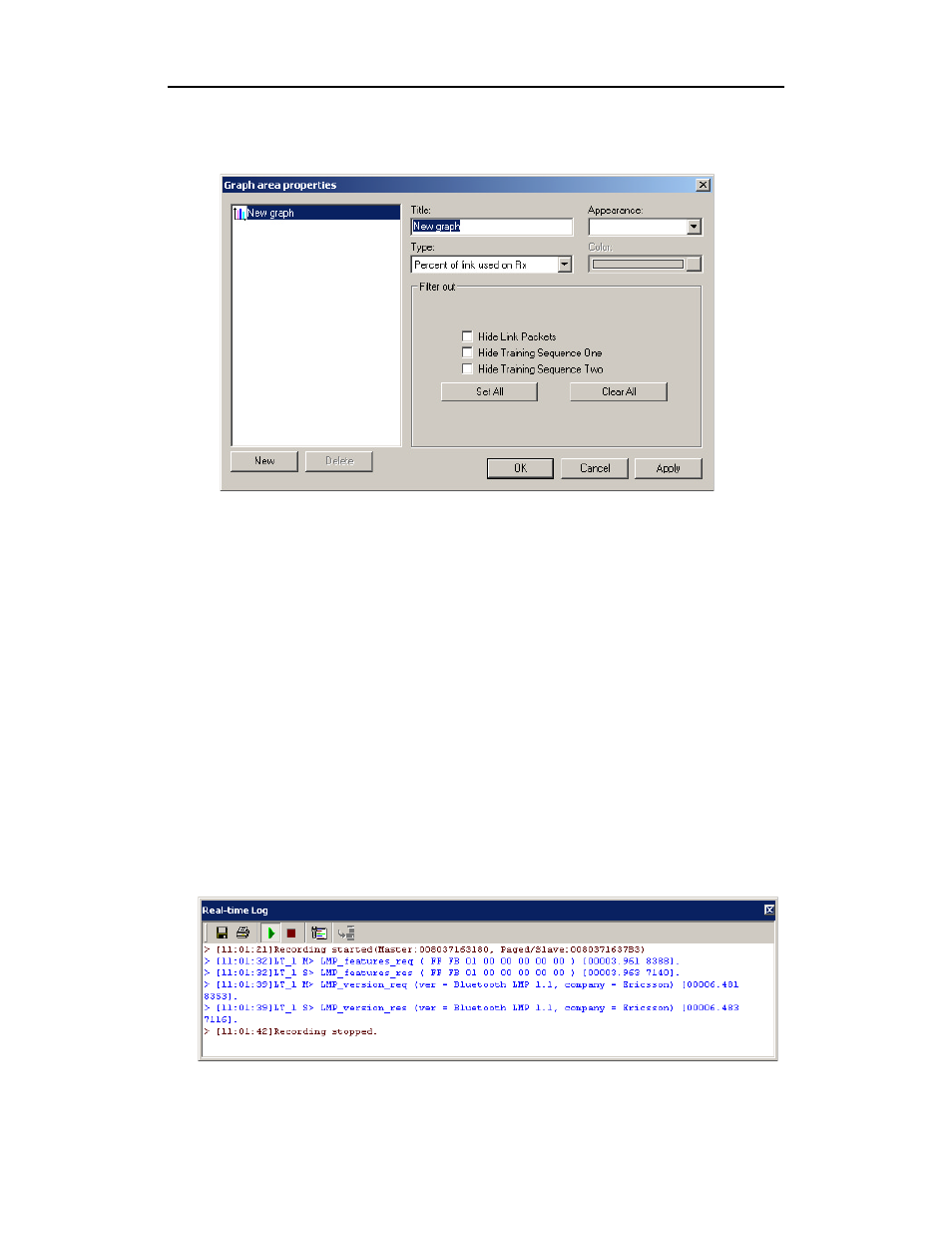

The following dialog box will open. It will display options for setting the title,
data, color, and line type for the graph.
11.6 Real-Time Log
The Real-Time Log is a text-based event logger displaying notifications
about system status and Bluetooth traffic events. In order to get the
Bluetooth traffic events, the analyzer has to be synchronized to a piconet.
The Real-Time Log window presents the following information in real time:
• System
• Baseband
• LMP Notfications
• L2CAP
• SDP Data
• RFCOMM
To open the Real-Time Log, select View > Real-time log from the menu.
