39
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
The following steps shows you how to configure Merlin II to record a new
piconet.
Step 1

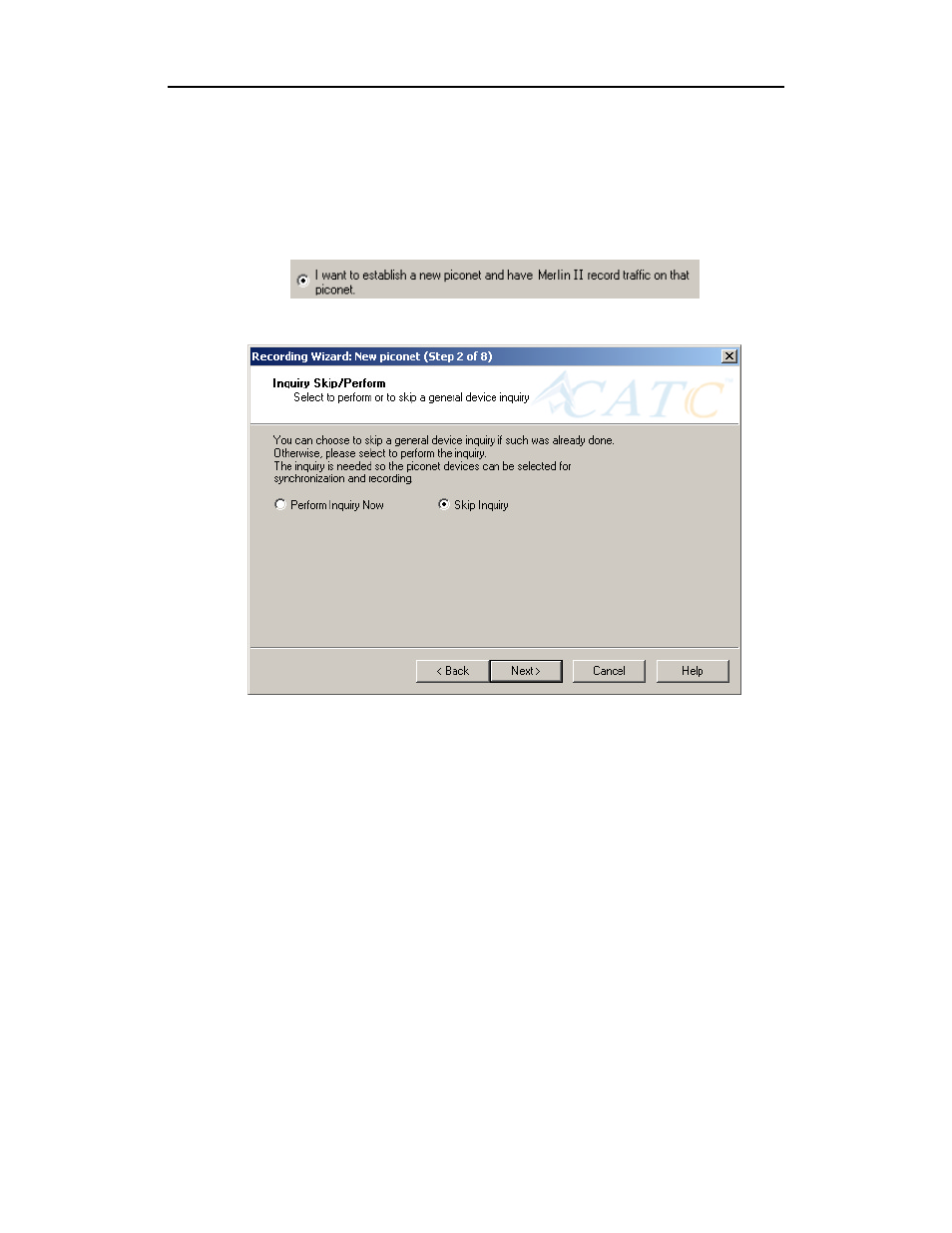

From the screen shown in the previous screenshot, select the
first option: I want to establish a new piconet and have
Merlin II record traffic on that piconet, then press Next.
The following screen displays.
Step 2 Select Perform Inquiry Now, then press Next.
Selecting Perform Inquiry Now will cause Merlin II to perform a
General Inquiry and collect addresses and other details about local
Bluetooth devices. If you already have address information for your
Bluetooth devices you can choose Skip Inquiry. Choosing Skip
Inquiry will cause the Recording Wizard to advance to Step 6. If you
are not sure what option to select, choose Perform Inquiry Now.
