47
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50

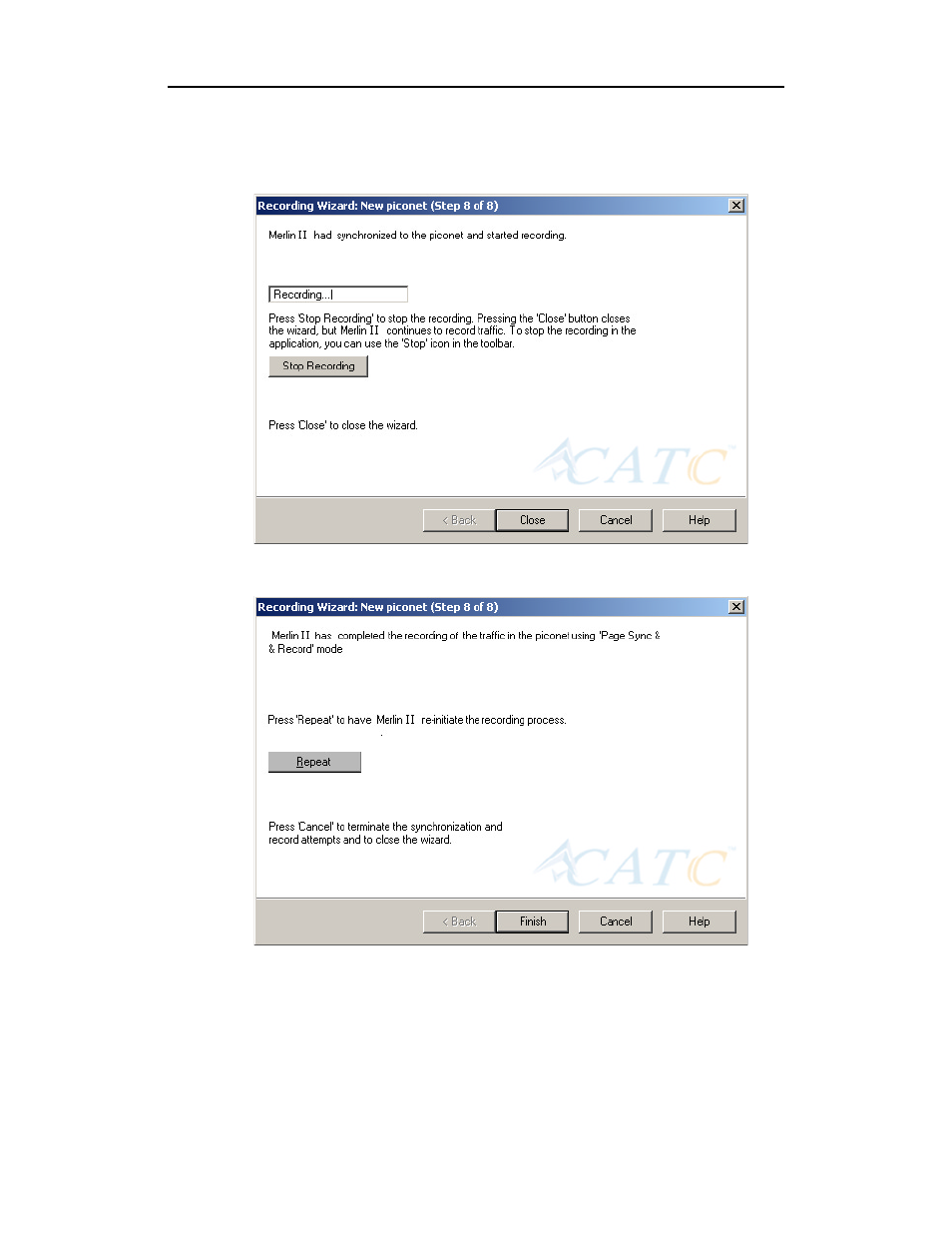

Once you have created the piconet, Merlin II will synchronize to the
piconet and begin recording. During the recording, Merlin II will display
the following screen:
At the completion of the recording, Merlin II will display the following
screen:
You can repeat the recording by pressing the Repeat button.
Step 11 To close the wizard, press the Close button.
