2.6 Your First Bluetooth Recording

After installing and launching the software, you can test Merlin II by
creating an inquiry recording. In this test, Merlin II will issue a General
Inquiry that asks local devices to identify themselves. Merlin II then records
the responses.

Inquiry Recording

To create an inquiry recording, perform the following steps:

Step 1

Click the down-arrow on the right side of the
Record:Piconet button on the toolbar

A sub-menu appears with options for Piconet Recording Mode, and Inquiry
Recording Mode.

Step 2

Select Inquiry Recording Mode.

The button changes appearance and shows the label Record: Inquiry

Step 3

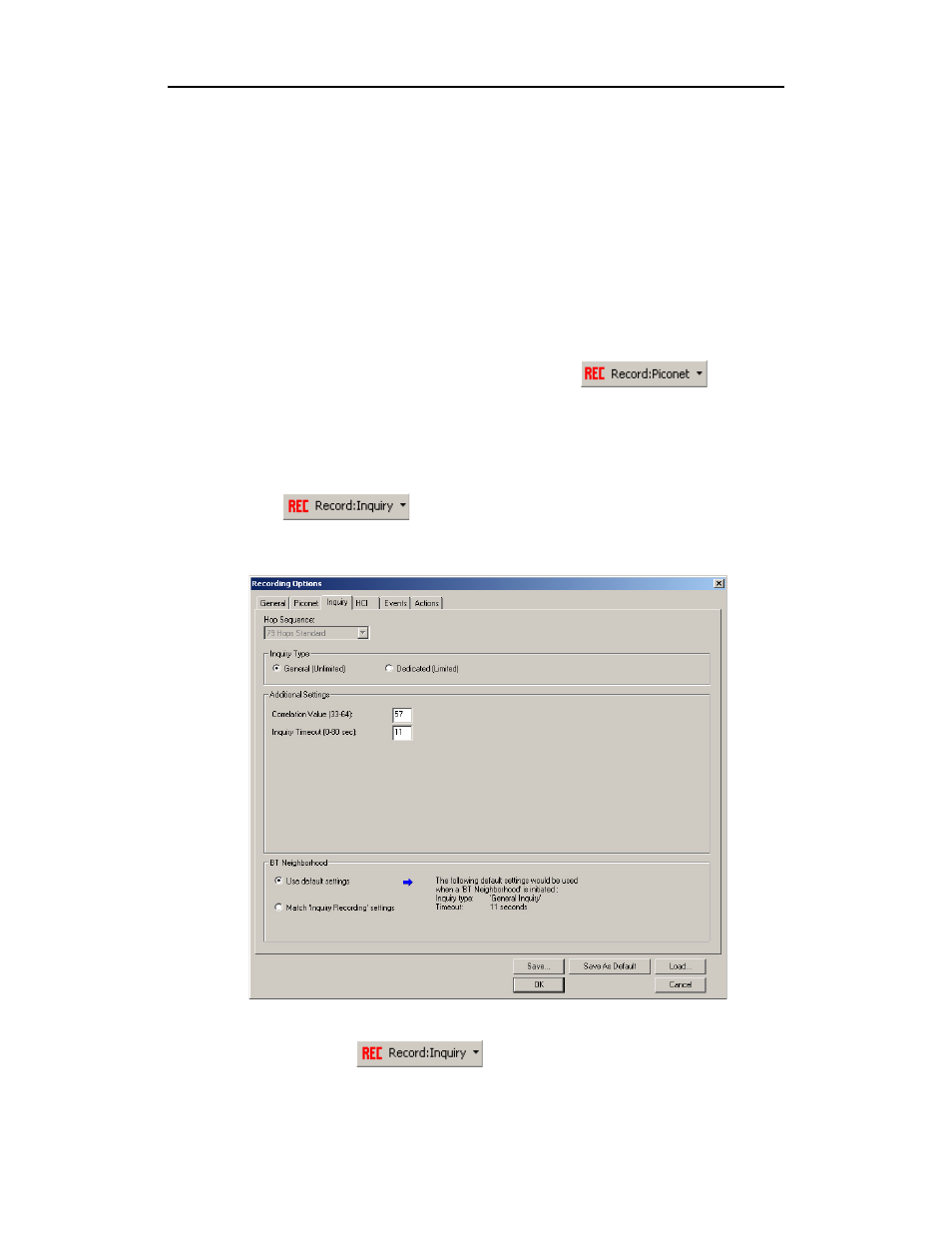

From the menu, select Setup > Recording Options.

The Recording Options dialog opens with the Inquiry page displaying.

Step 4

If desired, make any changes to the options, then click OK.

Step 5

Click the

button (i.e. not the down-arrow.)
