Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50

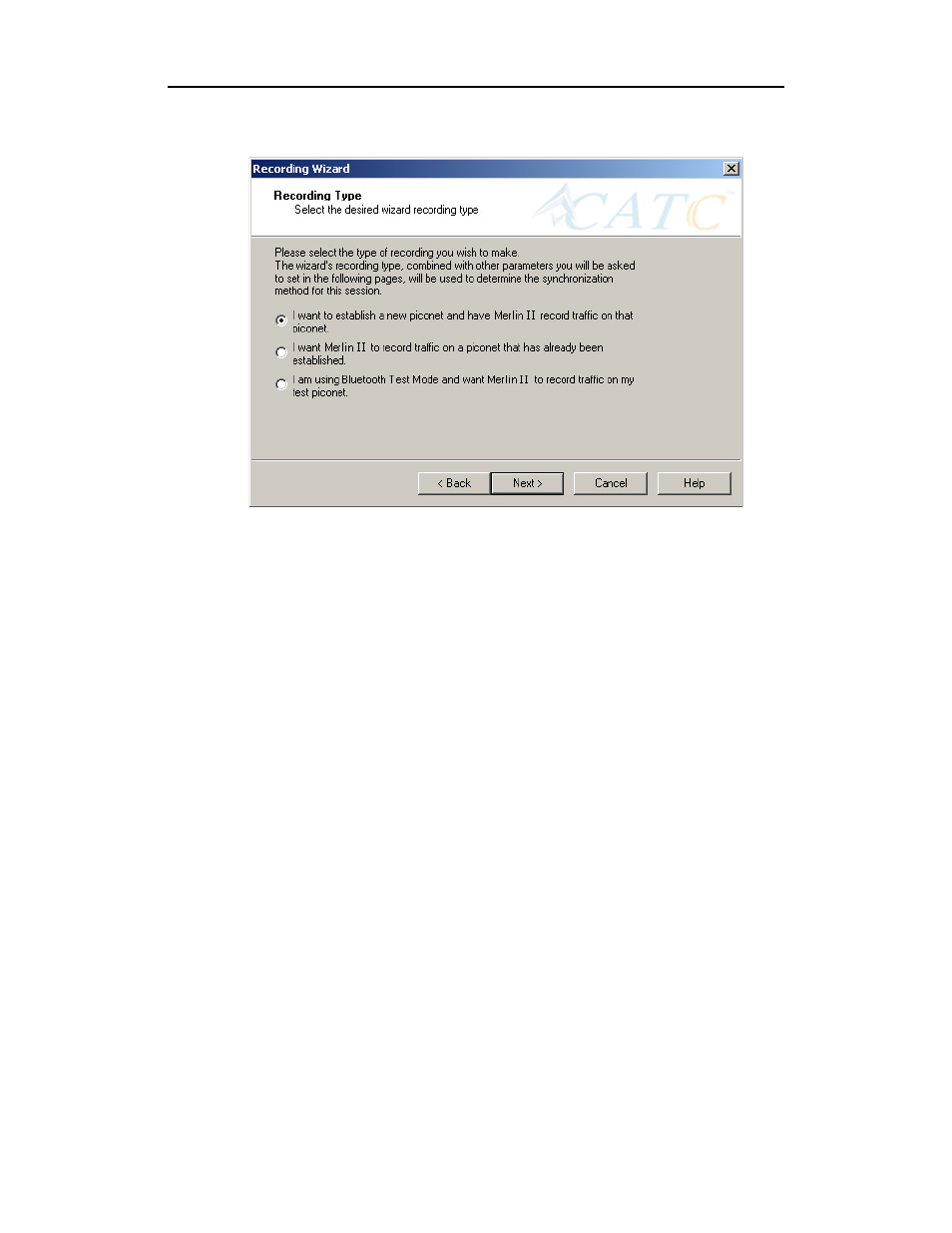

The Wizard advances to the next screen which presents three options:
• I want to establish a new piconet and have Merlin II record traffic on that
piconet.
This option causes Merlin II to perform an Inquiry so it can discover
local devices and then establish a new piconet and record the piconet
traffic.
• I want Merlin II to record traffic on a piconet that has already been
established.
This option lets Merlin II record traffic from an already established
piconet.
• I am using Bluetooth Test Mode and want Merlin II to record traffic on
my test piconet.
This option lets Merlin II create either a single frequency range recording
of a range that you specify or create a recording of a limited hop
frequency range consisting of 5 frequency hops.
5.1 Recording a Traffic on a New Piconet
The New Piconet option shown in the previous screen presents users with
the means of recording the traffic from a new piconet. This option will
cause a sequence of screens to prompt you for information such as the
piconet Master address.
