70
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50

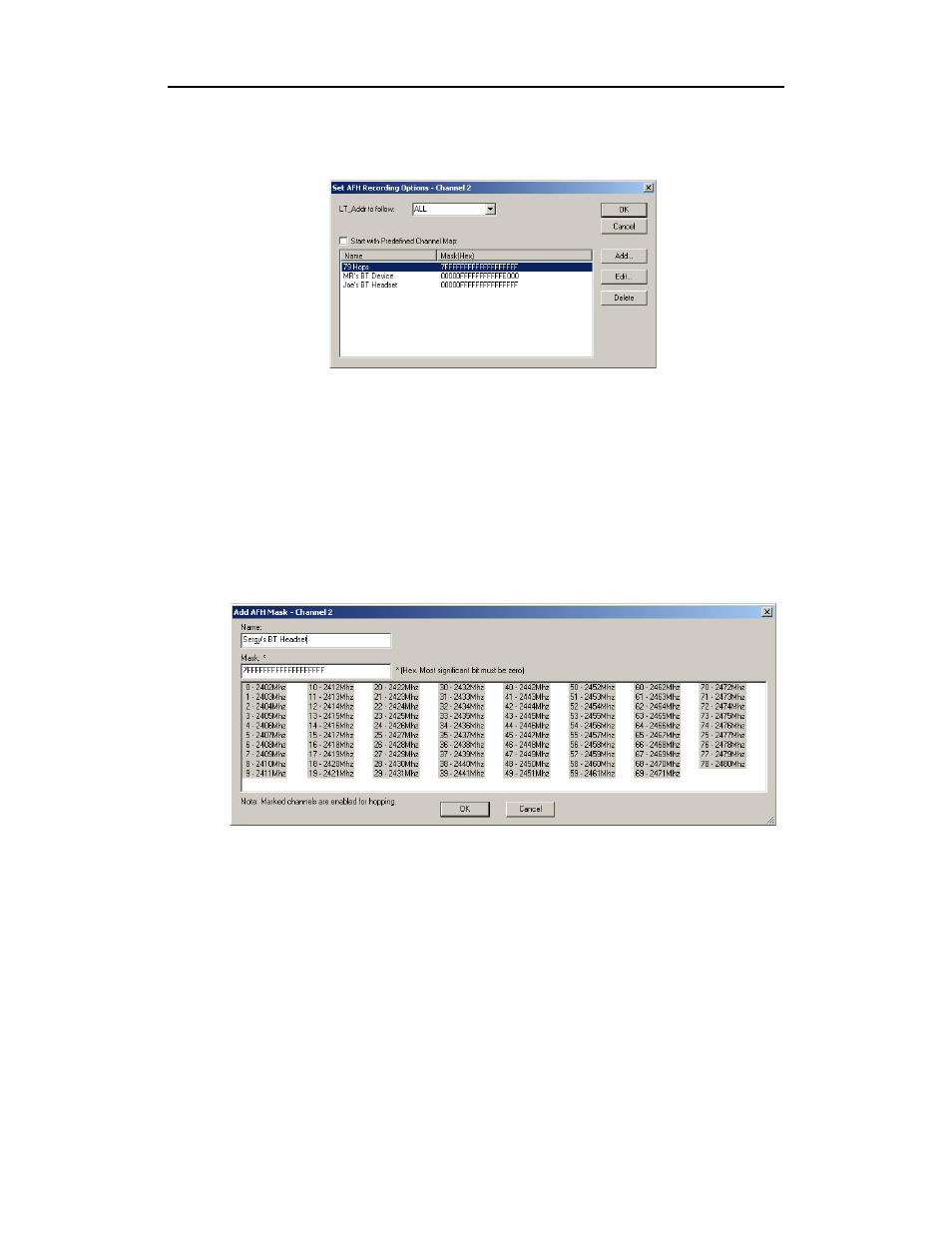

Set... - Opens a dialog box for selecting the channels you would like Merlin
II to use.
LT_ADDr to Follow: Select devices to be followed.
Start with Predefined Channel Map: Tells Merlin II whether
to use the selected channel map from the table. Select an AFH
sequence from the list, check Start with Predefined Channel
Map, then click OK.
Add ...: Opens a dialog box for selecting multiple channels. You
can shift-click or control-click to select or deselect multiple
channels. Add a name to the box marked Name and then click OK
to close the dialog box and keep your selection.
Edit ...: Opens the dialog box shown above and lets you change the
current settings.
Delete: Deletes the selected AFH sequence.
