54
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
If the Master supports inquiries while in a connected state, select the first
option. This will set Merlin II to use the 'Sync & Record' mode in its
attempts to synchronize to the Master. This will also cause the wizard to
skip to step 8.
If the Master can support piconets with multiple slaves, select the second
option. If you select this box alone (i.e., you leave the first box
unchecked), Merlin II will use the 'Passive Sync & Record' mode to
synchronize to the Master. The wizard will then advance to Screen 8*.
If the first checkbox was selected, Merlin II will use 'Sync & Record' no
matter what was set in the second box.
Step 12 If you want to skip the Master verification, put a check in the
box. If you are in doubt, leave the box unchecked.

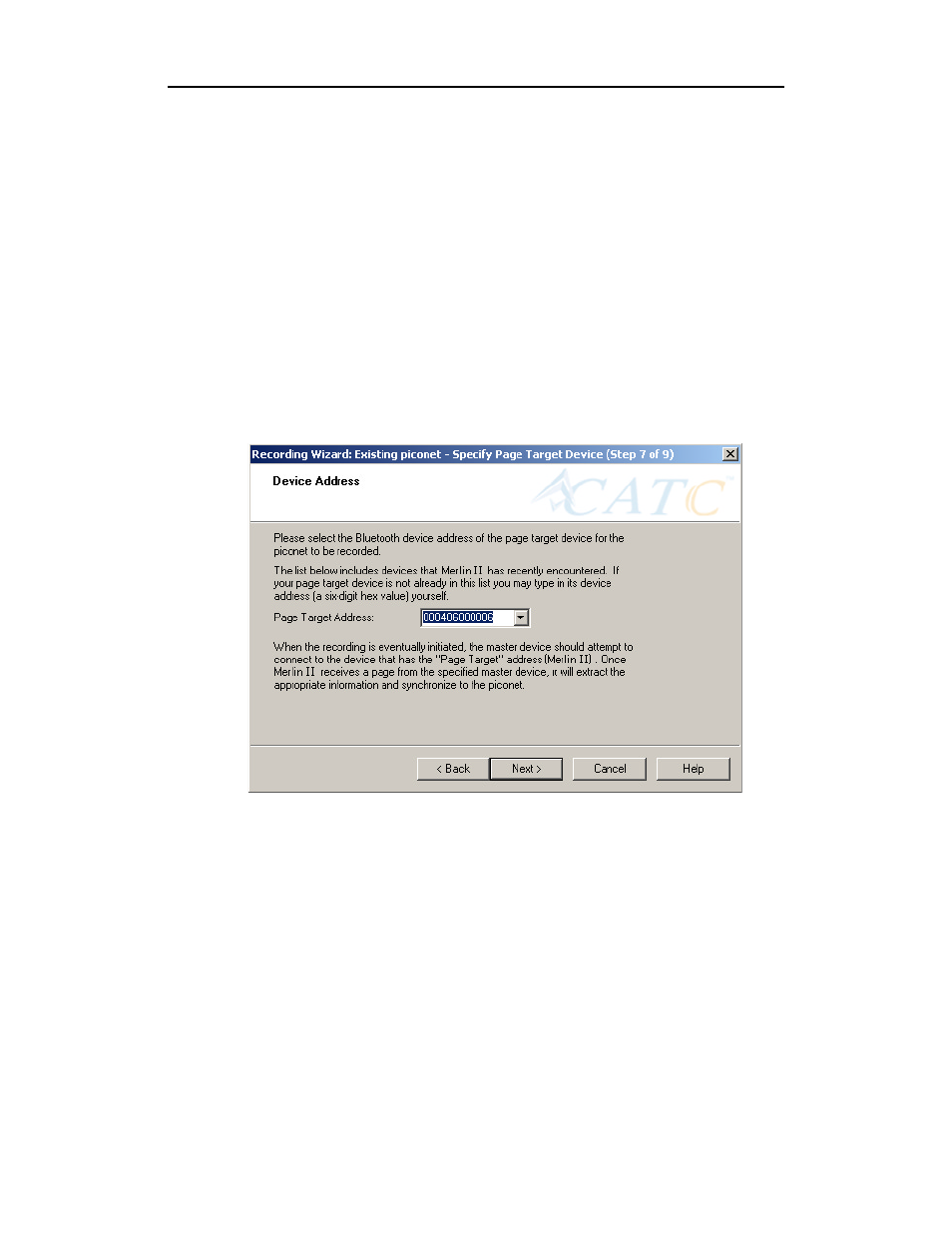

If you selected only the second option in Step 12 (=’Passive Sync &
Record’), the following screen will display.
This screen asks you for the address of the Page Target device -- which
in this case is Merlin II. Since the devices in your piconet are not able to
respond to inquiries, Merlin II will not be able to page the devices and
join the piconet. Instead, you will assign Merlin II an address here in
this screen, then direct your piconet Master device to connect to Merlin
II. The Master will attempt to connect to Merlin II and therein give
Merlin II the information it needs to record the Master and slave devices.
Step 13 Type in an address of your choosing for Merlin II (= Page Target).
You are making up an address for Merlin II that the Master will use to try
to connect to Merlin II.
