59

Merlin II Protocol Analyzer User’s Manual

CATC

SW Version 2.50

Step 5

Select the option Reduced-hopping mode, then press Next.

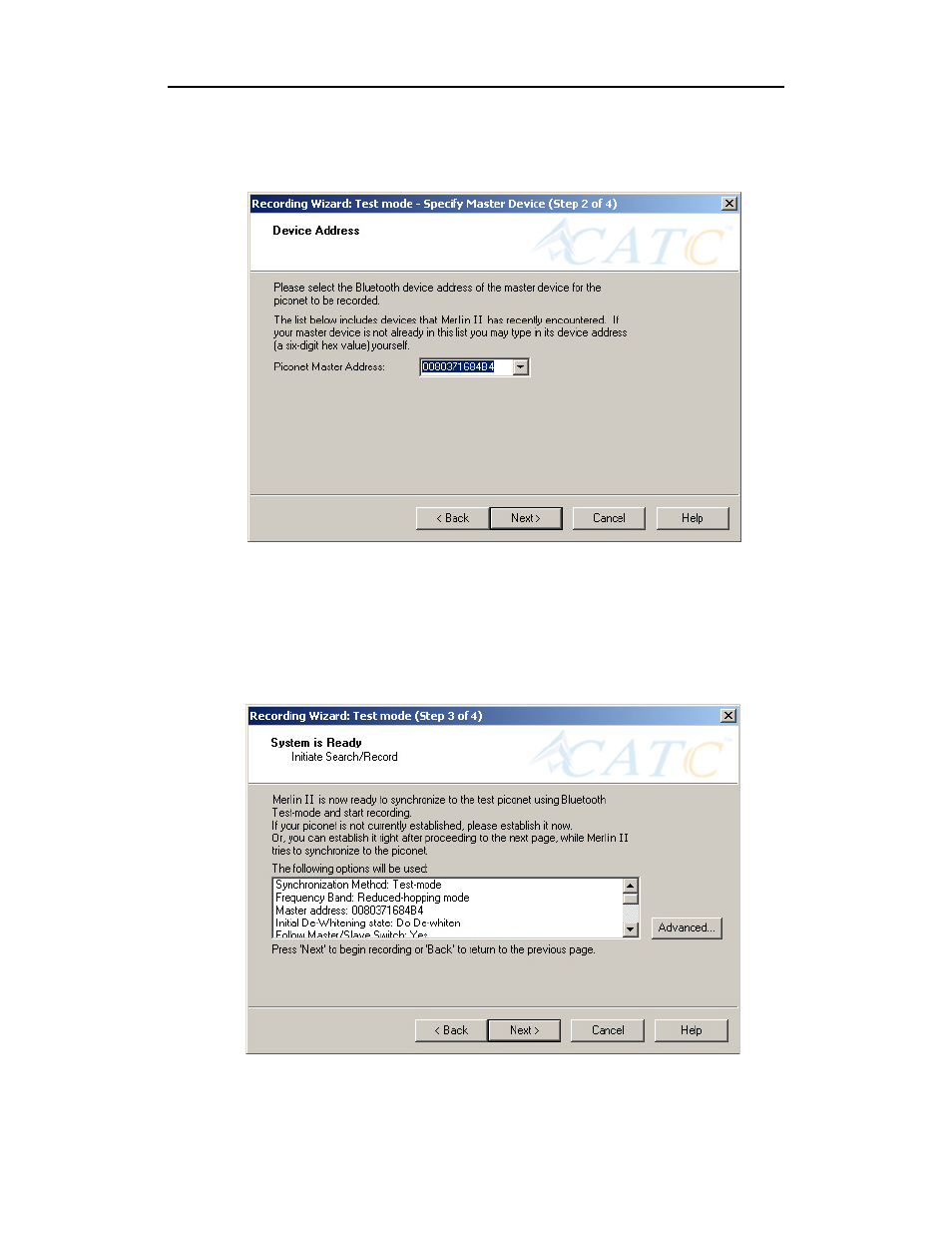

The following screen will display:

Step 6

Select the address for your piconet’s Master device from the
drop-down menu. If you prefer, you can type in the address
into the box.

Step 7

Press Next.

The following screen will display. This screen will show the current
settings for the recording:
