Teledyne LeCroy Merlin II - Users Manual User Manual
Page 56
46
Merlin II Protocol Analyzer User’s Manual
CATC
SW Version 2.50

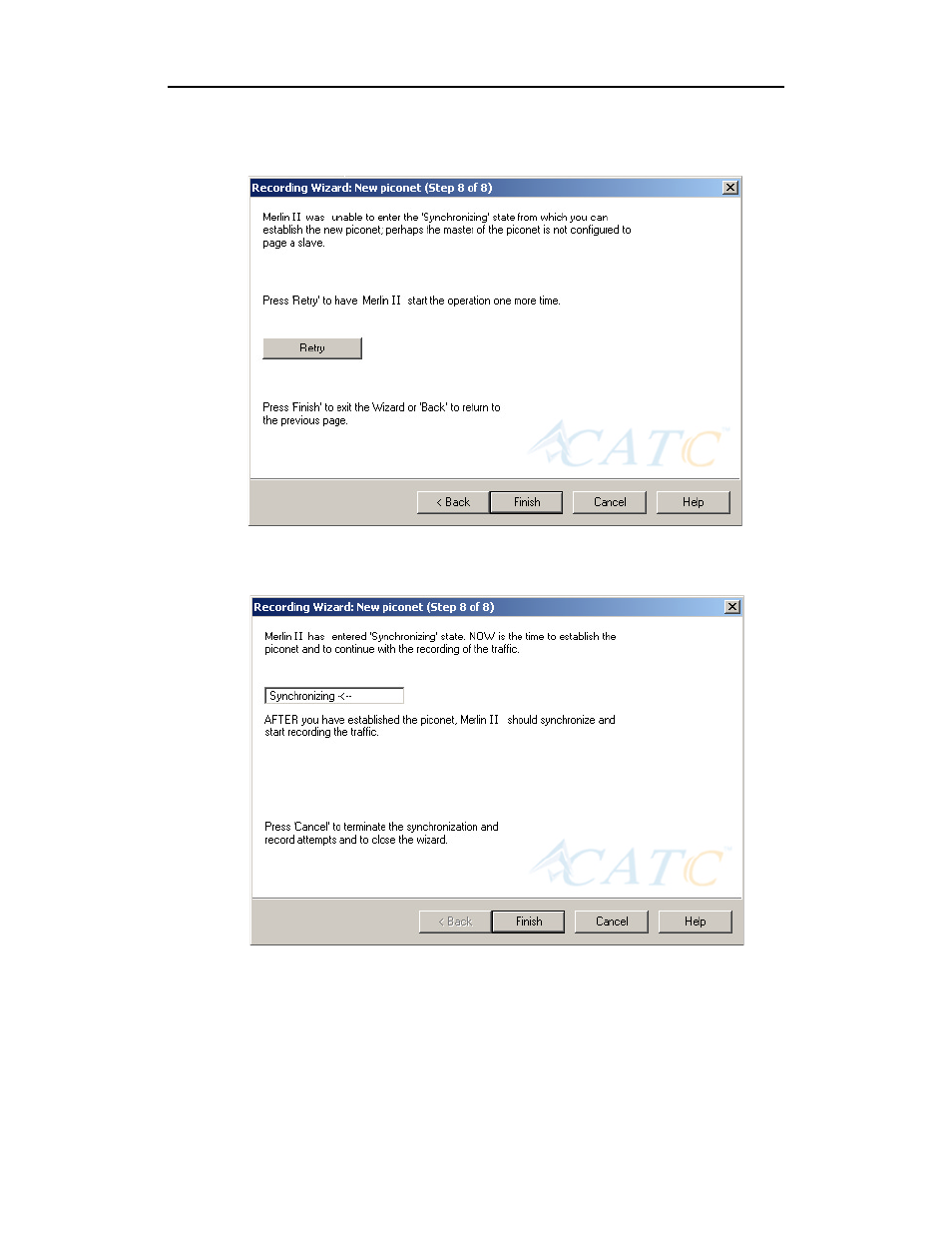

If Merlin II is unable to complete its pages, the following screen will
display:
If Merlin II is able to complete its pages, it will enter into a synchronizing
state and then wait for you to create the piconet. During this waiting
period, Merlin II will display the following screen:
