55
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
Step 14 Press Next

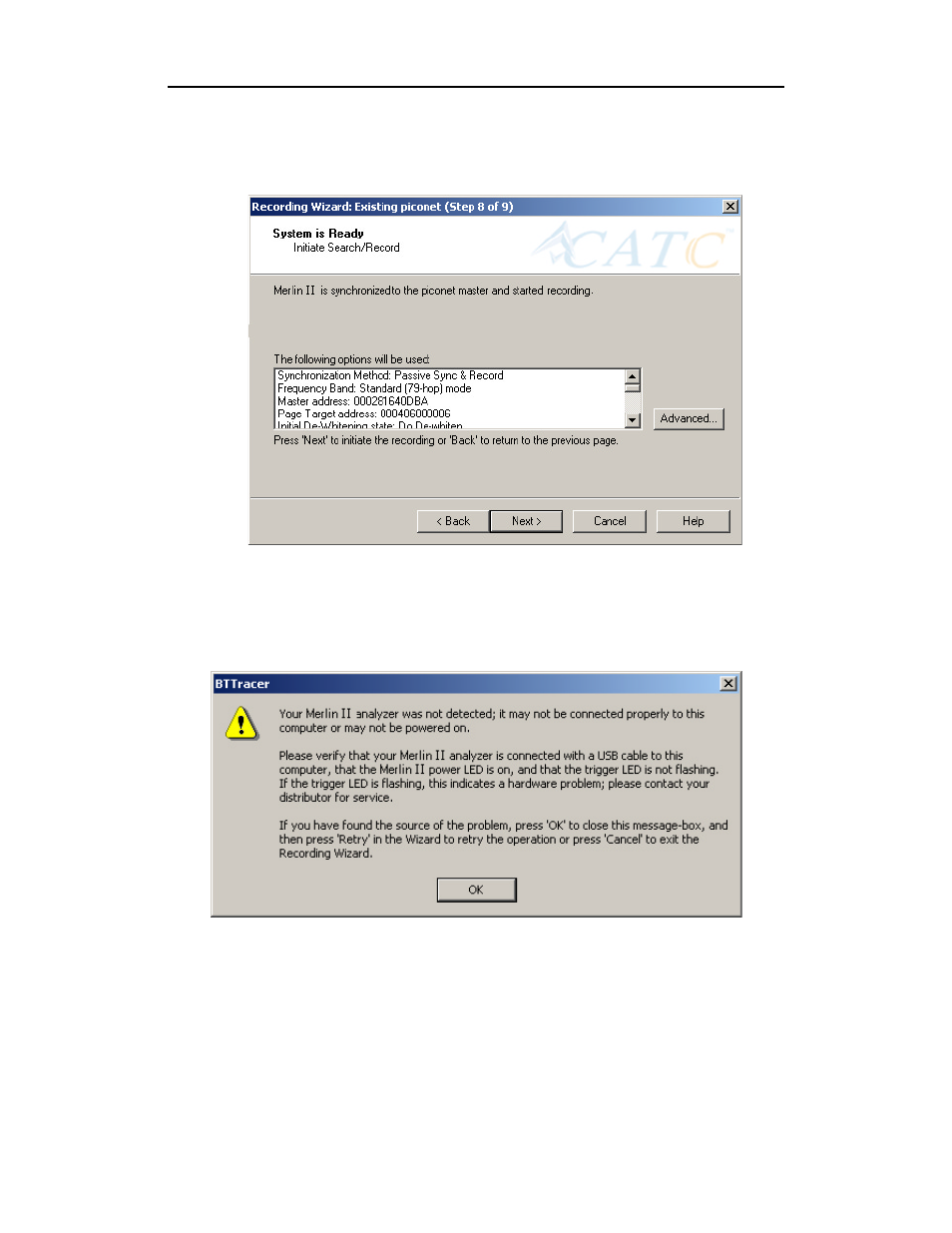

Merlin II will then display your current settings.
The Advanced button will open the Recording Options dialog box
shown on page 45 and described in detail in Chapter 7.
Step 15 Press Next to begin the recording.
If the Merlin II hardware is not ready or connected or is in the process of
booting up, the following information message box will display:
Step 16 If the above information box opened, press OK to close it.
