57
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50
record the piconet.

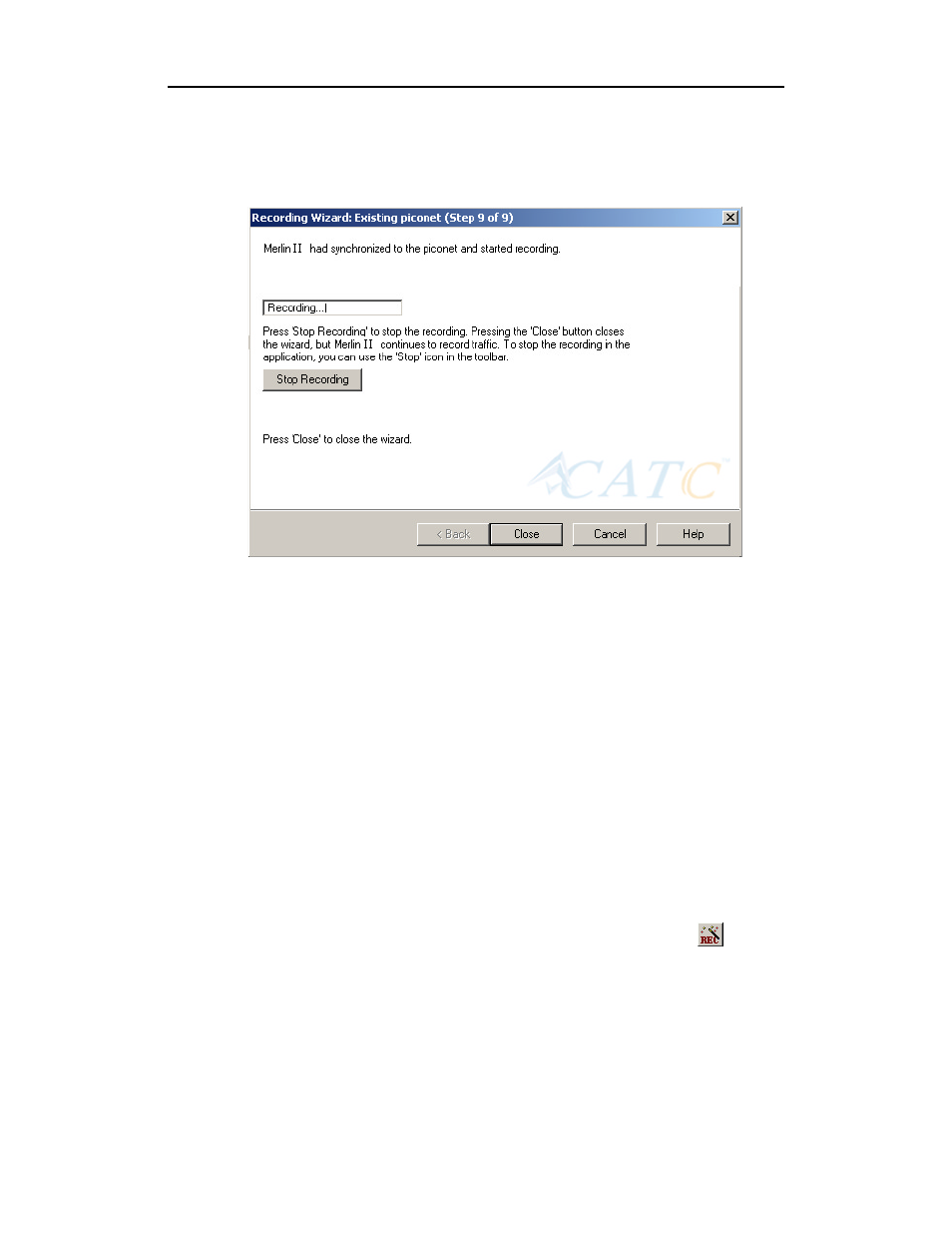

Once Merlin II has the information it needs, it will begin recording. The
following screen will display:
The recording will end following a trigger event or when you press Stop
Recording button on the screen shown above or when you press the
button on the toolbar.
Step 19 When finished, press Close to close the Recording Wizard.
5.3 Recording in Test Mode
A Test Mode recording allows you to limit the frequency hopping range that
Merlin II will record. Two Test Modes are available: Reduced Hopping
Mode and Single Frequency Mode. Reduced Hopping Mode limits Merlin
II’s recording to the five frequency hops that are described in the Bluetooth
Specification. Single Frequency Mode limits Merlin II’s recording to a
single frequency range that you specify in the Recording Wizard.
Recording in Reduced Hopping Mode
To record in Reduced Hopping Mode, perform the following steps:
Step 1 Start the Recording Wizard by either pressing the button
or selecting Setup > Recording Wizard from the menu.
The Recording Wizard greeting screen will open.
