56
Merlin II Protocol Analyzer User’s Manual CATC SW Version 2.50

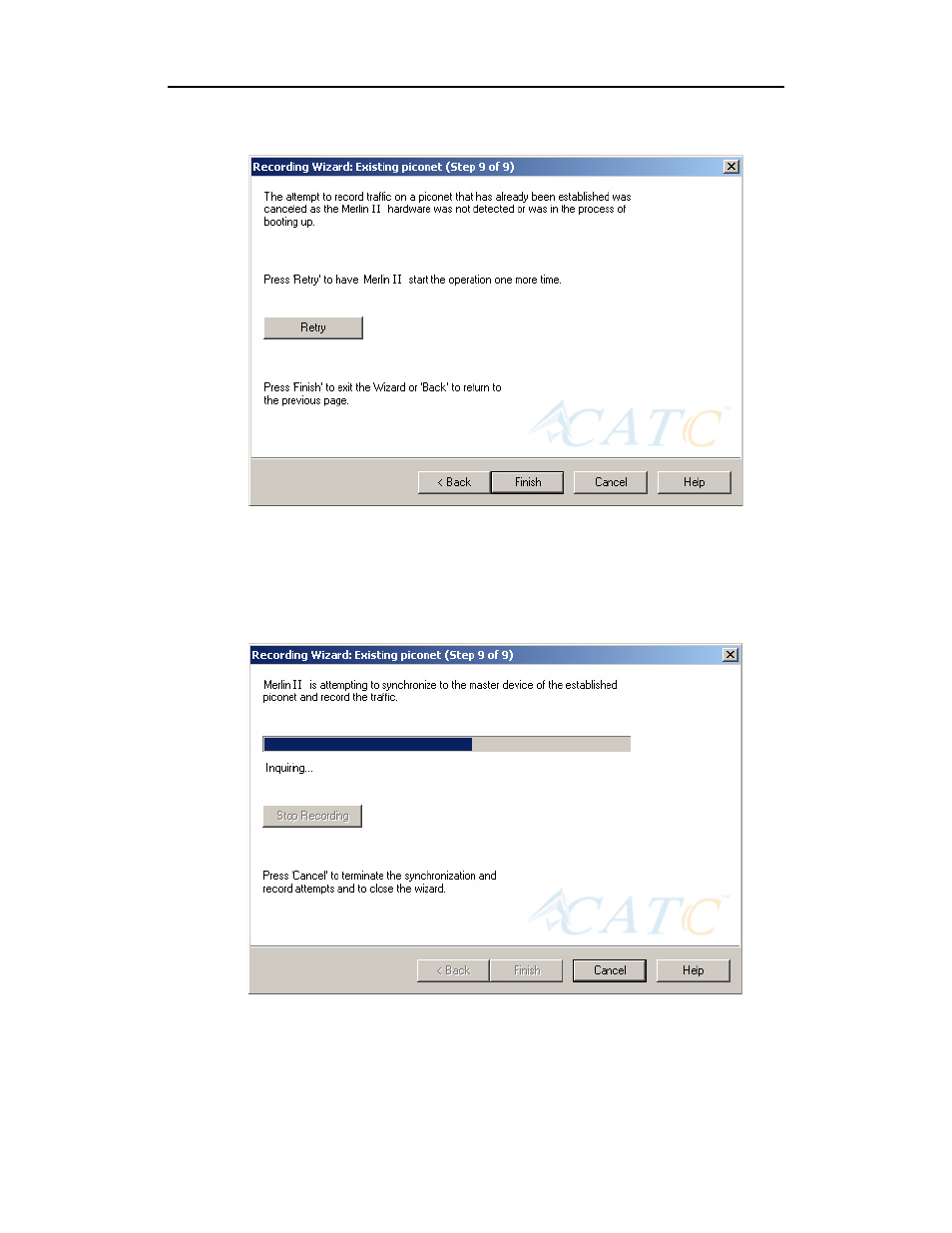

The following dialog box will display:
Step 17
Press Retry or Back to re-attempt the process.
If the hardware failure described above do not occur, Merlin II will
conduct an inquiry. The screen will show that Merlin II is going to
attempt a recording in either ’Passive Sync & Record’ mode as shown
below or in ’Sync & Record’ mode depending on the options you
selected in Step 15.
Step 18 If you are recording in ’Passive Sync & Record’ mode, you will
need to direct your Master device to attempt a connection to Merlin
II. This will provide Merlin II with the information it needs to
