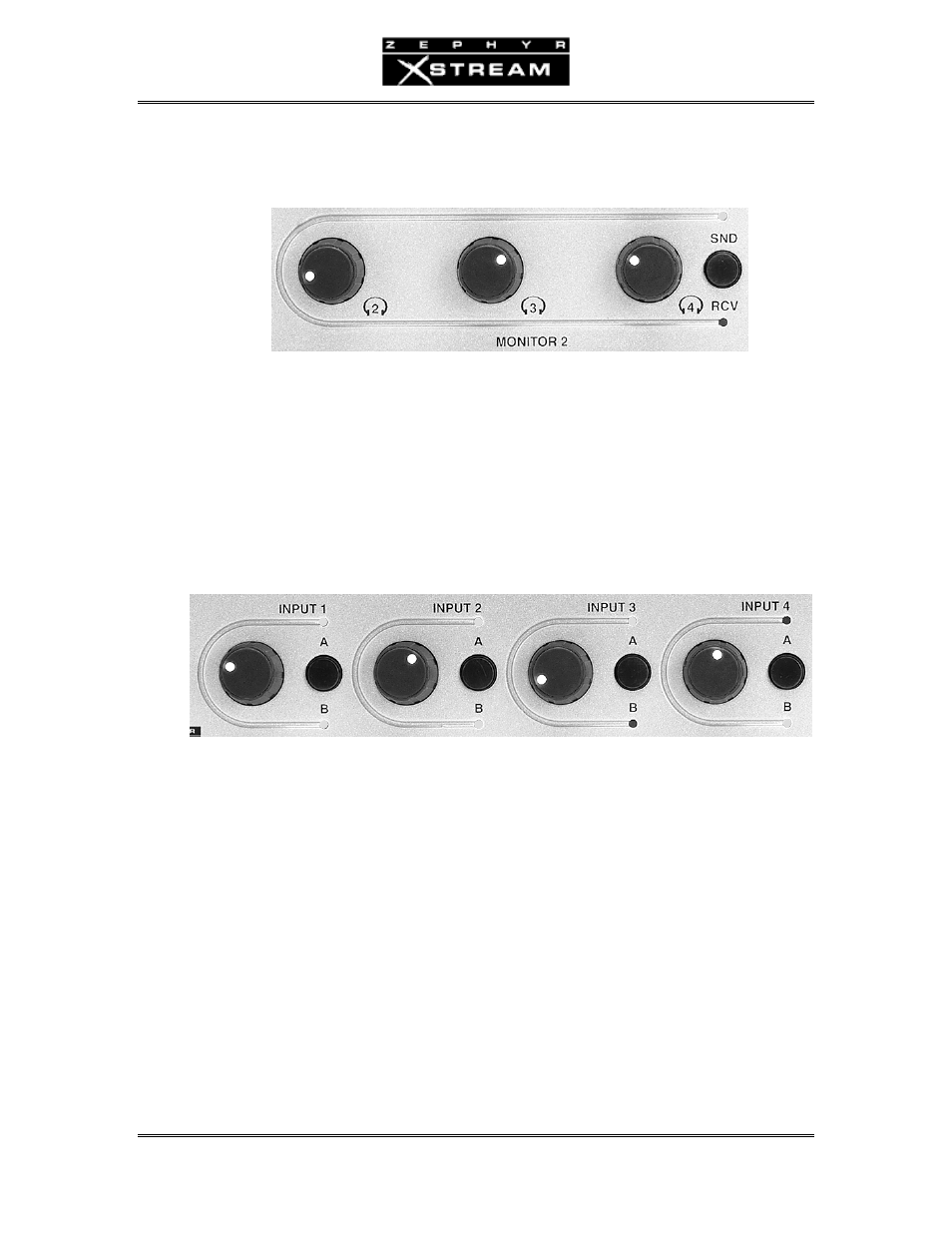

Local Monitor Mix 2 Volume Controls
Local Mix 2 is available on three rear‐panel headphone jacks (1/4” stereo jacks) as well as, by
default, a pair of balanced XLR jacks ‐ we’ll cover these jacks shortly, in Section 3.4. Each of
these headphone jacks has an associated front‐panel volume control. Just as with Local Monitor
Mix 1, an adjacent button allows you to select if you wish to monitor Snd (send) audio, Rcv
(receive) audio or a mix of both. Repeatedly pressing this button cycles between the options.
The seventh AUDIO menu allows you to set up the Send/Receive and Left/Right balance for local
monitor mix 2.
Main Mixer Controls
These for knobs control the Zephyr Xstream MX/MXP’s input levels for the main mixer section.
A button adjacent to each input allows assignment to the A (Left), B (Right), or both, mixer
busses.
• The nominal input gain and AGC/Limiter options for each mixer input can be
set on the second through the fifth AUDIO menus (for inputs 1‐4,
respectively).
• The Main Mixer's output directly feeds the codec section.
• The factory defaults for inputs 1 and 2 is for microphone inputs levels and
assigned to both A and B audio channels.
• The factory defaults for input 3 is "professional" input levels assigned to the
A audio channel.
• The factory defaults for input 3 is "professional" input levels assigned to B
audio channel.
