USER’S MANUAL
Section 3: GUIDED TOUR of the HARDWARE 19
3 GUIDED TOUR of the HARDWARE
The Zephyr Xstream, Xstream MX, and Xstream MXP are all quite similar in their design and
operation. The menus are identical between all three versions with the exception of the AUDIO
menu.
The front and rear panels of the Xstream MX and Xstream MXP are identical. The only difference
between these two models is the fact that the Xstream MX is rack‐mountable, whereas the
Xstream MXP has a rugged portable case.
The Xstream has different front and rear panels from the other models. Therefore, we will cover
the hardware of the Xstream in Sections 3.1 (front) and 3.2 (rear) and the Xstream MX/MXP in
Sections 3.3 (front) and 3.4 (rear).

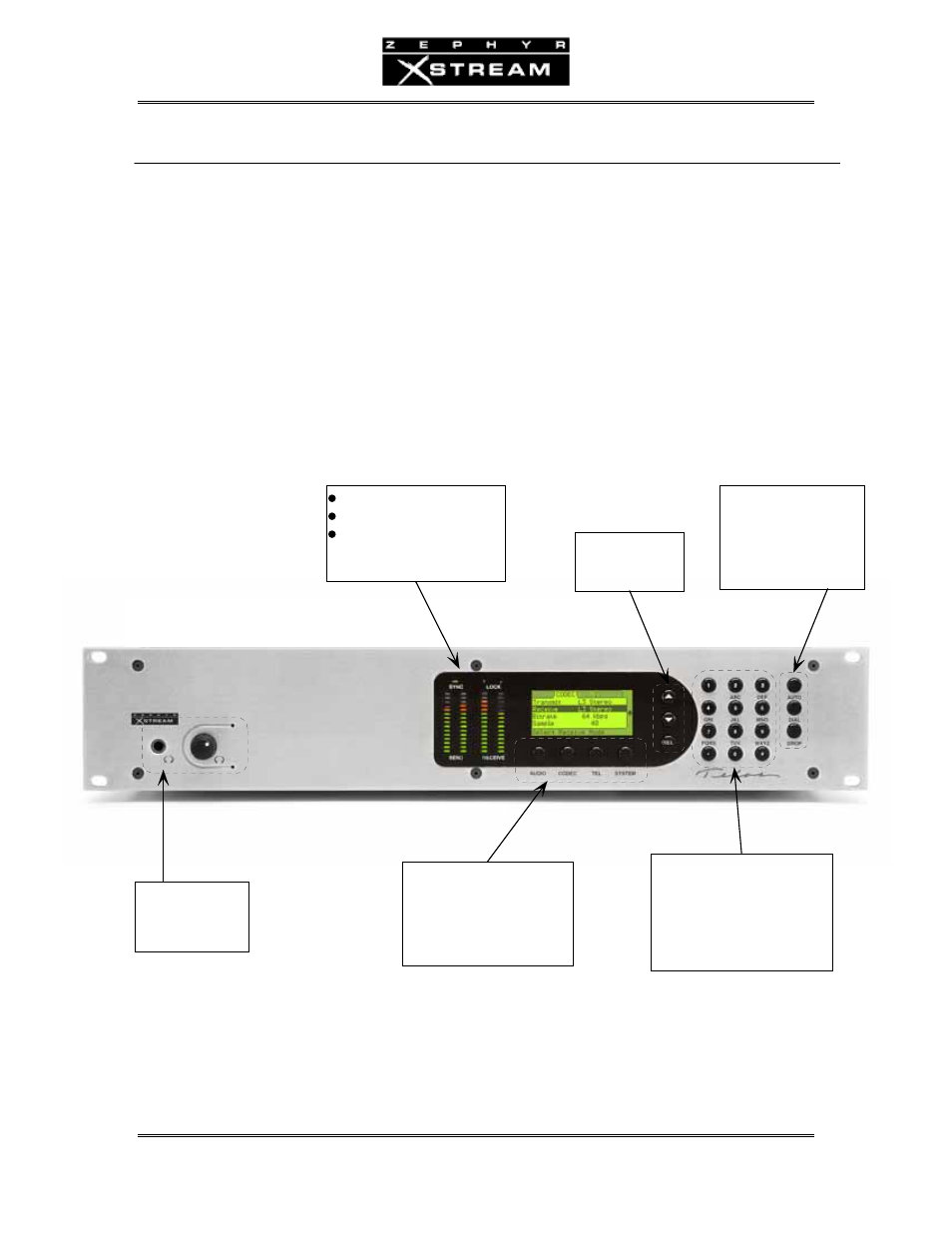

3.1 Zephyr Xstream Front Panel
(Non-mixer
version)
Headphone
Jack &
Volume Control
Fast Access
Menu Keys
One touch gives summary
information. Repeated presses
allow paging through the menu
options.
Navigation
& Menu
Selection Keys
Numeric Keypad
Used to enter numerical &
text information. Used for dialing.
Generates DTMF tones for
navigation through voice-menu
systems on calls to voice
lines (G.711 calls)
Auto Key
Allow s access to
stored DIAL & LOCATION
setups.
Dial & Drop Keys
Used for manual dialing
Input & Output Meters
Sync Light
Dual Lock Lights
Operator has ready access to
system operating information
