Xstream ISDN to ISDN Connection Examples:
Telephone
Network
Mono Mono
Mono Mono
ISDN
(1 Call)
ISDN
(1 Call)

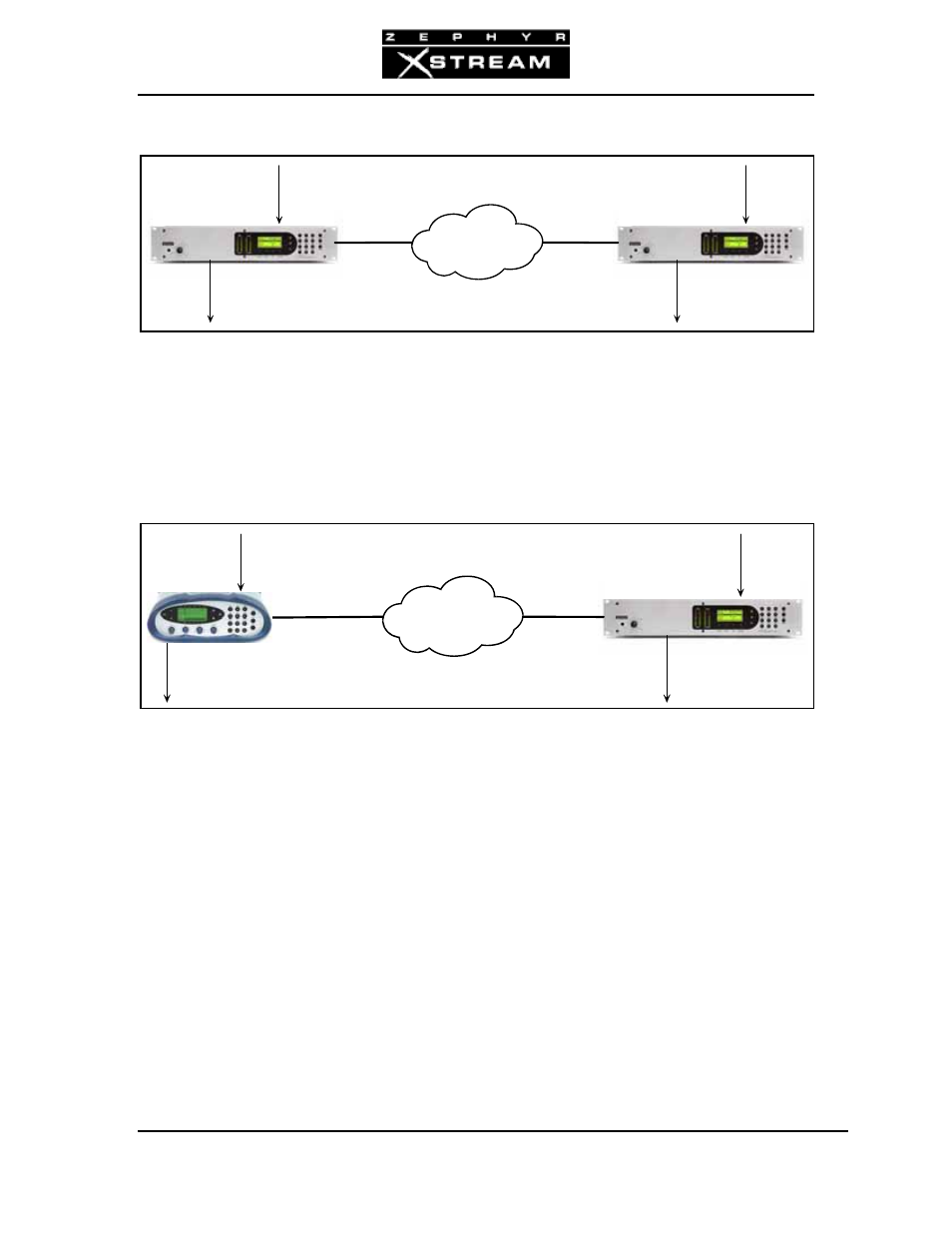

The basic Mono 56 or 64 kbps ISDN codec connection is shown above. The audio quality is
dependent on the settings in the CODEC menu. ISDN is used end‐to‐end for the best quality and
lowest delay.
When using MONO modes the channel A inputs and Line 1 are used.
The dialing MODE for this call is Zephyr.
Mono
Telephone
Network
Mono Mono
Mono
ISDN
(1 Call)
ISDN
(1 Call)
The call between an Xport on ISDN and the Xstream is similar to the above case. In this case the
Xstream would be set to AAC‐LD Mono‐64 @ 48kHz. No configuration of the Xport is necessary.
The dialing MODE for this call is Zephyr.
