USER’S MANUAL
Section 5: GUIDED TOUR of the MENUS 91
Right:
This option routes the outgoing channel B (Right) audio to both sides of the
Local Mix.
Left +Right:
This option sums (i.e. mixes) the incoming A & B audio channels and routes this
to both sides of the Local Mix.
Mon “x” Xmt Pan
Whenever Xmt is selected using the front panel button, this control determines the ratio of the
amount of the audio fed to the A (Left) and B (Right) channels of the Local Mix.

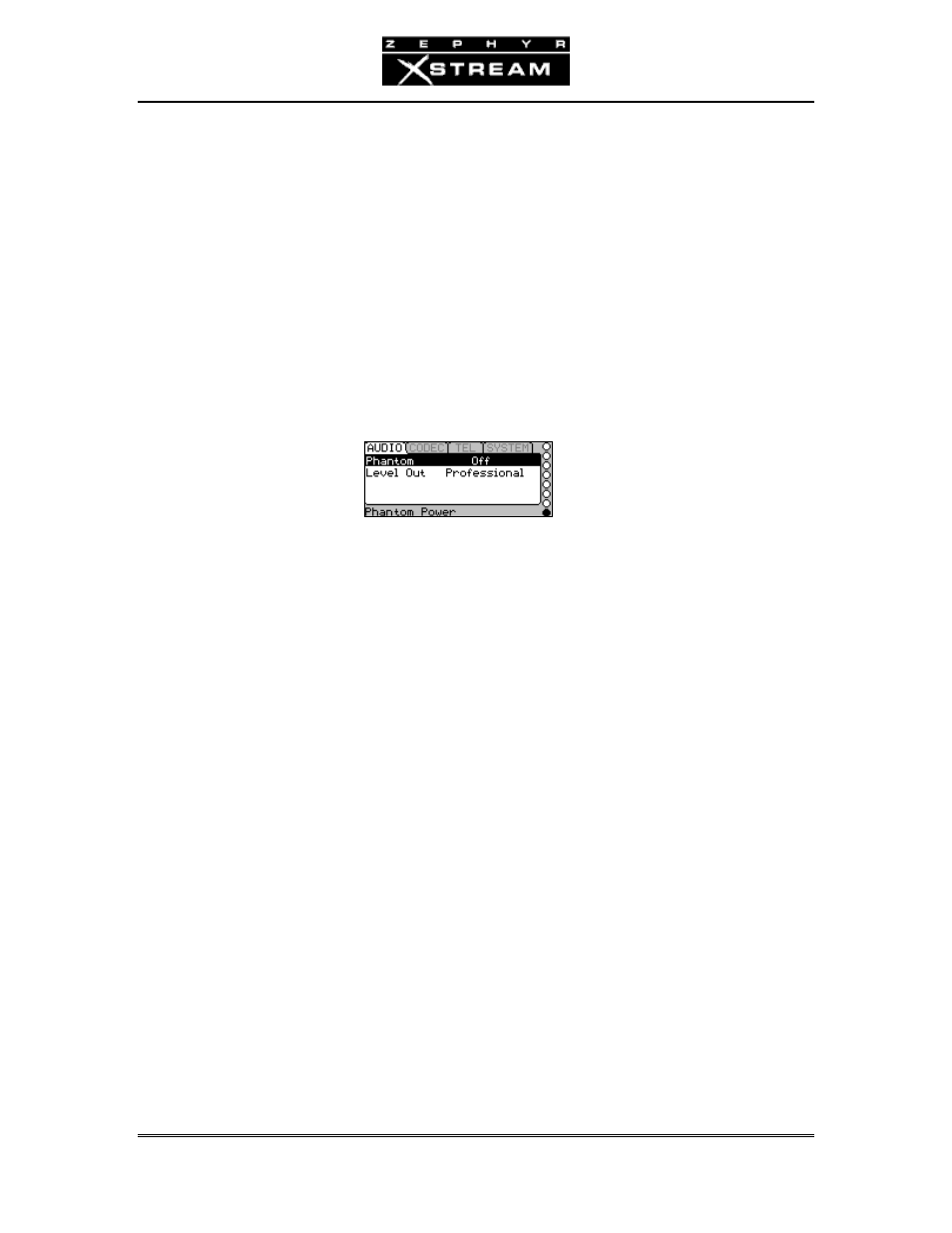

AUDIO - Menu 8
This menu has three options:
Phantom
This option allows you to disable (Off) or enable (On) phantom power for inputs 1 & 2. Phantom
power is the full 48 volts and is fed to both inputs 1 & 2.
Level Out
This option sets the nominal output level for the line outputs for Monitor Mix 2. The options are
"Professional" (+4 dBu nominal) or "Consumer" (‐10 dBu nominal).
Assignment
This setting this to Locked locks the input assignments (A/B select) and monitor assignments
(Send/Receive select) to their current settings.
