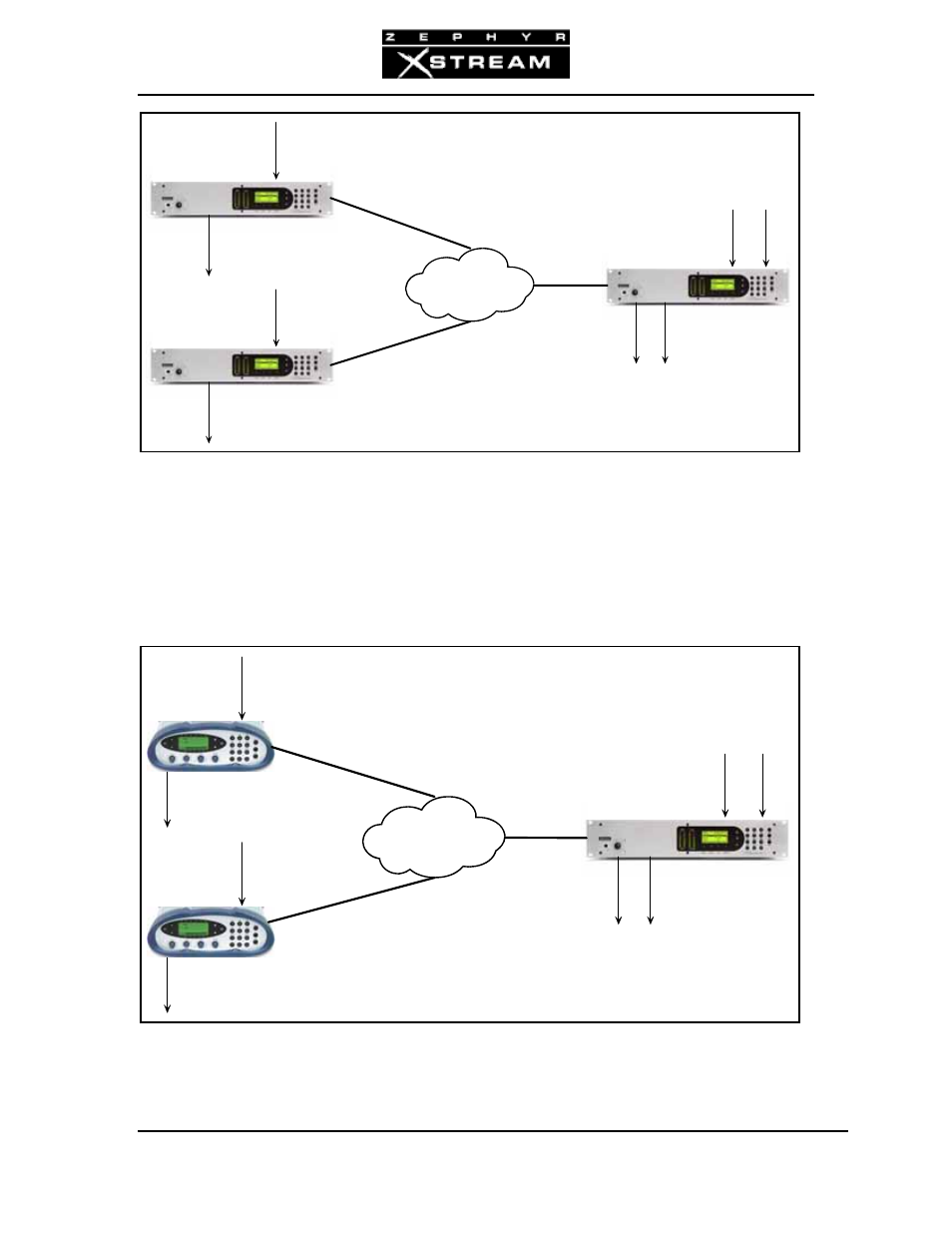

Dual mode operation allows a "central" codec to connect to two "remote" codecs
simultaneously. Dual operation is available in both Layer 3 and G.722.
The remote codecs generally would both use the A inputs and outputs and Line 1.
The central codec will use the A inputs and outputs to communicate with the remote site
connected to Line 1, and the B inputs and outputs to communicate with the remote unit
connected to Line 2.
The dialing MODE for these calls is Zephyr.
Telephone
Network
Mono
2 X Mono
Mono
2 X Mono
ISDN
(1 Call)
ISDN
(2 Calls)
Mono
Mono
ISDN
(1 Call)
This example is the same as the above, only the connection shown is with Xports as the
field. In this case, G.722 would be used.
The dialing MODE for these calls is Zephyr.
