USER’S MANUAL
Appendix 9 – Modular Cable Guide 343
PIN
FUNCTION
1 No
Connection
2
No Connection
3
S Transmit to network +
4
S Receive from network +
5
S Receive from network -
6
S Transmit to network -
7
PS2 Power (- 48 VDC)
8
PS2 Power ground (+)

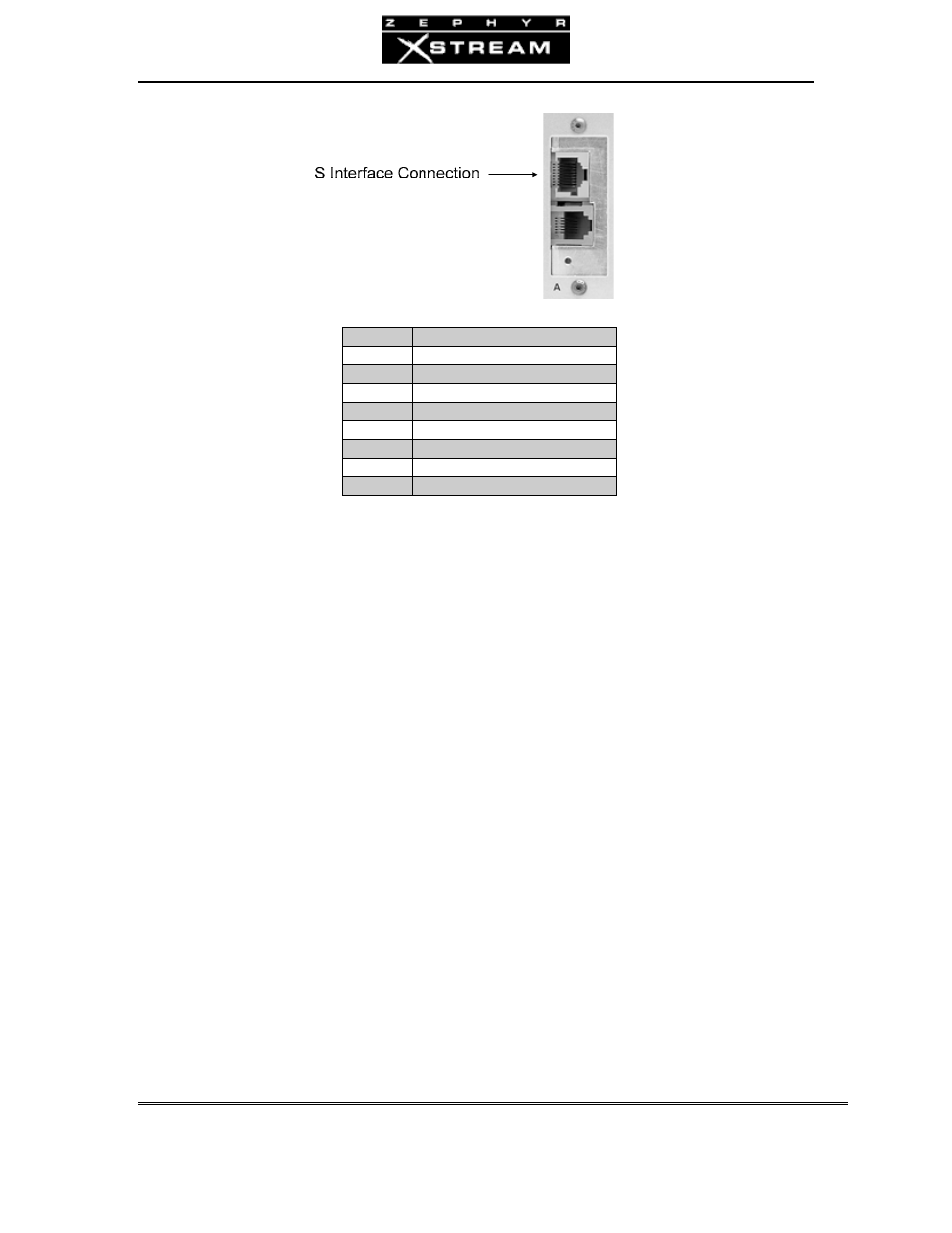

The S interface is a standard modular RJ‐45 style jack with the
pin‐out shown above.
