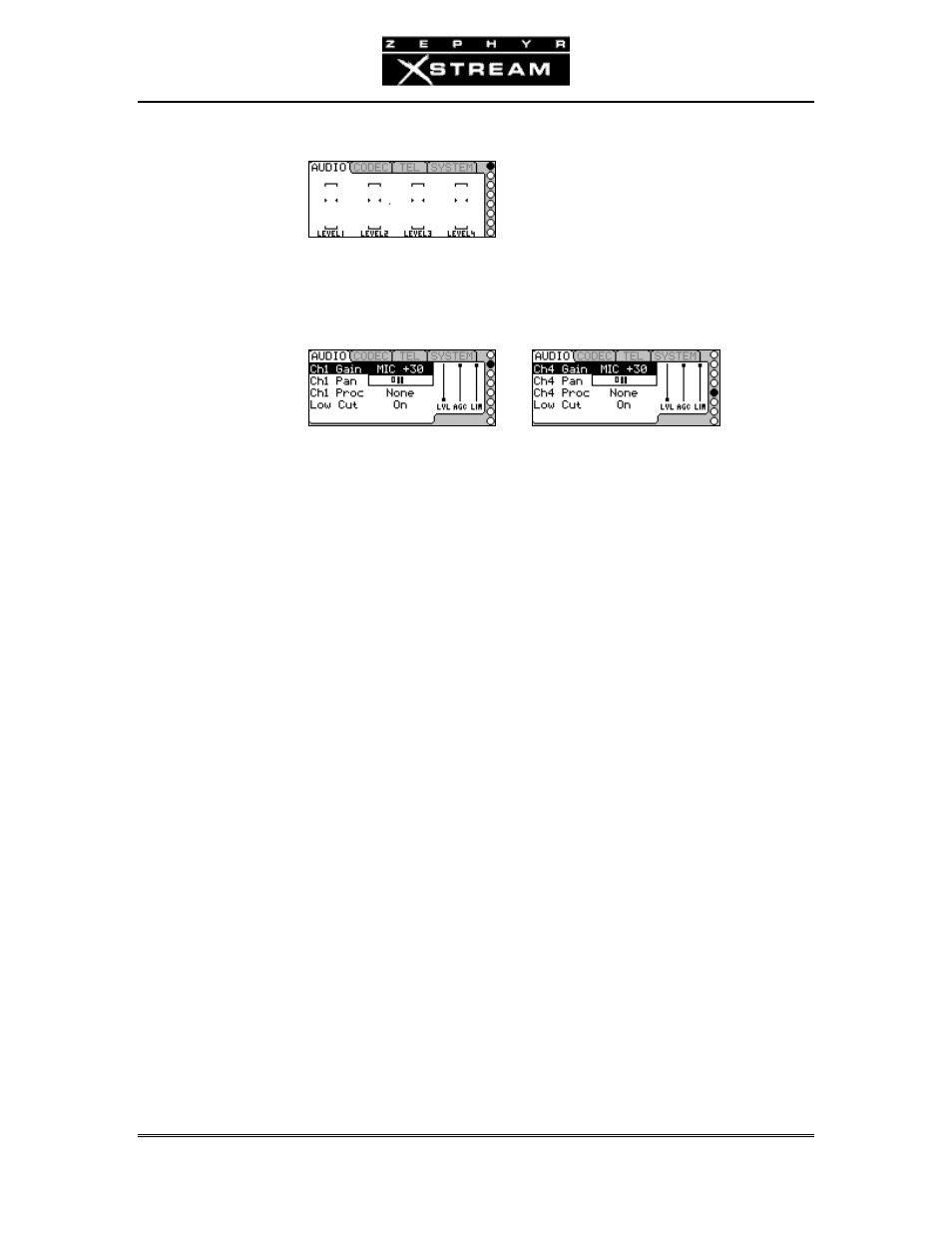

AUDIO - Screen 1 (Status)
The first AUDIO menu has the individual levels for each of the Main Mixer inputs. These levels
are post fader and therefore can be used to view relative levels of each source in the final mix.
AUDIO - Screens 2 - 5
…
The second, third, fourth and fifth AUDIO menus allow adjustments of parameters for Main
Mixer inputs 1‐4, respectively. These screens are identical and have the following information:
Ch “x” Gain
This menu selection allows you to select from four different gain settings (2 mic. and 2 line) for
Main Mixer input x. The options for this setting are:
MIC +44 : ‐55 dBu nom.
MIC +30: ‐40 dBu nom.
Line Con: ‐10 dBu nom.
Line Pro: +4 dBu nom.
The nominal values given above assume the fader is mid‐position and the AGC/Limiter
(processor) is off
Ch “x” Pan
This menu selection is a "panorama" adjustment that allows you to vary the amount of audio
sent to the Left and Right codec inputs. Note that this adjustment has no effect unless the input
x has been assigned to both A and B using the front panel control.
Ch “x” Proc
This menu selection allows you to enable the built in AGC/Limiter Main Mixer input x. You will
be able to see the level for input "x" as well as the AGC and Limiter working by looking at the
small bar‐graphs and gate indicator to the right side of this screen. The built in Omnia processor
is sophisticated and offers the following options:
None:
