USER’S MANUAL
Section 11: THE WORKS – Detailed Menu Reference 197
11.3 The AUDIO Menu – Xstream MX/MXP (mixer models)
See the previous section, if your Zephyr Xstream does not have a mixer section (model Xstream).
The AUDIO menu has items related to the four main mixer inputs; local mix 1; and local mix 2.
You will find many useful items in the pages of this menu.
Don't forget that you can create Location Setups to easily recall the menu selections of the
AUDIO menus. Even if the ISDN line is the same, these Location Setups can be used to program
these parameters (i.e. for different shows or uses in a dedicated situation. See Section 5
(Guided Tour of the Menus) for more on Setups.

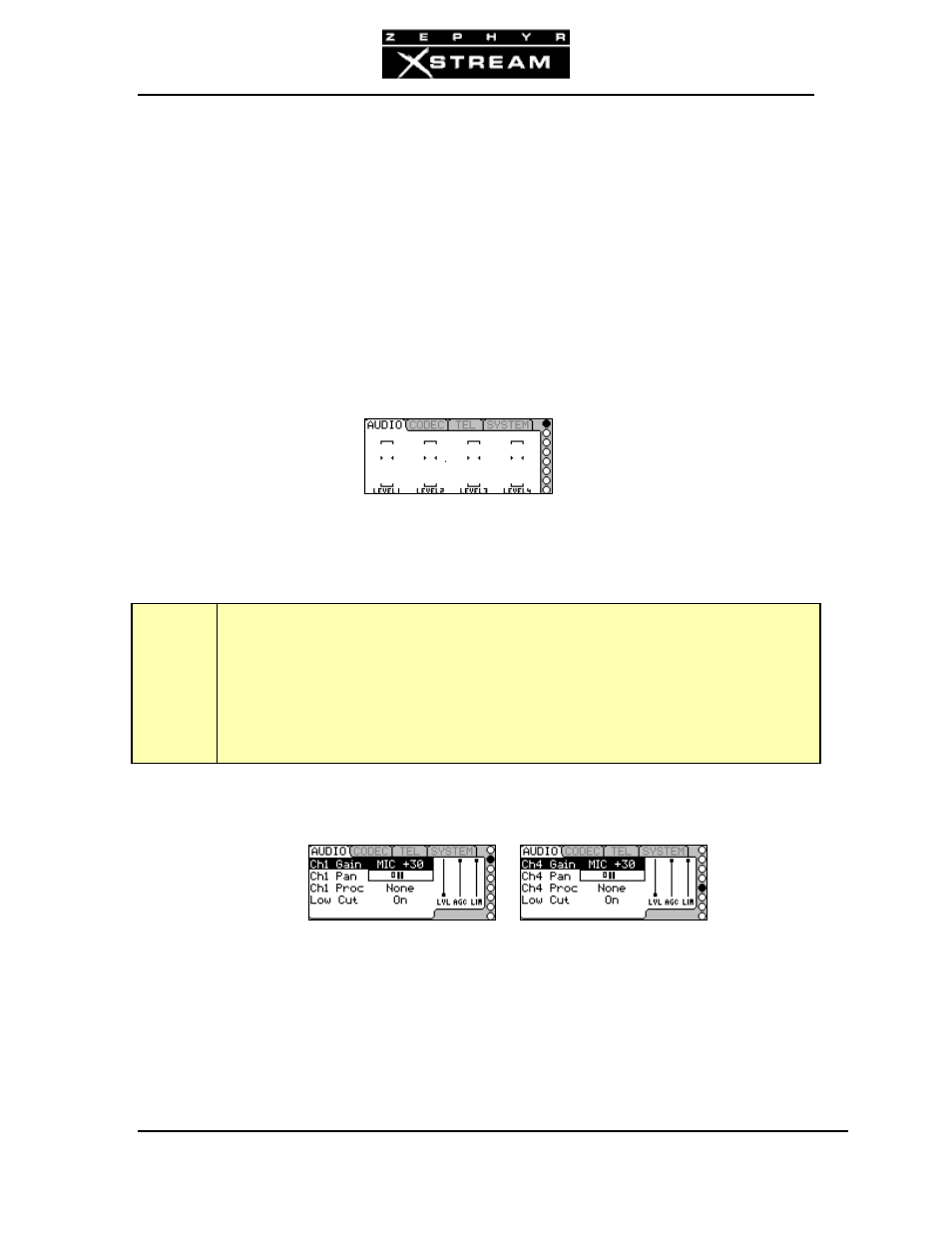

AUDIO - Screen 1 (Status)
The first AUDIO menu has the individual levels for each of the Main Mixer inputs. These levels
are post fader and therefore can be used to view relative levels of each input. Clip indicators for
each input are also provided.
h
HOT TIP!
The clip indicators should display very rarely, if ever. If you see the clip indicator, you should
change the CHx Gain setting for the input that is clipping. This is set in screens 2 through 5
for Inputs 1 through 4, respectively (see below).
AUDIO - Screens 2 - 5
…
The second, third, fourth and fifth AUDIO menus allows adjustment of parameters for Main
Mixer inputs 1‐4, respectively. These screens are identical and have the following information:
Ch “x” Gain
This menu selection allows you to select from four different gain settings (2 mic. and 2 line) for
Main Mixer input x. The options for this setting are:
MIC +44: ‐55 dBu (nom)
