USER’S MANUAL
Section 11: THE WORKS – Detailed Menu Reference 201
B:
This option routes the outgoing B channel audio to both sides of the Local Mix.
Note that the "A" or "B" options allow a single outbound signal to be output on
both channels of the Local Mix.
Mono A + B:
This option sums (i.e. mixes) the incoming A & B audio channels and routes this
to both sides of the Local Mix
Mon “x” Xmt Pan
This control determines the ratio of the amount of the audio fed to the A (Left) and B (Right)
channels of the Local Mix.

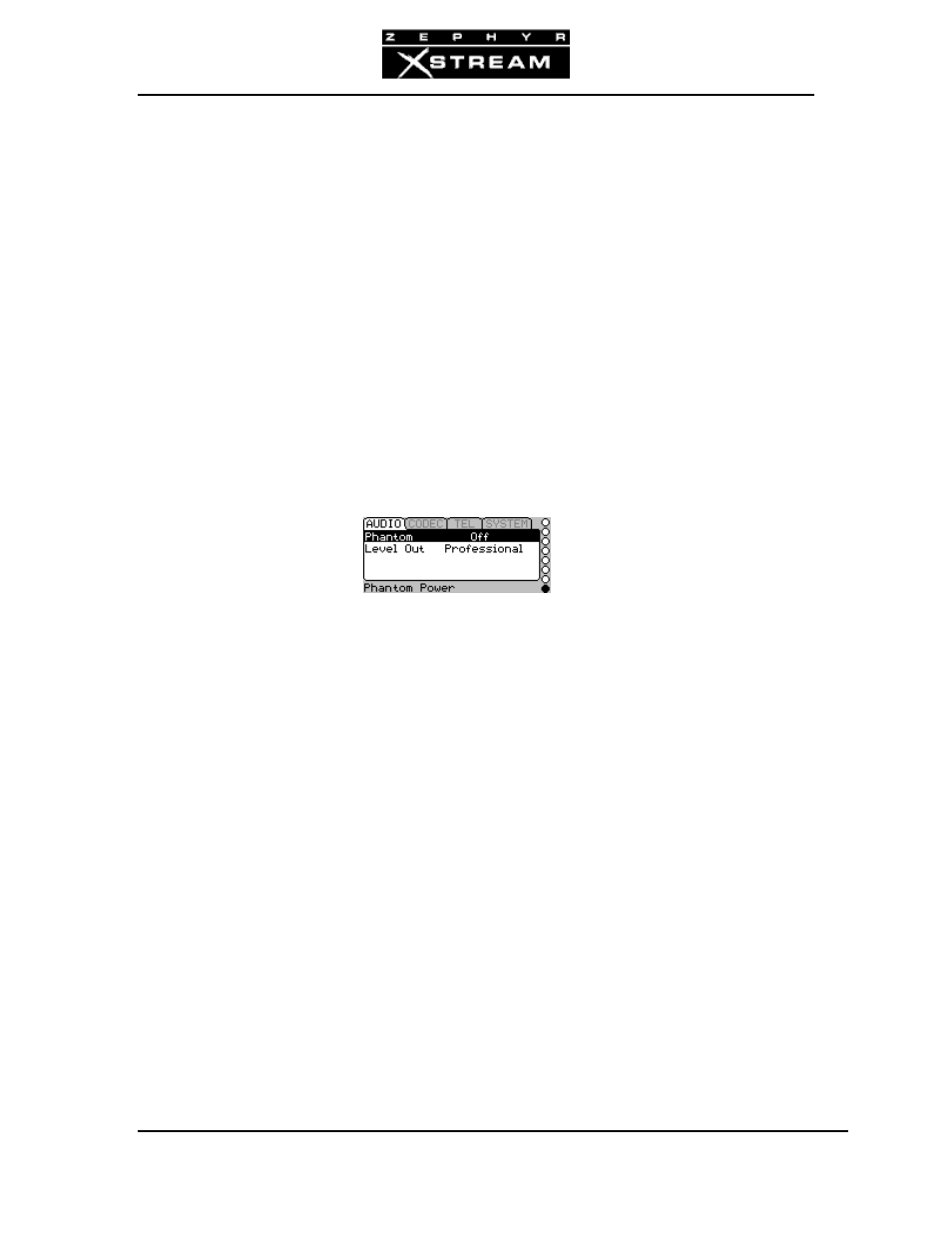

AUDIO - Menu 8
This menu has three options:
Phantom
This option allows you to disable (Off) or enable (On) phantom power for inputs 1 & 2. Phantom
power provides a full 48 volts, and is fed to both inputs 1 &2 when enabled.
Level Out: (Professional; Consumer)
This determines the nominal output level as follows:
Professional:
+4 dBu (nominal). Clip point is +22 dBu when used with balanced sources.
Consumer:
‐10 dBu (nominal). Clip point is +8 dBu.
Assignment
This setting this to Locked locks the input assignments (A/B select) and monitor
assignments (Send/Receive select) to their current settings.
