Appendix E - IR-IP Interface Module HCD-E1 Installation & Operation Manual
E-2 Physical Descriptionr

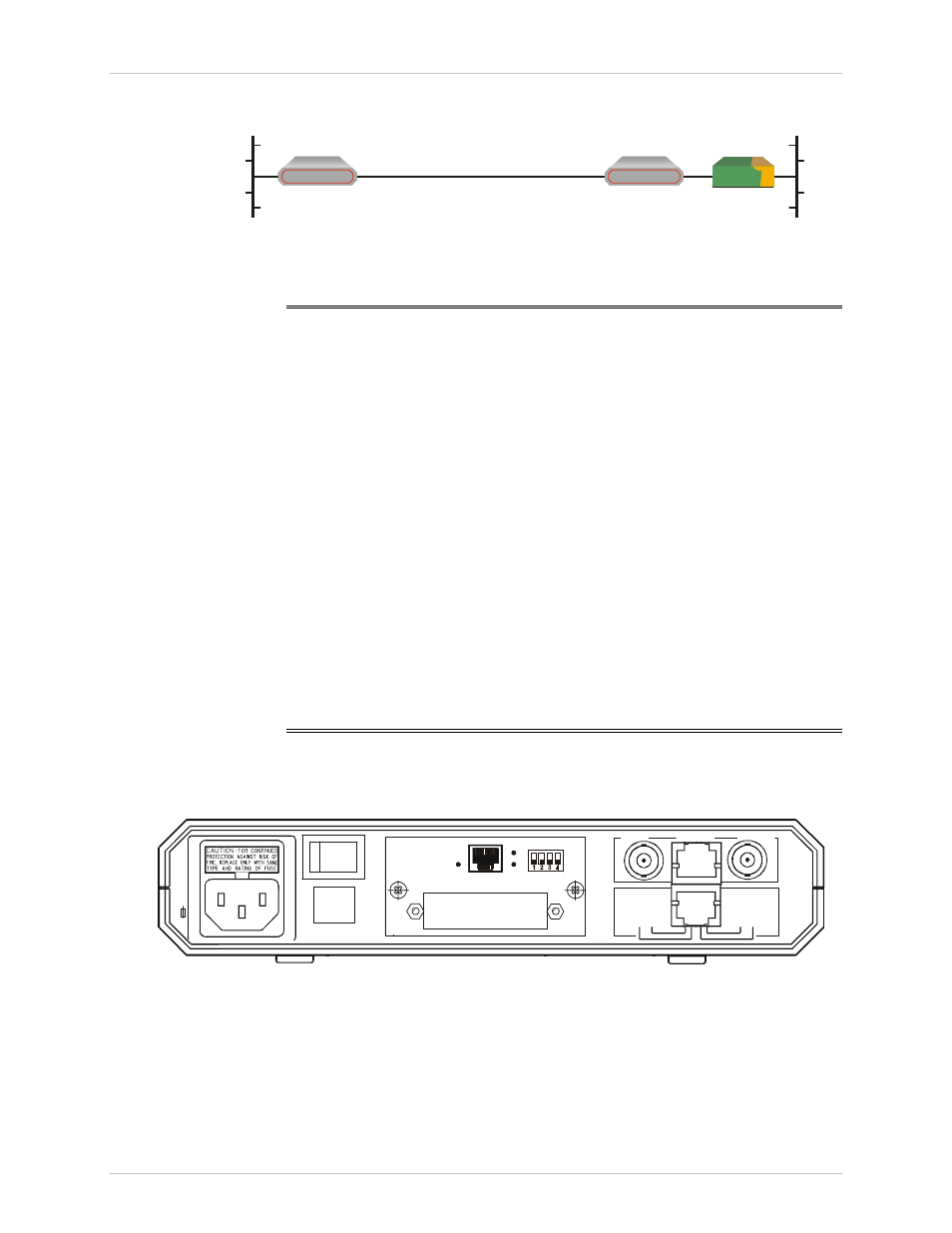

Application Figure E-1 shows a typical application of HCD-E1 with the IR-IP module.
Router HCD-E1
with IR-IP
HCD-E1
with V.35 Interface
Router
Figure E-1 Typical Application of HCD-E1 with IR-IP Module
E.2 Technical Specifications
Router LAN IP Net Up to 256 hosts on LAN IP net
Filtering and Forwarding 30 kbps / 35 kbps
Buffer 256 frames (maximum size – 1534 bytes)
Delay 1 frame
LAN Standard Conforms to IEEE 802.3/Ethernet v2
Data Rate 10 Mbps (20 Mbps 10BaseT in full duplex
topology)
Connector 10BaseT (UTP): Shielded RJ-45
WAN Protocols • PPP (PAP/CHAP)
• Frame Relay (RFC 1490)
• HDLC
E.3 Physical Descriptionr
Figure E-2 shows the rear panel of HCD-E1, equipped with IR-IP module.
ALM RLY
TX IN SUB E1 RX OUT
NETWORK
LINE A
1 2
HDSL
LINE B
4 5
P
O
W
E
R
CHANNEL
CH.1
CH.2
10BASE-T
ERR
INT
ACT
CH.1
~
100
-240
V
A
C
0.
5A
T
2
5
0V
Figure E-2 Rear Panel of HCD-E1 with IR-IP Module
