Appendix D - IR-ETH/Q Interface Module HCD-E1 Installation & Operation Manual
D-2 Technical Specifications
D.2 IR-ETH/Q Connector
Figure D-2 shows the rear panel of HCD-E1, equipped with IR-ETH/Q
module. Table D-1 lists the module RJ-45 connector pinout.
ALM RLY
TX IN SUB E1 RX OUT
NETWORK
LINE A
1 2
HDSL
LINE B
4 5
P
O
W
E
R
CHANNEL
CH.1
CH.2
10BASE-T
ERR
INT
ACT
CH.1
~
100
-240
V
A
C
0.
5A
T
2
5
0V

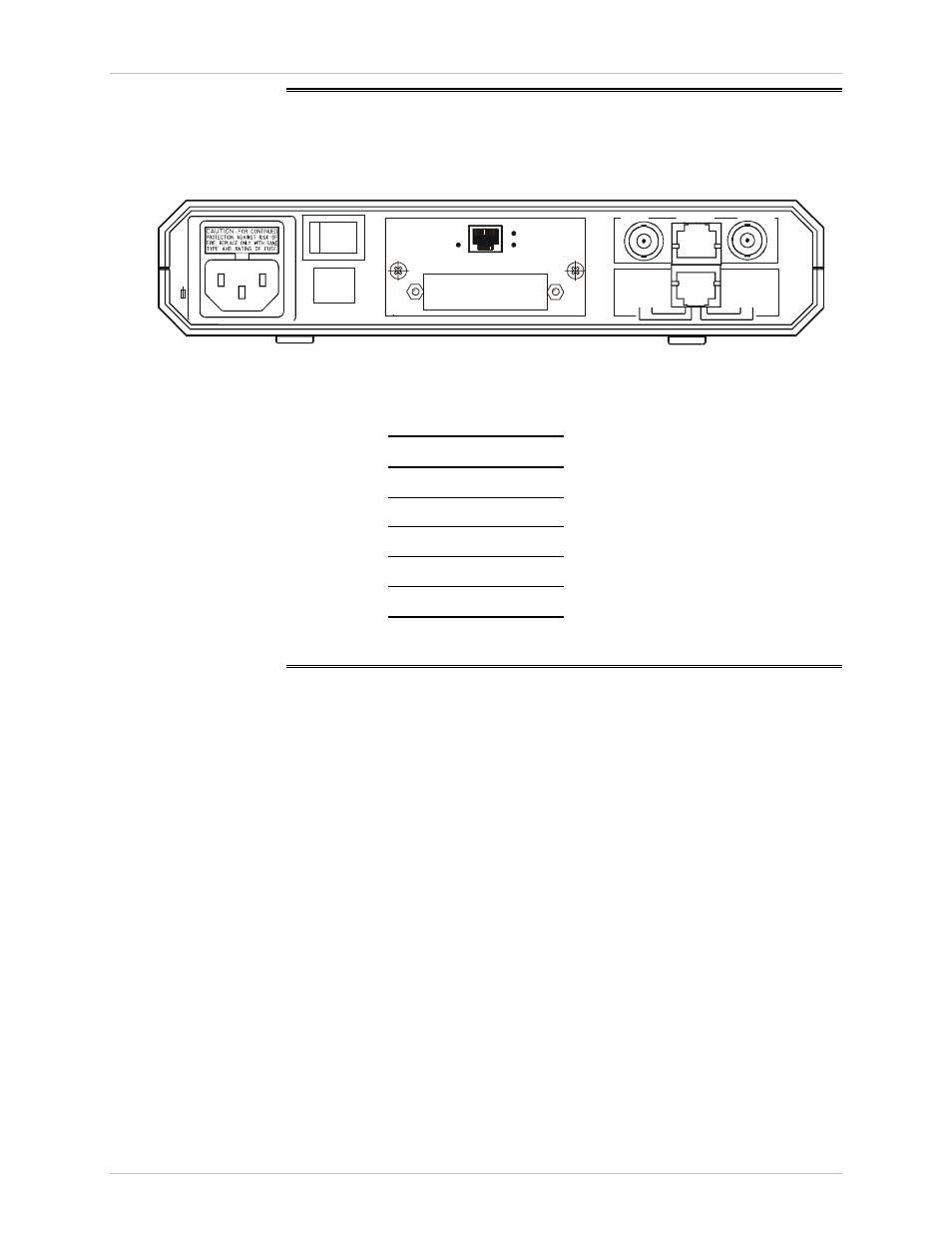

Figure D-2 Rear Panel of HCD-E1 with IR-ETH/Q Module
Table D-1 IR-ETH/Q Connector Pinout
Pin Signal
3 RCV (+)
6 RCV (-)
1 XMT (+)
2 XMT (-)
– GND
D.3 Technical Specifications
General LAN Table 5,000 addresses
Buffer 200 kbytes
LAN Standard Conforms to IEEE 802.3/Ethernet and
supports IEEE 802.1/Q frames
Data Rate 10 Mbps (20 Mbps 10BaseT FDX)
Connectors 10BaseT (UTP): Shielded RJ-45
WAN Protocol HDLC
Data Rate According to the modem transmission rate
