4200-A2-GB20-00 August 2002 1-1
1
Introduction to the Hotwire 4200
GranDSLAM
Overview
The GranDSLAM™ 4200 ATM Stackable DSLAM is a stackable DSLAM designed
for installation in the Central Office (CO) environment or in a standalone
configuration for small deployments. It is available with or without an integrated
POTS splitter and is interoperable with the Hotwire 6390 ReachDSL modem.
The GranDSLAM 4200 provides 24 ports for connection to an ATM network.
Multiple uplink options are available, including T1 and E1. A user interface is
provided via a Transaction Language No. 1 (TL1) Command Line Interface (CLI) or
the unit may be connected to a network management system such as the
Paradyne GrandVIEW™ Element Management System (EMS).

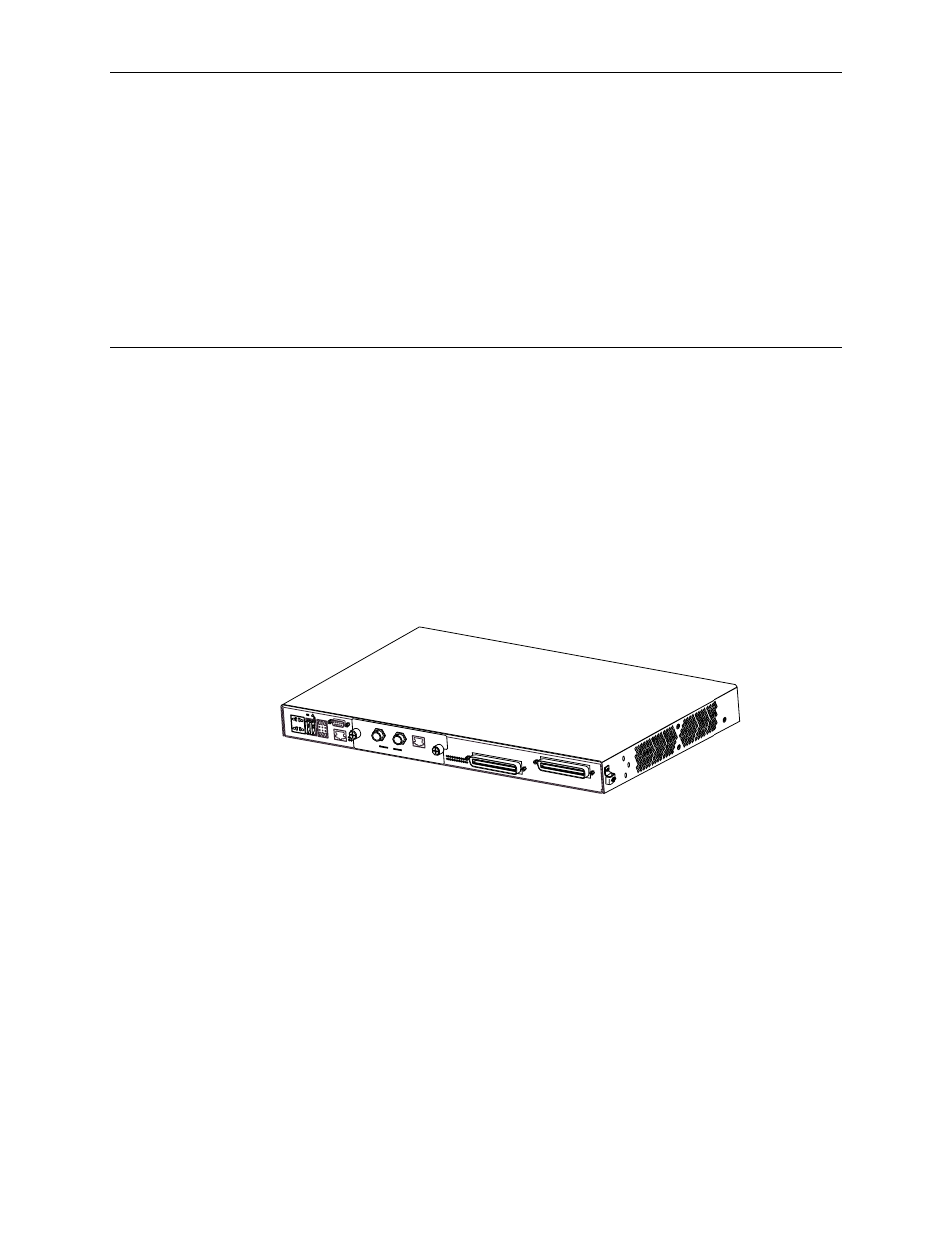

Figure 1-1. GranDSLAM 4200 ATM Stackable DSLAM
02-17253a
1 12
13
24
DSL POR TS 1-24
POTS 1-24
4 8
16 20
POWER A
ALARM
RTN -48V DC
BITS MGMT
CONSOLE
S TAT U S
UPLINK
ALRM TEST
B
A
3.5 A 60
B
E1 MODULE 4202 TX
RX
100/120 Ω
75 Ω
