Introduction

DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4

8-2

Freescale Semiconductor

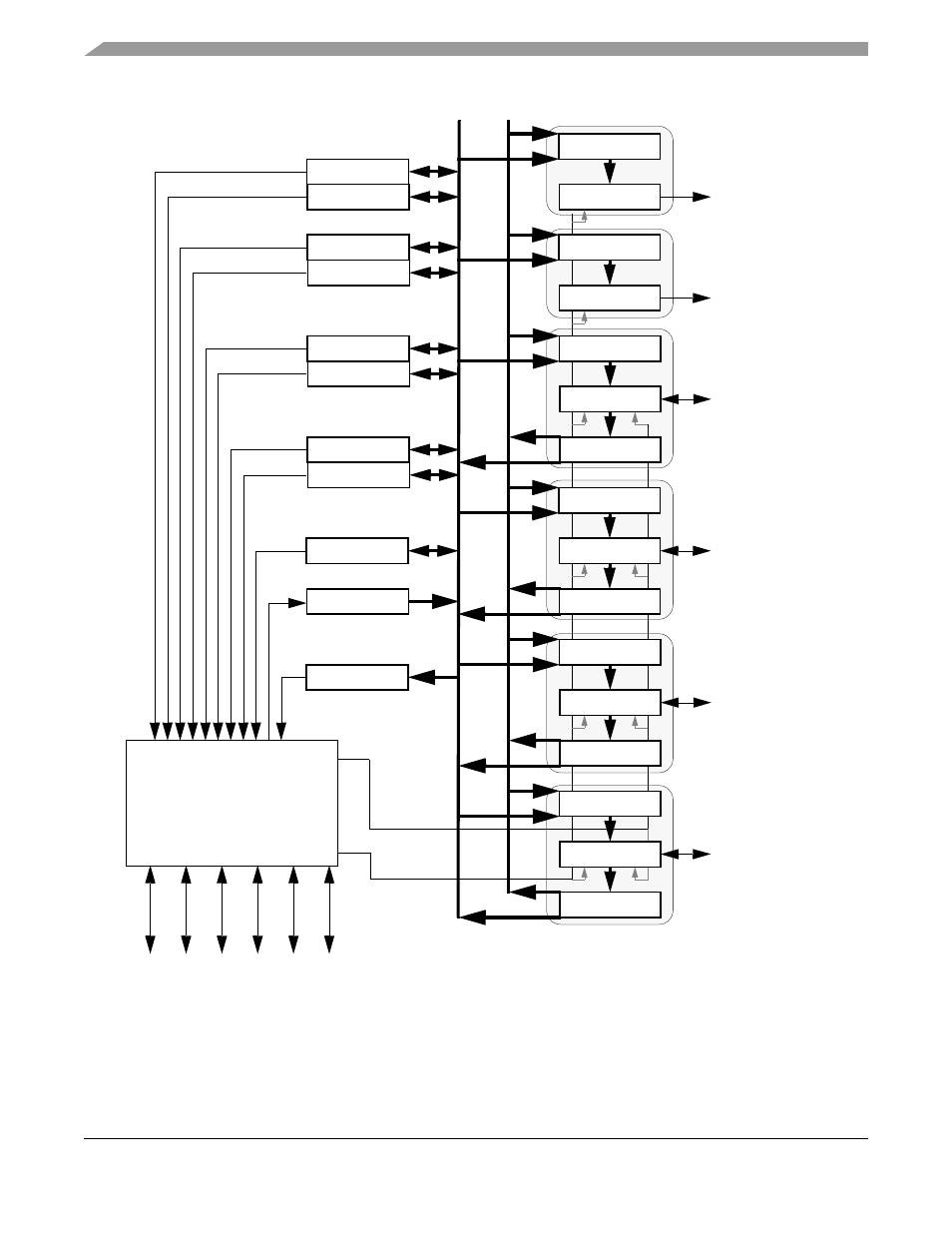

Figure 8-1 ESAI Block Diagram

SDO1 [PC10]

SDO0 [PC11]

Shift Register

RX0

TX5

SDO5/SDI0 [PC6]

Shift Register

RX1

TX4

SDO4/SDI1 [PC7]

Shift Register

RX2

TX3

SDO3/SDI2 [PC8]

Shift Register

RX3

TX2

SDO2/SDI3 [PC9]

Shift Register

TX1

Shift Register

TX0

DDB

GDB

RSMA

RSMB

TSMA

TSMB

RCCR

RCR

TCCR

TCR

SAICR

SAISR

TSR

TCLK

RCLK

[PC3] SC

[PC4]

FST

[PC5] HC

[PC0] SC

[PC1]

FSR

[PC2] HC

Clock / Frame Sync

Generators

and

Control Logic
