IntelliKnight 5820XL Installation Manual
4-18
151209
4.7
5824 Serial/Parallel Interface Module
Installation
The 5824 serial/parallel interface module allows you to connect a printer to the panel,
so you can print a real-time log of system events, a report of detector status, and
event history. Instructions for installing the 5824 appear below. The 5824 is for
ancillary use only.
5824 installation involves the following steps:
1. Make sure power is off at the panel.
2. Connect the 5824 to the panel as shown in Figure 4-17.
Note: Two 5824s per panel maximum.
3. Use the DIP switches on the back of the 5824 board to assign an SBUS ID# to the
4. Configure the 5824 device through programming. See Section 4.7.1.
5. Connect a printer to the 5824 as shown in Figure 4-18.

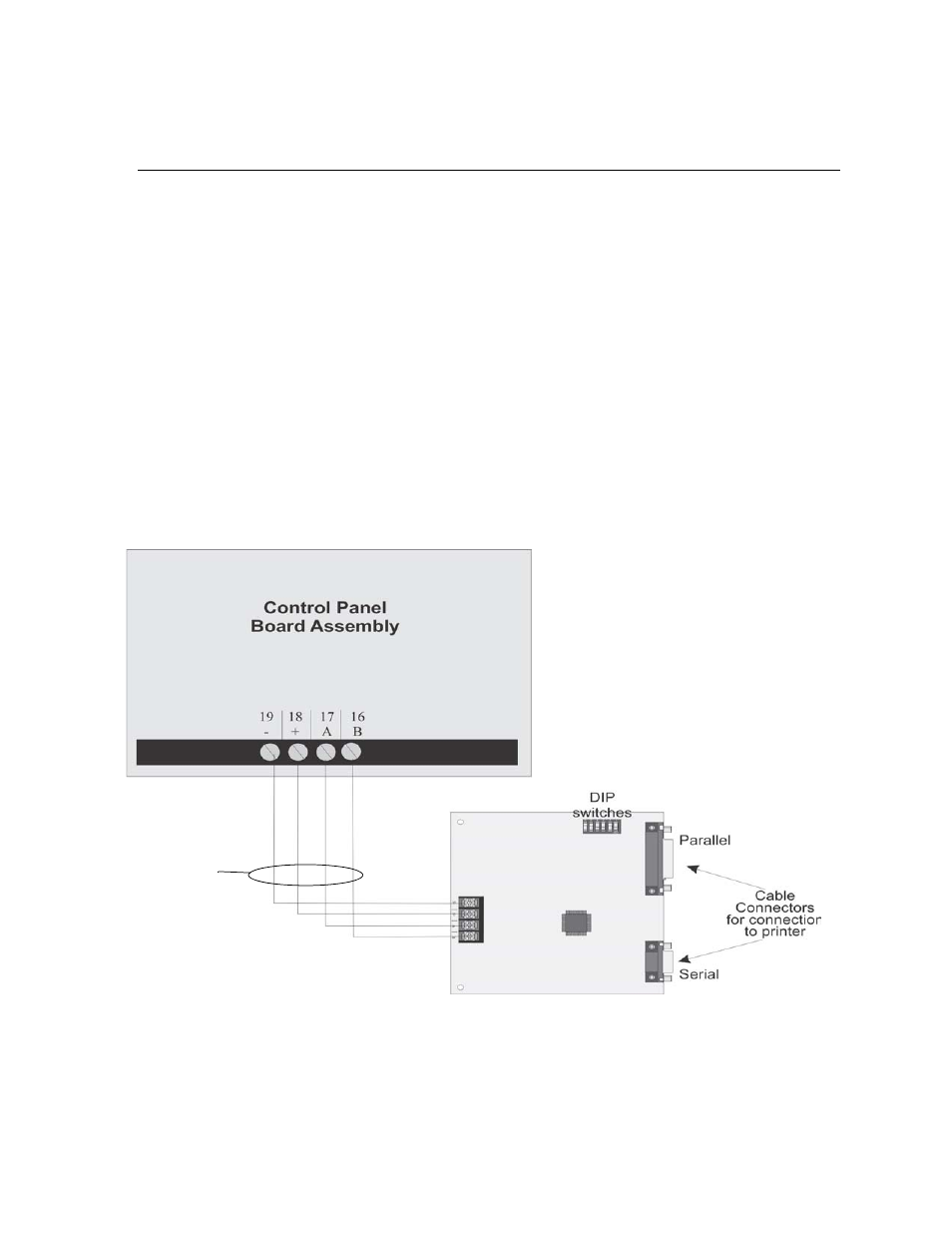

Figure 4-17 5824 Connection to the Panel
Supervised
Power Limited
