Connecting cable, 2 connecting cable – HEIDENHAIN TNC 335 Technical Manual User Manual
Page 77
3-54
TNC 360
12 Machine Control Panel
8/95
12.2 Connecting cable
Please use only HEIDENHAIN connecting cables.
HEIDENHAIN recommends that a 37-pin D-subminiature connector should be mounted on the
machine control panel. The machine control panel can be connected to the logic unit with the
standard HEIDENHAIN connecting cable Id.-Nr. 263 954 ..

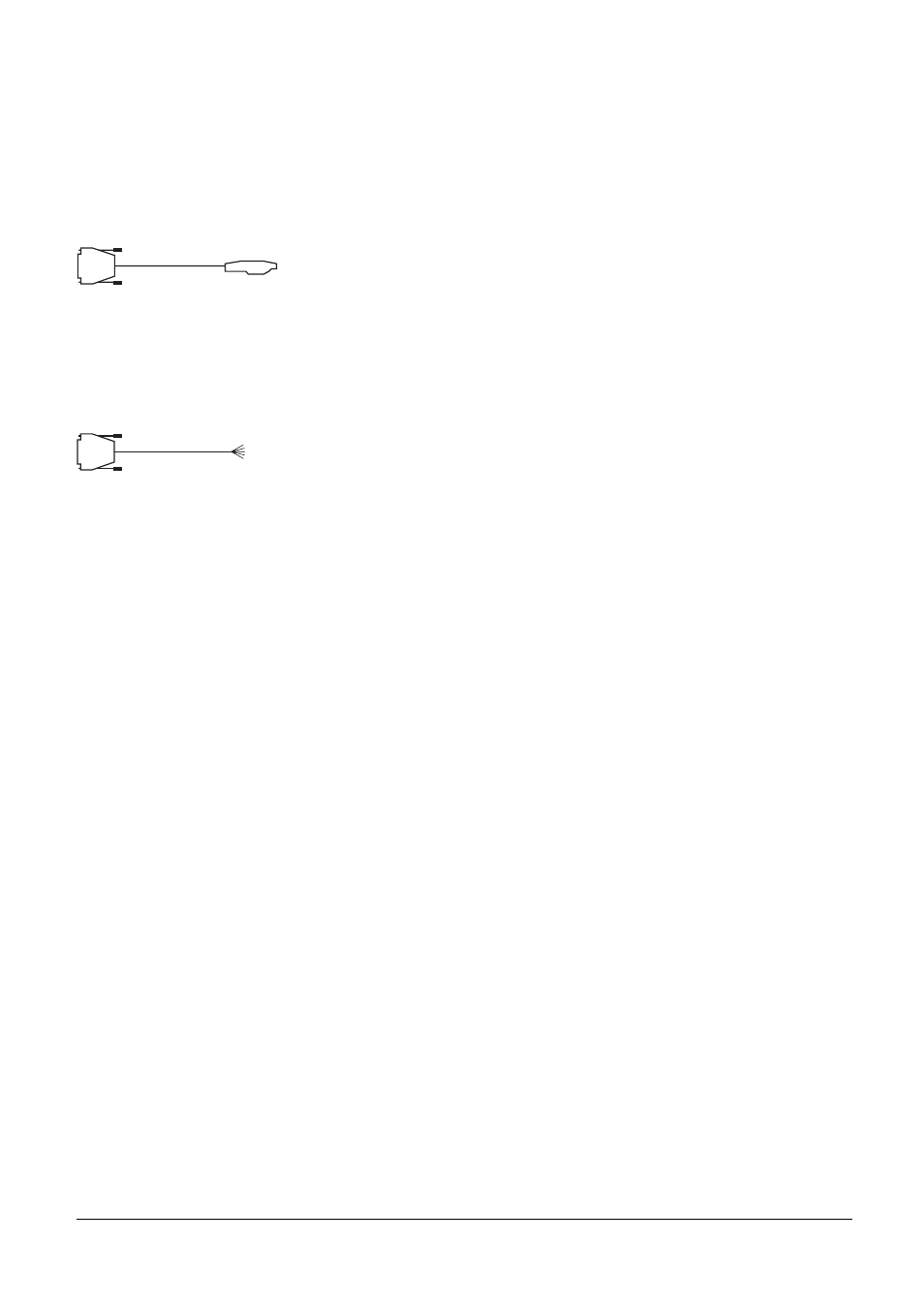

max. 25 m
Id.-Nr. 263 954..
If the machine control panel does not have a 37-pin D-subminiature connector, the HEIDENHAIN
connecting cable Id.-Nr. 244 005 .. may be used.
max. 25 m
Id.-Nr. 244 005..
For the assignments of the multi-core conductors see Section "PLC inputs/outputs".
If for any reason the manufacturers of the machine have to produce their own cable, a 37-pin
connector is available from HEIDENHAIN (Id.-Nr. 243 937 ZY).
