HEIDENHAIN TNC 335 Technical Manual - Manual (Page 60)

3-34
TNC 360 10 Handwheel Input 8/95
Id.-Nr. 249 814 ..
1
2
3
4
5
6
7
8
9 1
2
3
4
5
6
7
8
9
•
1
2
3
4
5
6
7
8
9 1
2
3
4
5
6
7
8
9
•
WHITE
BROWN
YELLOW
GREEN
•
1
2
3
4
5
6
WHITE
BROWN
YELLOW
GREEN
1
2
3
4
5
6
2
1
BLUE
BLUE
EMERGENCY OFF
max. 24V
BLUE
BLUE
GREEN
YELLOW
BROWN
WHITE

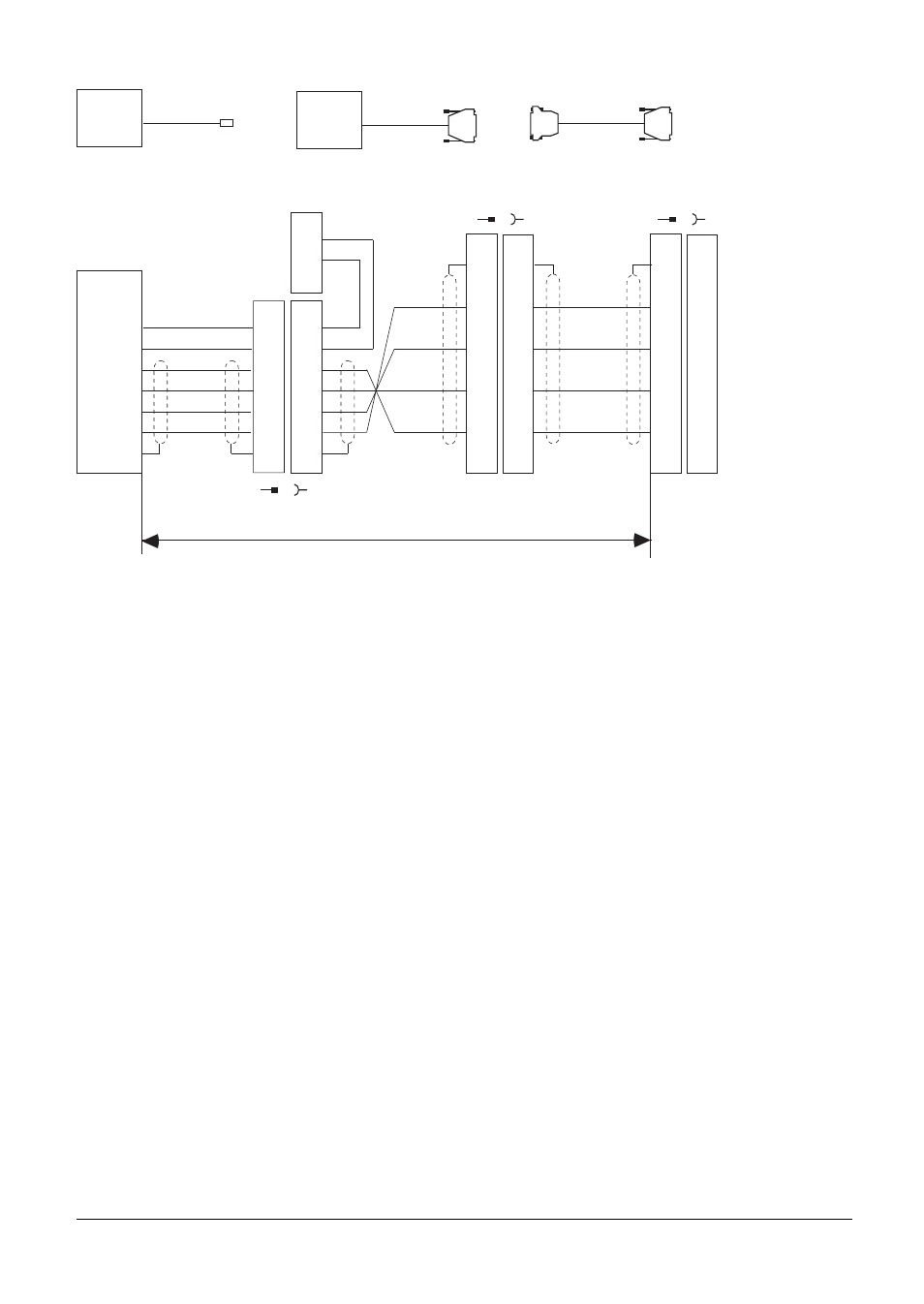

HR 330
max. 49 m
Electronic
handwheel LE
X11
Id.-Nr. 249 889 ..
max. 48 m
Adapter
HR 330
HR
HR 330.001 max. 6 m
HR 330 max. 2.2 m
max. 50 m
0V
+12V
±
0.6V(U
V
)
DTR
RXD
Id.-Nr. 251 534 ..
• • •
The adapter includes a cable with a 9-pin connector for the logic unit, and two terminals for
connecting the 24 V of the EMERGENCY STOP control circuit (max. load 1.2 A).
See also section "Mounting dimensions".
10.3 Integral handwheel HR 130
The HR 130 is the integral version of the HR 330, without the keys for the axes, rapid traverse etc.
It may be attached directly to the logic unit, or via an extension cable (Id.-Nr. 249 814 ..).
The HR 130 (Id.-Nr. 254 040 ..) is available in several versions (standard cable length 1 m):
– Small knob; axial cable exit: version 01
– Small knob; radial cable exit: version 02
– Large knob; axial cable exit: version 03
– Large knob; radial cable exit: version 04
– Ergonomic knob; radial cable exit: version 05
Mounting dimension drawings are provided at the end of this chapter.
